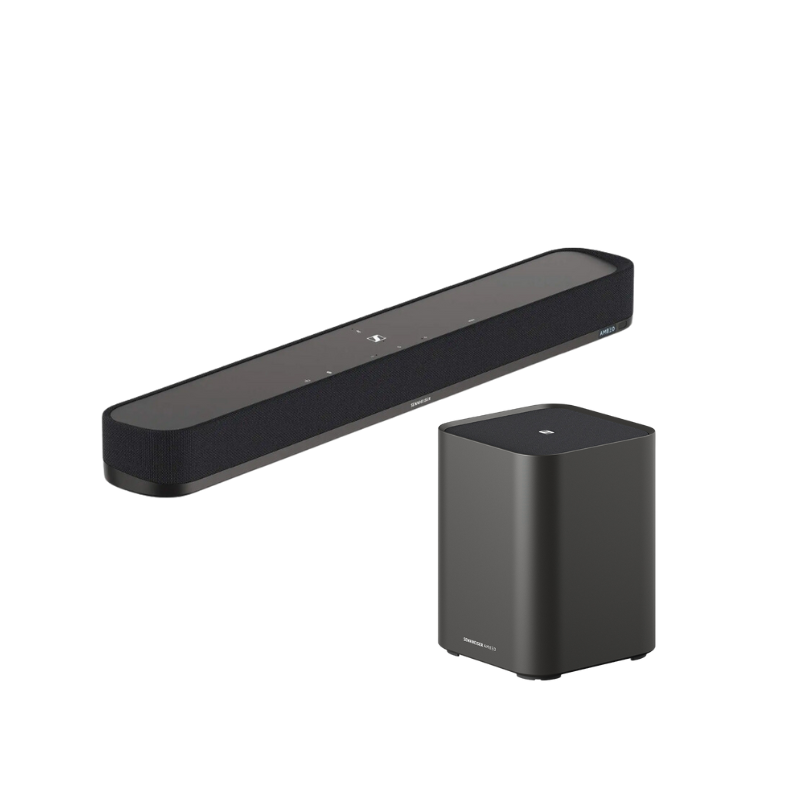

Sennheiser AMBEO mini Soundbar:
The world's most immersive sound from one compact device
SPECIFICATIONS:
Amplifier
6x class D amplifiers
Total amplification power
250W (RMS)
Total number of speakers
6
Audio processing
Quad Core 1.8GhZ SOC
Fullrange
4x 1.6” (40mm) Cellulose Cone Fullrange Driver
Frequency response
43Hz – 20 Khz (-3dB)
Woofers
2x 4" Cellulose Cone Driver
Connectivity
Chromecast built-in, uPnP, AirPlay 2, Spotify connect, Tidal connect
HDMI TV (eARC) OUT
1x HDMI eARC (HDMI 2.1)
USB
1x USB socket (type A), for power supply for accessories (external devices): 5 V ⎓, 1 A;
Microphone input for room calibration
4x built-in far field highprecision microphones
Dimensions (with feet)
Approx. 70 x 10 x 6,5
Dimensions (without feet)
Approx. 70 x 10 x 6,5
Weight
Approx. 3,3 kg
Network Transmission system
2 x 2 MIMO
Transmission frequency (country-specific)
2,400 MHz to 2,483.5 MHz 5,170 MHz to 5,835 MHz
Network Modulation 2.4 GHz band
CCK, DQPSK, DBPSK for DSSS, 64QAM, 16QAM, QPSK, BPSK for OFDM
Network Modulation 5 GHz band
1024-QAM, 256-QAM, 64QAM, 16QAM, QPSK, BPSK
Network Output power
100 mW (max)
WiFi standard
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth version
5.0 Classic/BLE
Bluetooth Wireless transmission to Sub
5.2 Bluetooth Low Energy
Bluetooth transmission frequency
2,400 MHz to 2,483.5 MHz
Bluetooth Modulation
GFSK, p/4 DQPSK, 8DPSK
Bluetooth profiles
A2DP, AVRCP, GATT
Bluetooth output power
BT SOC: 10mW (max) BT Sub: 10mW (max)
Bluetooth Codec
BT SOC: AAC, SBCBT Sub: LC3
Voltage range
100–240V ~50/60Hz
Max ampere
Max. 2.5A
Standby
Max. 1.9W
Temperature range (operation)
0 °C to +40 °C Storage: -20 °C to +70 °C
Relative humidity
10 to 90 %
Sennheiser AMBEO Sub:
- Amplifier: 1x class D amplifier
- Total audio power: 350W (RMS)
- Audio processing: Dual Core SOC
- Voltage range: 100–240V ~50/60Hz
- Woofers: 1x Long throw 8" Cellulose Cone Driver
- Frequency response: 27Hz – 80Hz
- Audio input: 1x Mono RCA, max. 2 V
- Temperature range (operation): 0 °C to +40 °C
- Relative humidity (operation): 10 to 90%
- Dimensions (with feet): Approx. 27.4 x 36.9 x 27.4 cm
- Dimensions (without feet): Approx. 27.4 x 35.7 x 27.4 cm
- Weight: 8.2 kg
- Transmission frequency: 2,400 MHz to 2,483.5 MHz
- Bluetooth version: 5.2 Bluetooth Low Energy
- Bluetooth output power: BT Sub: 10mW (max)
- Bluetooth Audio Codec: BT Sub: LC3
