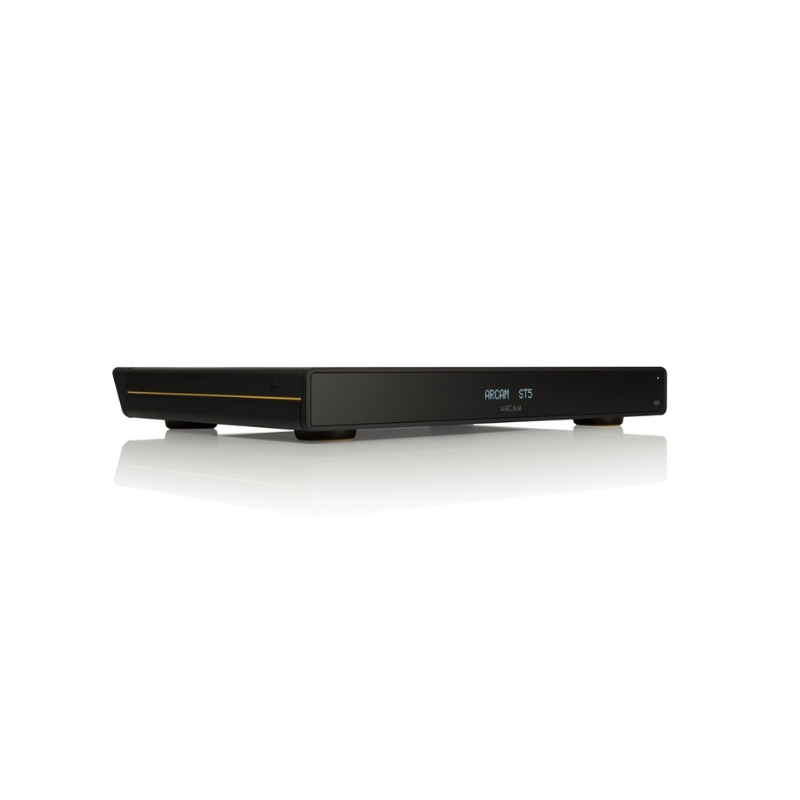

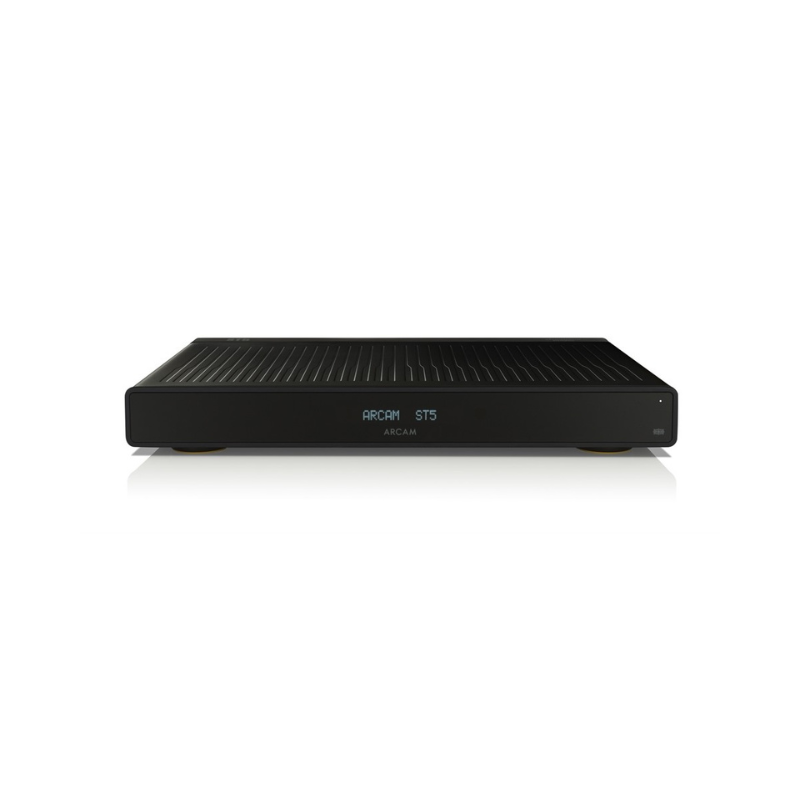

The ARCAM ST5 is the high resolution upgrade for our Radia integrated amplifiers. The slim form factor includes a control link to these amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination offers better sound quality due to the benefits of isolated components with individual power supplies.
The ARCAM ST5 provides an inclusive feature set supporting the majority of smart phones and tables, as well as popular streaming services. Connect the ST5 to your home network with Wi-Fi or Ethernet to enjoy instant playback using Apple Airplay2 or Google Chromecast.
The ST5 will playback music directly from Spotify Connect and Tidal Connect, and for power users, the ST5 is Roon Ready, all with Hi-res and MQA support. All digital audio is output on the analogue outputs using an ESS ES9018 high resolution DAC with time domain jitter elimination for perfect sound, every time.
Type: Streamer / Network Media Player
Supported Hi-res media: FLAC, WAS (LPCM), MQA, AAC, ALAC, AIFF, DSD (128)
Supported Hi-res Bit depth: 16, 24
Supported samples rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Supported media: MP3, MP4, OGG, WMA
Supported Bit depth: 16
Supported samples rates (kHz): 44.1, 48
Gapless Playback: Yes

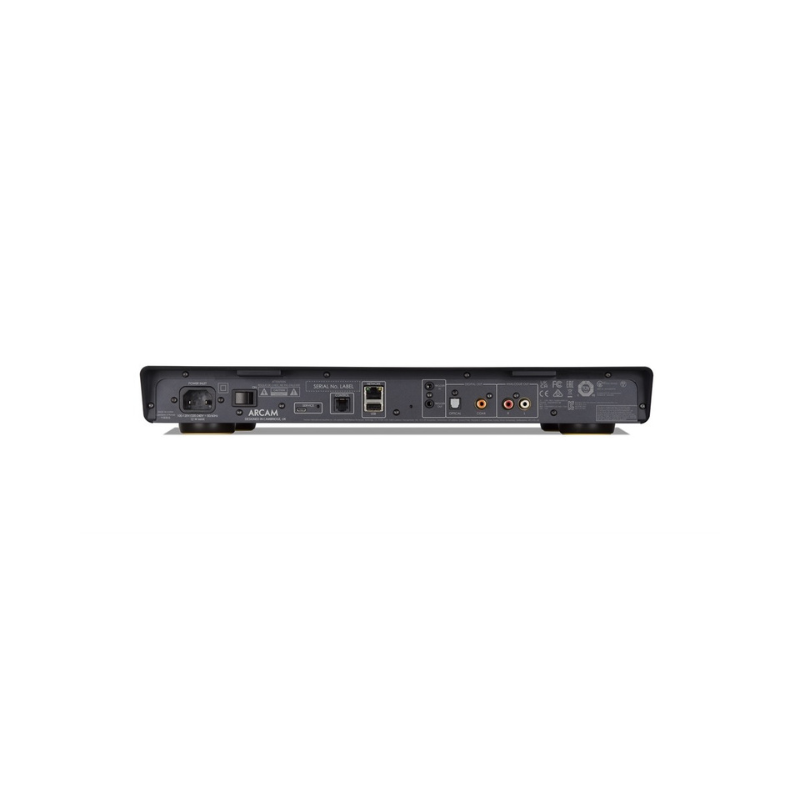

Digital Outputs: 1x Coaxial (RCA), 1x Optical (Toslink)
Analogue Outputs: 1x Stereo (RCA) pair
Frequency response (fi lter 1): 20Hz—20kHz ± 0.05dB
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption 12W
Power consumption (Eco standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 57mm
Weight (net) 3.5 kg
Weight (packed) 5.6 kg
Supplied accessories
Mains lead(s)
Remote control with 2 x AAA batteries
Control Cable
Quick Start Guide
Important Safety Instructions
