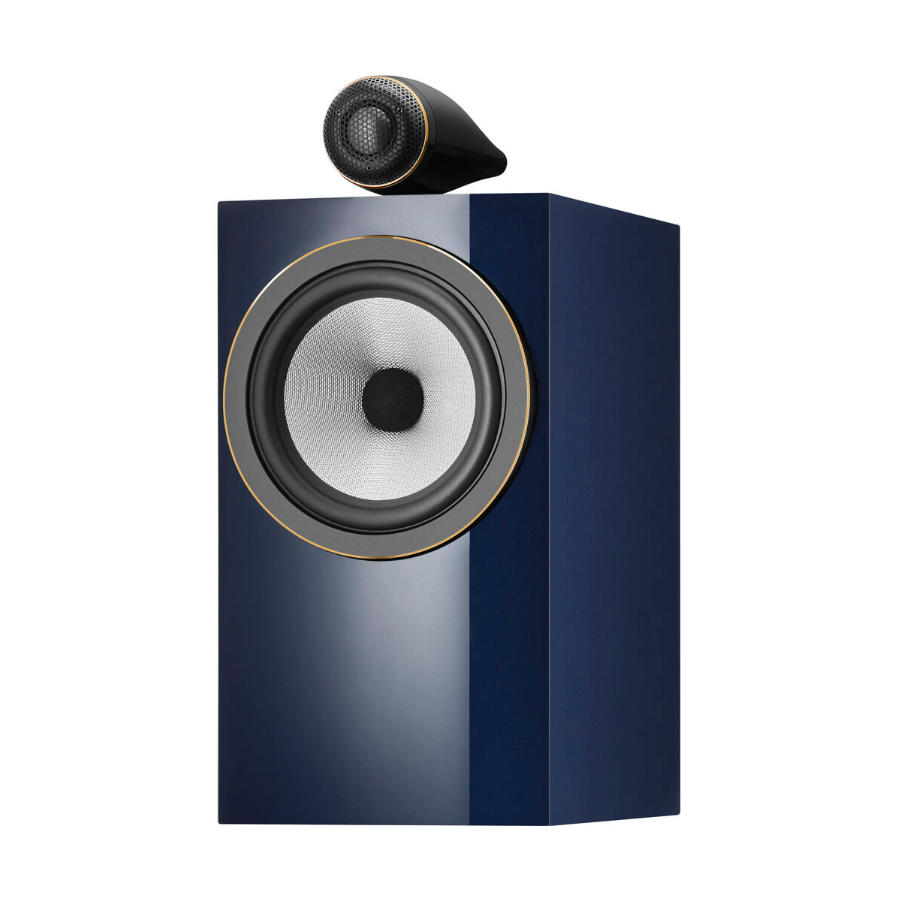

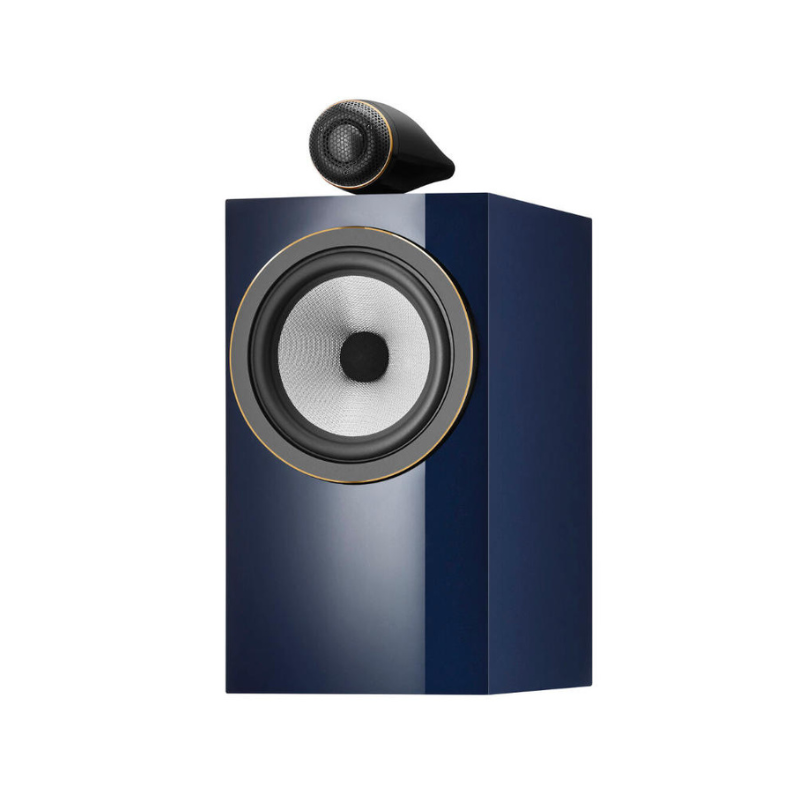

The Bowers & Wilkins B&W 705 S3 Signature is expertly engineered to deliver sonic brilliance in a more compact form.
Crafted. Honed. Perfected.
Featuring optimized technology from our most advanced loudspeakers, as well as our proprietary Continuum mid-bass drive unit and Tweeter-on-Top, the 705 S3 Signature utilizes an upgraded mid-bass motor system, improved Mundorf capacitors, revised speaker terminals, plus a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
FEATURES:

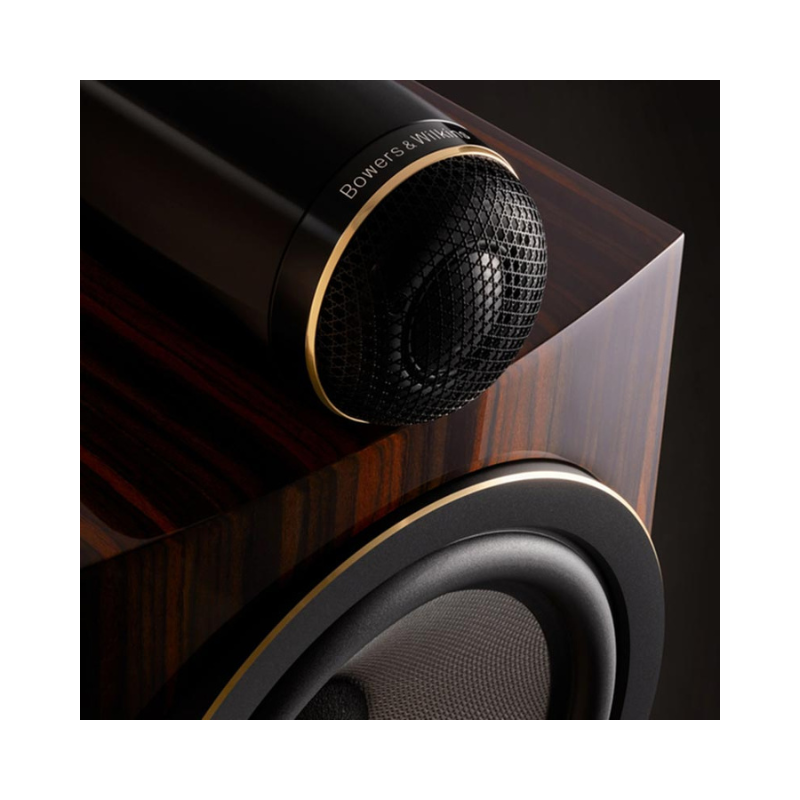

Carbon Dome Tweeter
The Carbon Dome Tweeters in 700 Series Signature models deliver pinpoint imaging accuracy and detail.
Continuum cone
Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum cone.
Upgraded Crossovers
The new 700 Series Signature models use upgraded crossover designs, optimised to perfection by dedicated Bowers & Wilkins engineers.
Specifications
Technical Features:
- Decoupled Carbon Dome tweeter
- Solid Body Tweeter-on-Top
- Continuum cone bass / midrange
- Flowport
Drive Units:
- 1 x 25mm (1in) Decoupled Carbon Dome high-frequency
- 1 x 165mm (6.5in) Continuum cone bass / midrange
Frequency Range:
- -6dB: 45Hz – 33kHz
Frequency Response:
- 50Hz – 28kHz ±3dB
Sensitivity:
- 88dB
Harmonic Distortion:
- 2nd and 3rd harmonics (90dB, 1m on axis):
- <1%: 100Hz – 22kHz
- <0.5%: 150Hz – 20kHz
Nominal Impedance:
- 8 ohm (minimum 3 ohm)
Recommended Amplifier Power:
- 30W-120W into 8 ohm on unclipped programme
