Optimized for perfection

The 801 D4 Signature is an optimized version of our most advanced loudspeaker. It features meticulously evolved technology, carefully crafted design, and unique finishes that culminate in the pinnacle of performance. This is Bowers & Wilkins' flagship loudspeaker perfected.

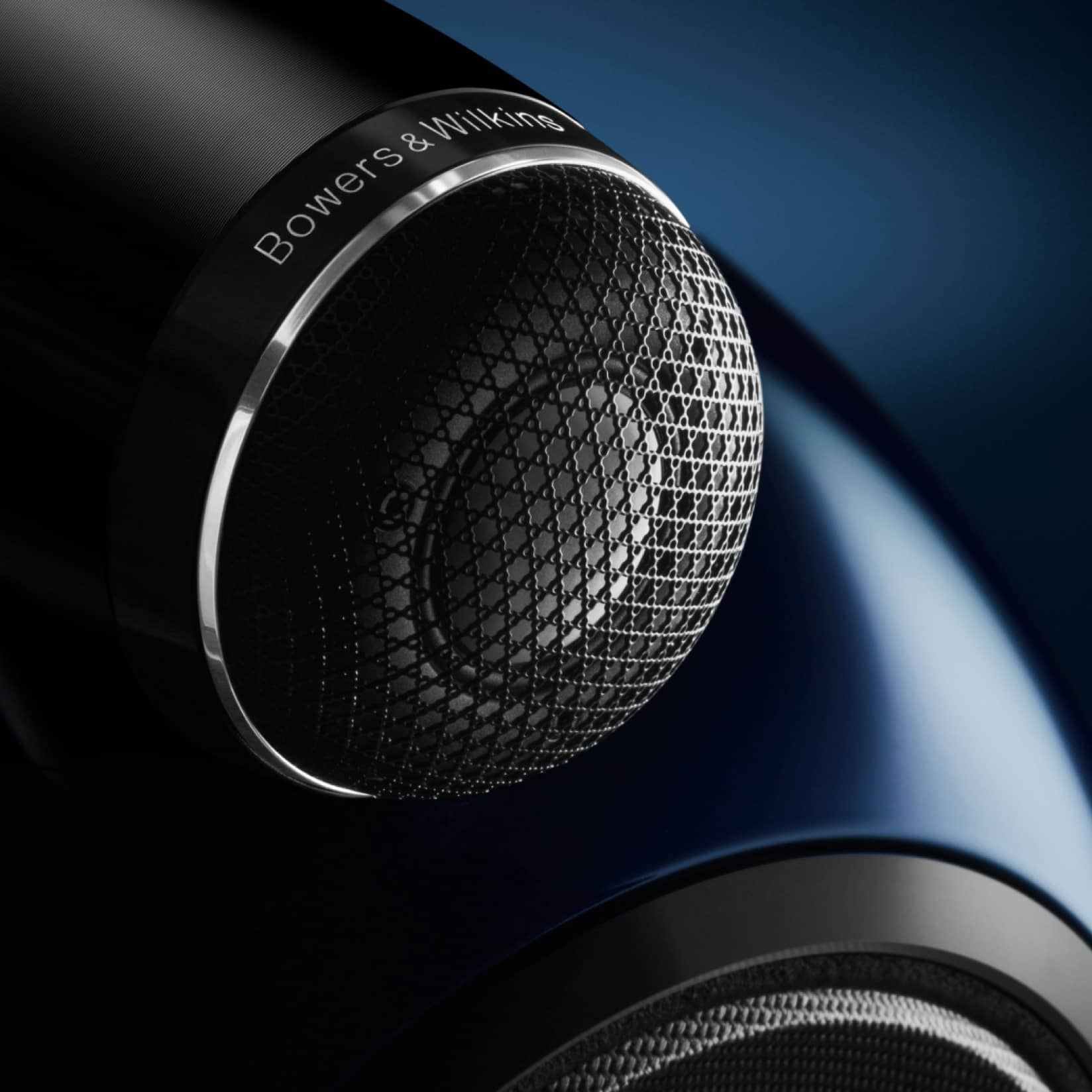

Diamond Dome tweeter

One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after we introduced it, we haven't found a better tweeter dome technology.

Solid Body Tweeter

Our Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies.

Upgraded crossover

Our 801 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Aluminum top-plat

Every new 800 Series Signature model has a significantly upgraded cabinet design with an all-new, optimized aluminum top section for even greater stiffness. The same design also provides a perfect mounting point for Leather by Connolly cabinet detailing, with luxurious full-grain blue leather for our Midnight Blue Metallic models and full-grain black leather for our California Burl Gloss models.

Specifications

Size & Weight
Dimensions (Height x Width x Depth):
Height: 1221 mm (48.1 in)
Width: 451 mm (17.8 in)
Depth: 600 mm (23.6 in)
Net Weight: 100.60 kg (221.8 lb)
Technical Features
Diamond Tweeter: Offers exceptional high-frequency performance.
Solid Body Tweeter-on-Top: Enhances clarity and focus.
Continuum™ Cone FST™ Midrange: Provides a smooth, natural midrange response.
Matrix™: Provides additional internal bracing for improved cabinet rigidity.
Anti-Resonance Plug: Reduces unwanted resonance in the cabinet.
Biomimetic Suspension: Ensures controlled diaphragm movement for superior sound accuracy.
Turbine Head: A design feature for optimum driver positioning.
Aerofoil™ Profile Bass Cones: A unique design for precise bass performance.
Flowport™: Optimizes airflow to reduce port noise and improve bass response.
Description
Type: 3-way vented-box system.
Drive Units
High-Frequency Driver: 1 x ø25mm (1in) Diamond Dome Tweeter.
Midrange Driver: 1 x ø150mm (6in) Continuum™ cone FST™ midrange.
Bass Drivers: 2 x ø250mm (10in) Aerofoil™ Profile bass cones.
Frequency Response
-6dB: 13Hz - 35kHz.
Nominal Impedance: 8Ω (minimum 3.0Ω).
Sensitivity: 90dB SPL (2.83Vrms, 1m).
Frequency Range: 15Hz - 28kHz ±3dB.
Performance
Harmonic Distortion:
<1% 30Hz – 20kHz.
<0.3% 100Hz – 20kHz.
Recommended Amplifier Power: 50W - 1,000W into 8Ω on unclipped programme.
Max Recommended Cable Impedance: 0.1Ω.
Finishes
Cabinet Finishes:

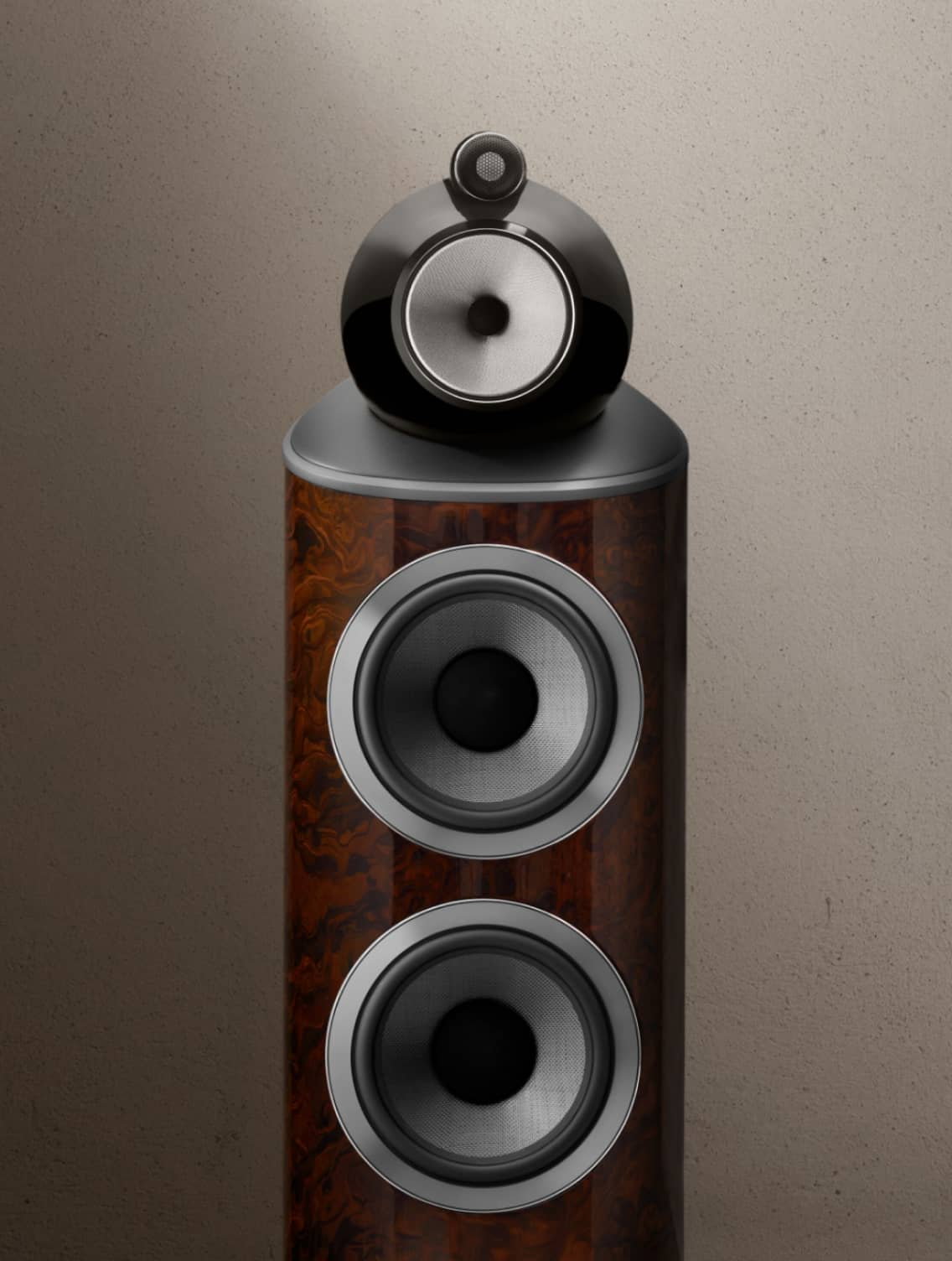

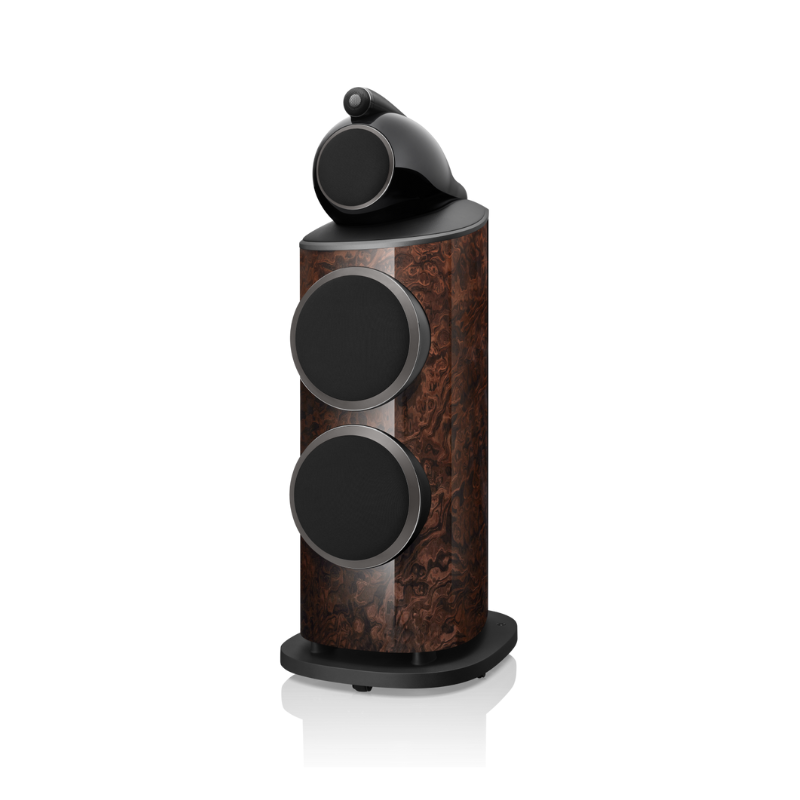

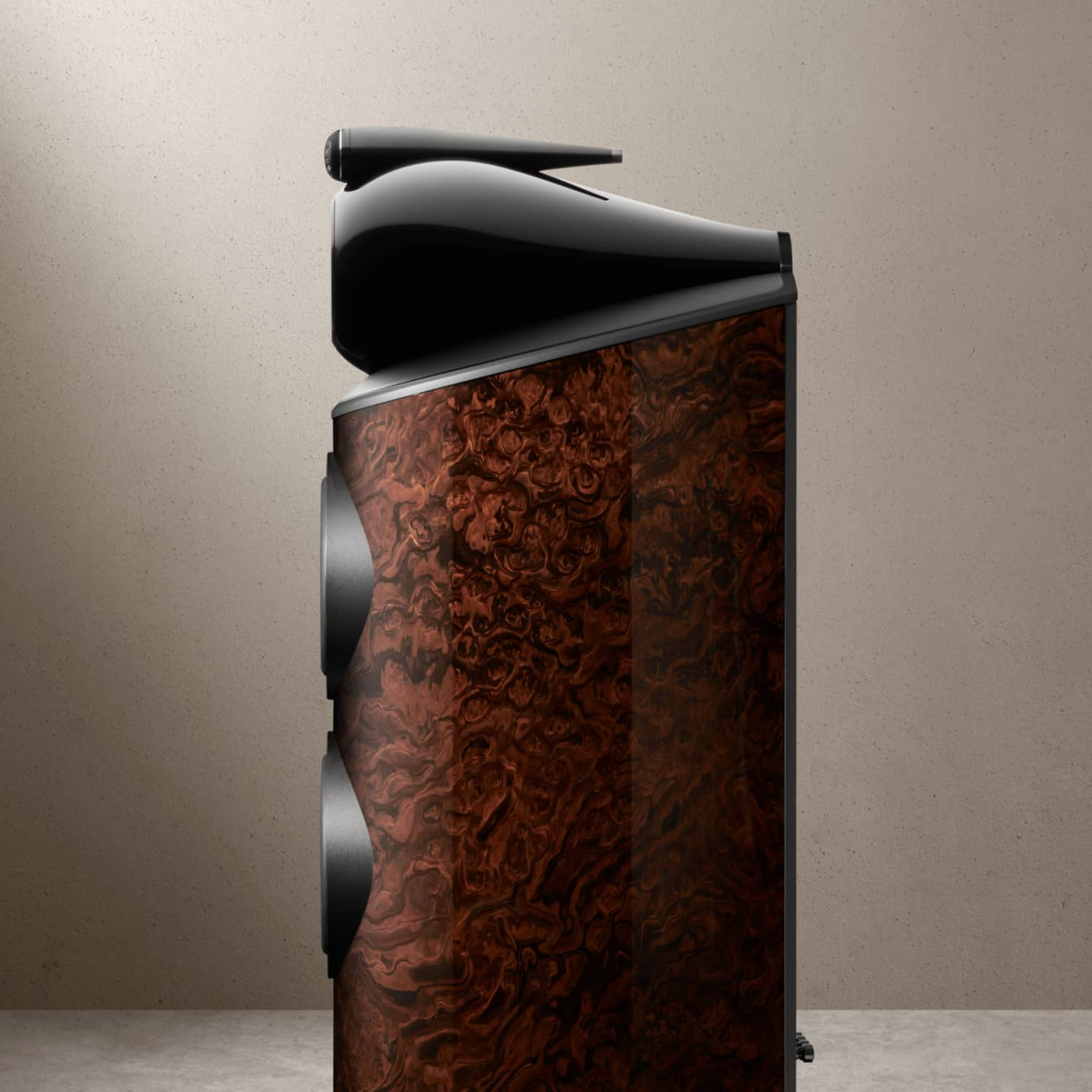

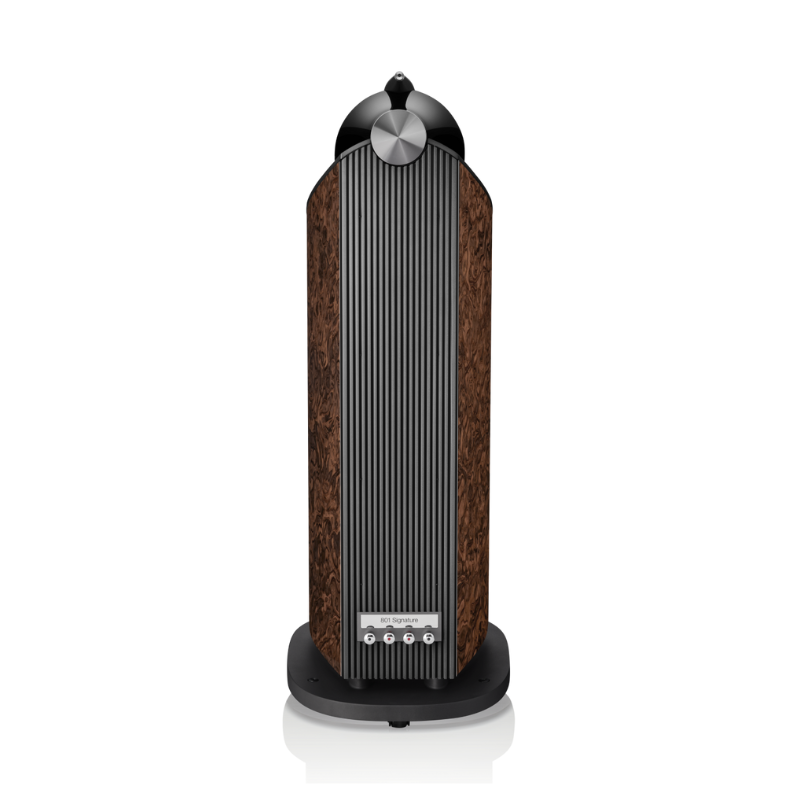

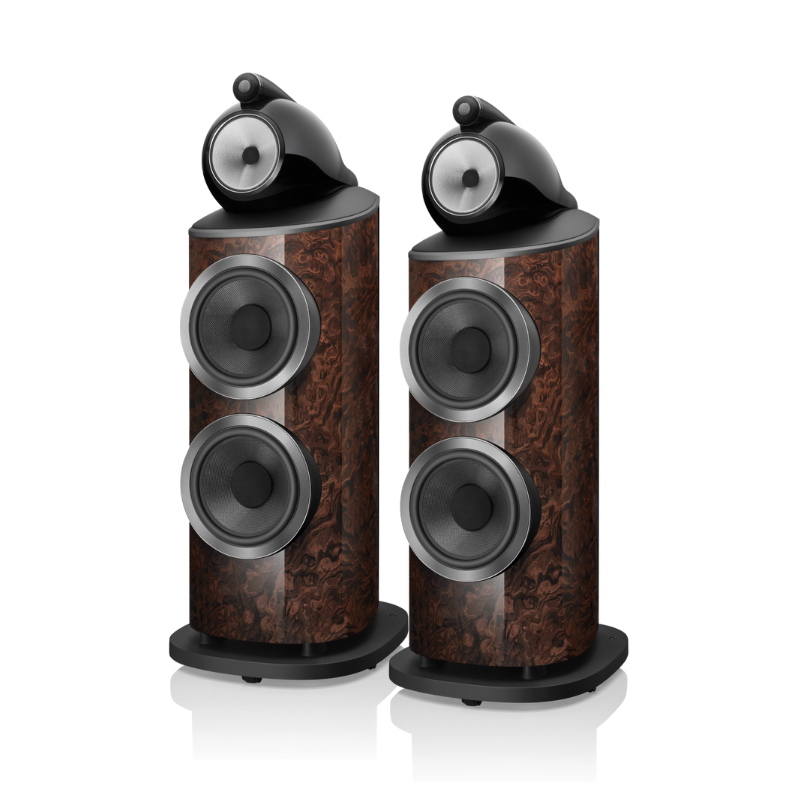

California Burl Gloss.

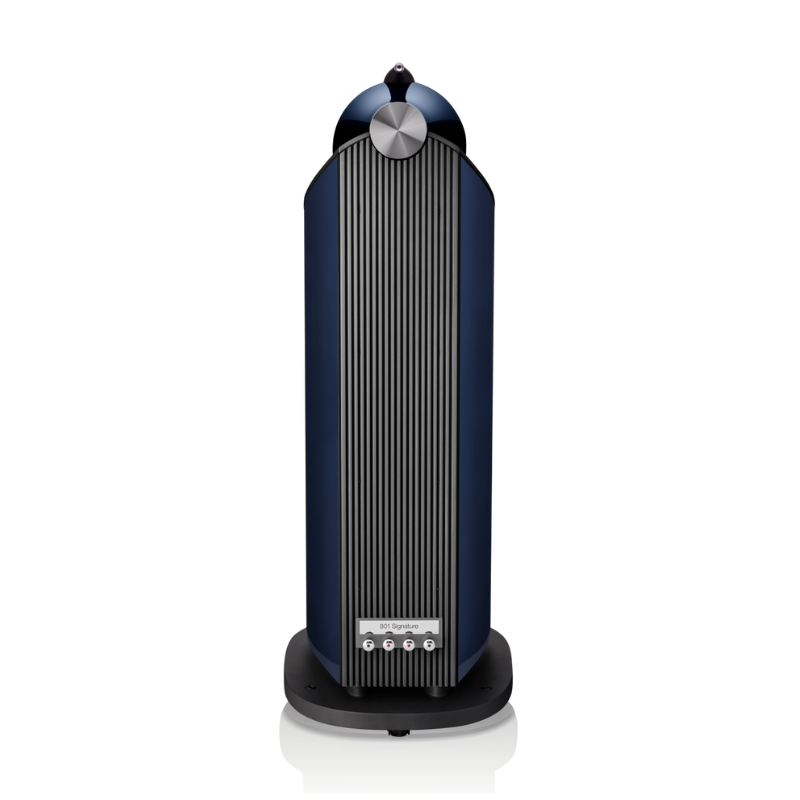

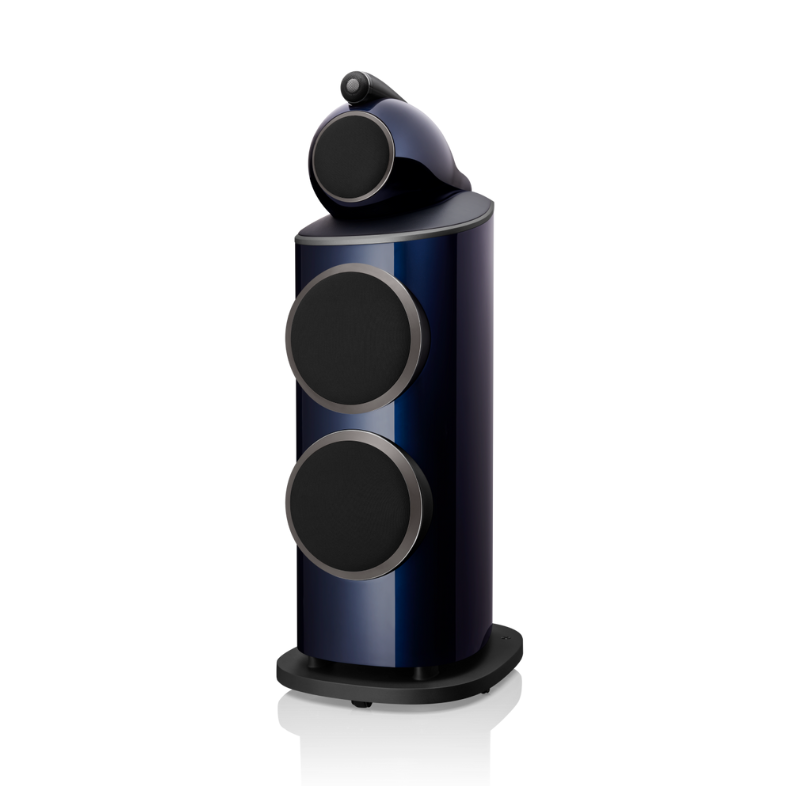

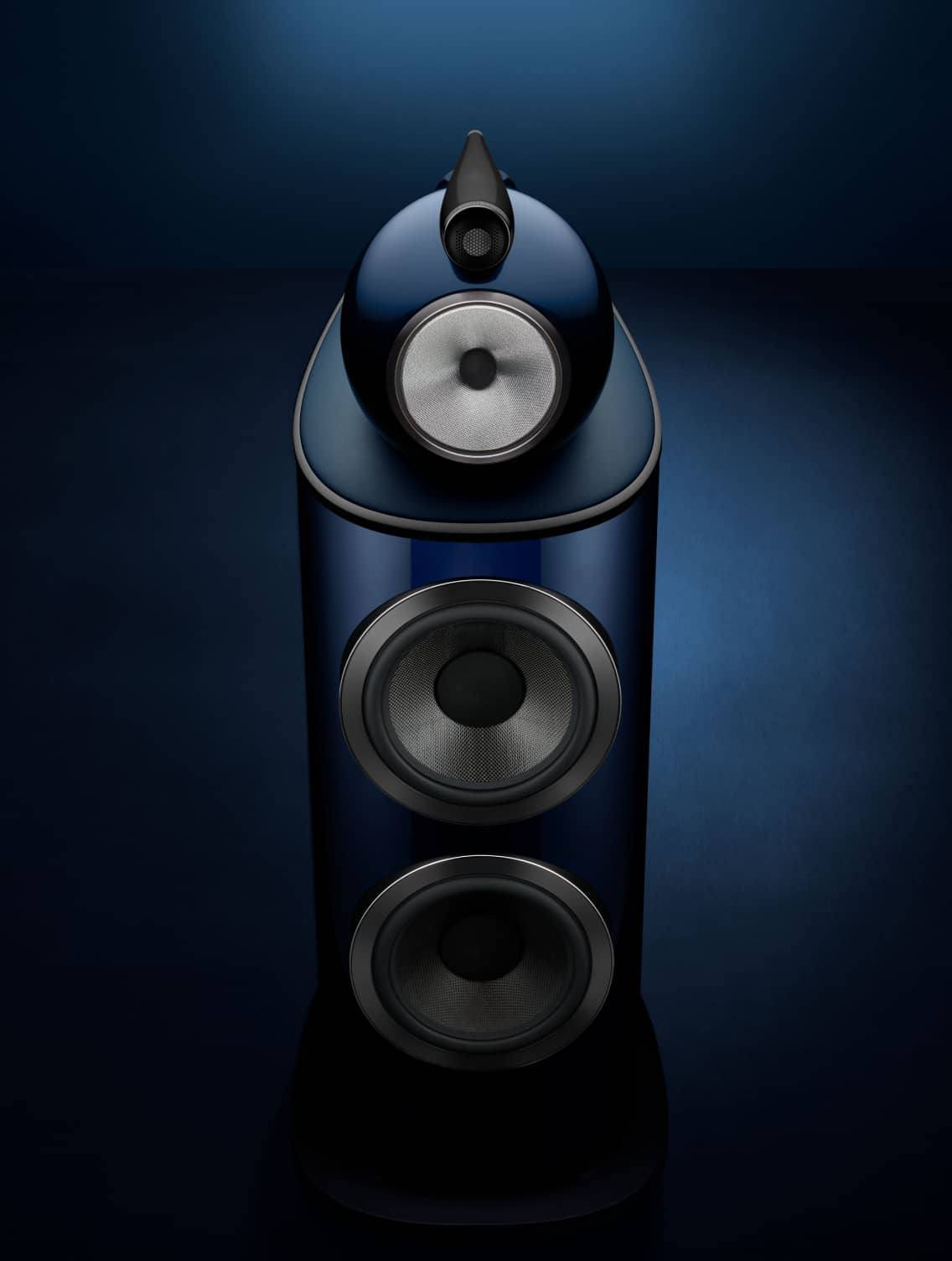

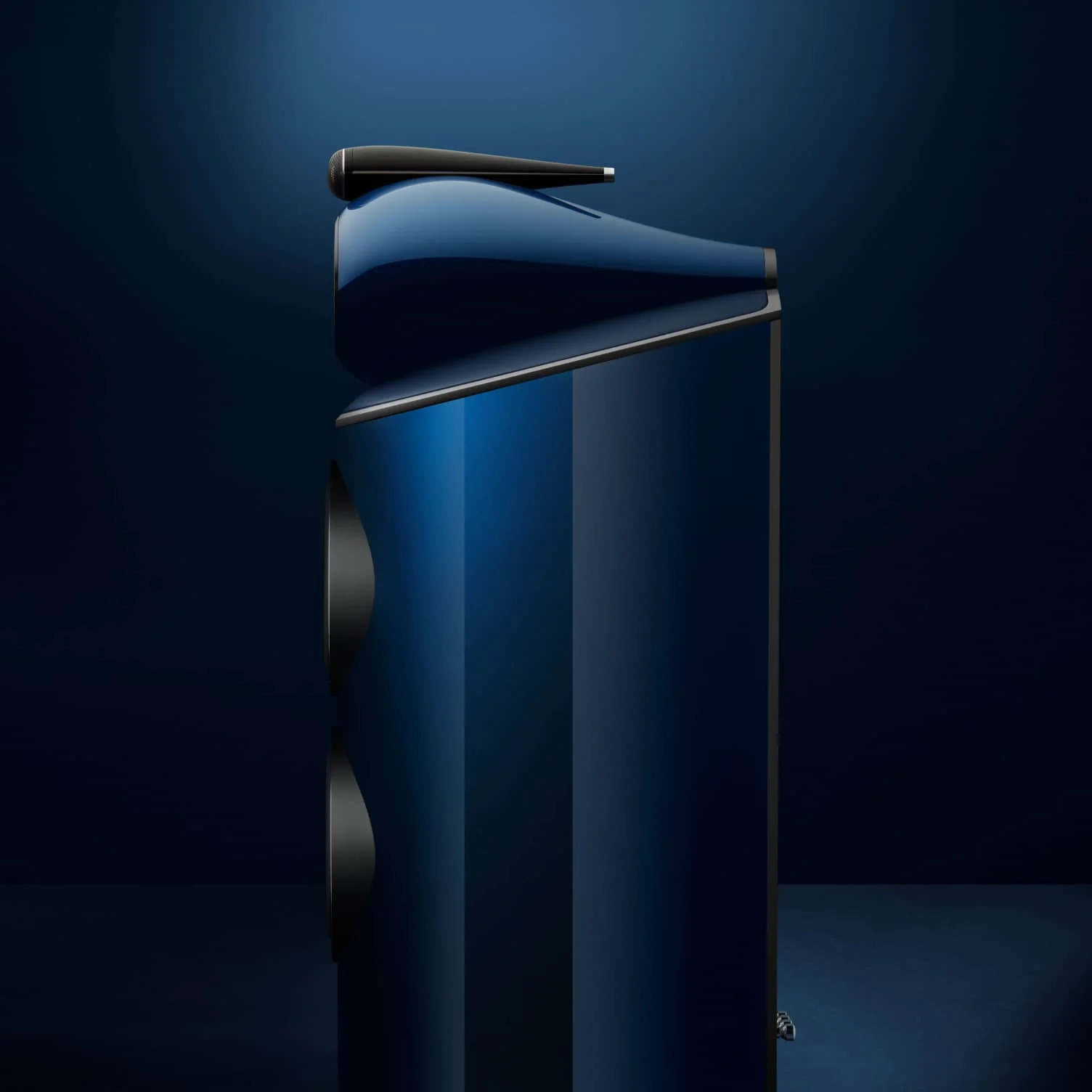

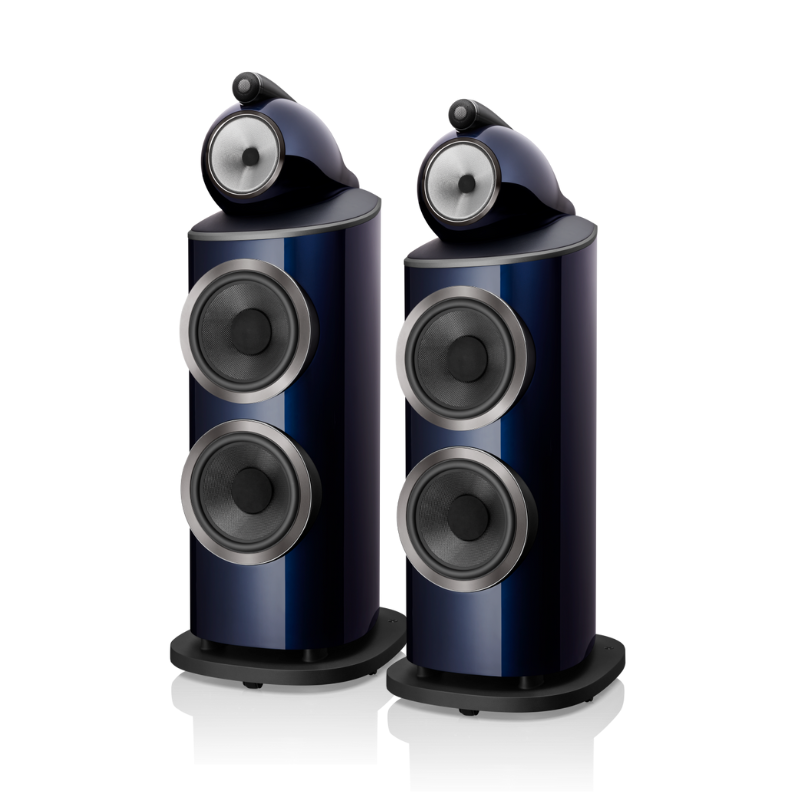

Midnight Blue Metallic.
Grille Finishes: Black.
