Reviewed by the experts
"A major step up from its predecessor, the 802 D3 competes with speakers at twice its price and higher."
-Audio Beat
“Think of the tears of joy as you turn it on.”
-Shortlist
Hear small details in a big way

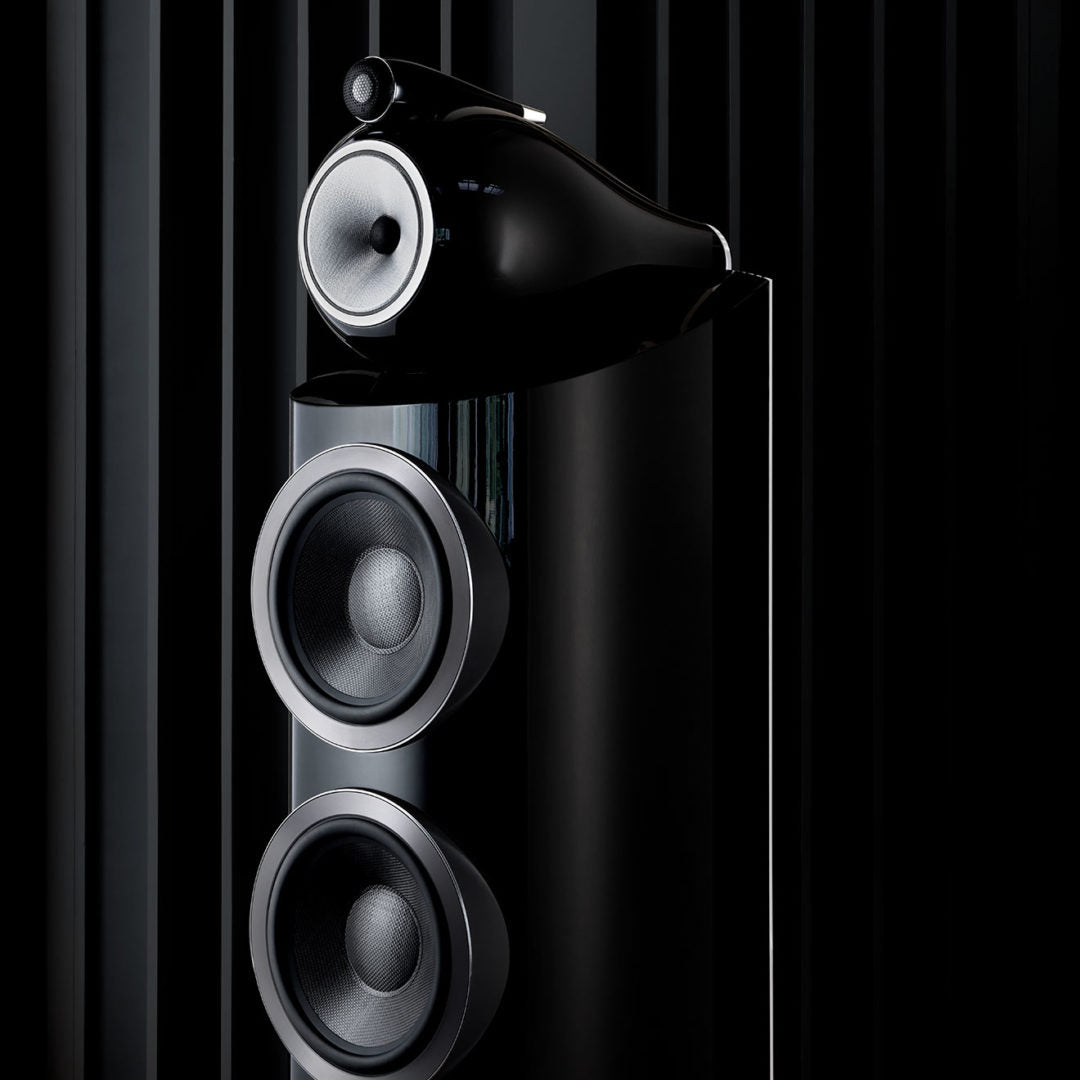

Mounted atop the main enclosure, the Diamond dome tweeter in its solid aluminum housing delivers space, ambiance and precise soundstage imaging.
Less resonance, more dispersion
The Turbine Head's massive midrange housing is carefully shaped and inert, ensuring voices and instruments are delivered with extreme purity.
Truly amazing sound
Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum™ cone midrange driver.
Nimble and powerful
Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.
Braced for impact
Unwanted resonances can blunt the punch of the sound: advanced Matrix bracing keeps the cabinet ultra-rigid and damps out superfluous vibrations.
Stable foundations
Perfect sound is about moving air, not the speakers: a stable plinth makes for easy positioning, then keeps it rock-solid for listening.
TECHNICAL SPECIFICATIONS
Technical features
- Diamond tweeter
- Continuum™ Cone FST™
- Anti-Resonance plug
- Turbine head
- Aerofoil™ cone bass units
- Flowport™
- Optimized Matrix
- Solid-body tweeter
- Tweeter-on-Top
Description – 3-way vented-box system
Drive units –
- 1x ø25mm 1 in Diamond dome high-frequency
- 1x ø150mm 6 in Continuum™ cone FST™ midrange
- 2x ø200mm 8 in Aerofoil™ cone bass units
Frequency range – 14Hz to 35kHz
Frequency response +/-3dB from reference axis – 17Hz to 28kHz
Sensitivity 1m on-axis at 2.83Vrms – 90dB
Harmonic distortion –
- 2nd and 3rd harmonics 90dB, 1m on-axis
- <1 % 80Hz - 20kHz
- <0.3% 100Hz - 20kHz
Nominal impedance min – 8Ω minimum 3.0Ω
Recommended amplifier power – 50W - 500W into 8Ω on unclipped program
Max. recommended cable impedance – 0.1Ω
Dimensions –
Height: 1212mm not including feet
Width: 390mm
Depth: 583mm
Net weigbht – 94.5kg 208lb
