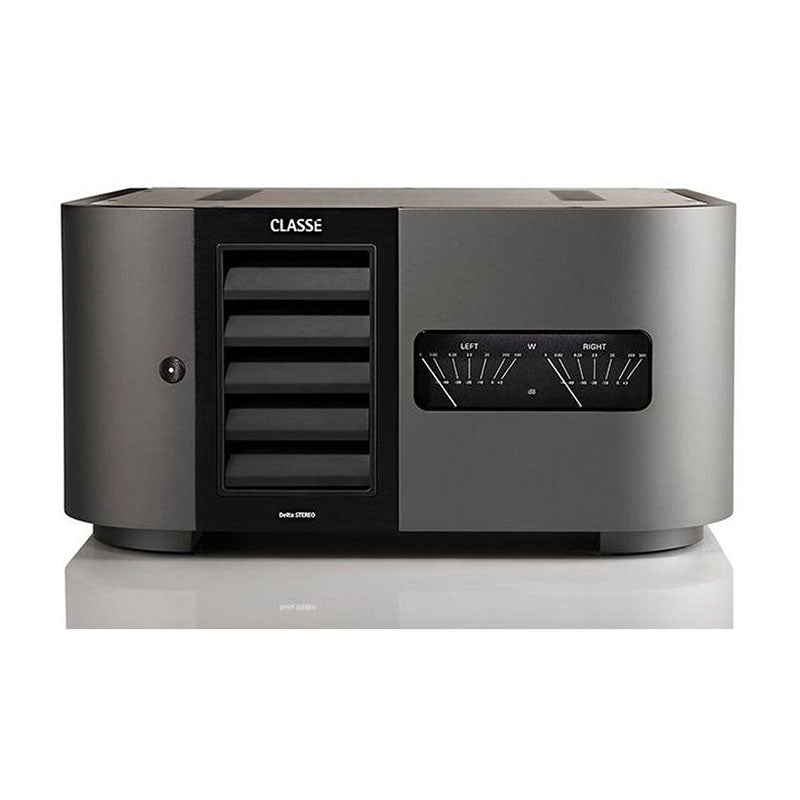

CLASSE Delta Stereo Power Amplifier (Each)

Description

Description

AMPLIFICATION

The first 12.5W of power output is pure Class A, and with a total of 250W per channel at its command (over 350W/Ch @ 2Ω), this compact, powerful amplifier drives loudspeakers with utmost confidence.

Up to 12.5W per Channel delivered in pure Class A operation
250W per Channel total
Massive, high-quality power supply
Custom toroidal transformer

CLARITY

Delta STEREO delivers exceptional clarity. Every effort has been made to preserve the complete separation between channels, delivering the natural, expansive sound that Classé is legendary for.

Hand-laid circuit boards
6-layer circuit boards provide for shortened signal and power pathways with the lowest noise
22 4-pole Mundorf® capacitors
Custom-made Navcom® feet to absorb vibrations
Furutech® rhodium-plated RCA and torque-guard speaker connectors

DESIGN

Delta STEREO has a presence. Its capabilities are expressed through design and it looks fantastic in any room or installation.

Superb material finishes and a pair of custom-designed illuminated VU meters display power output for both channels beautifully.

Delta Series design concept is to create a monument to sound. This amplifier looks every bit as capable as it sounds.

SPECIFICATIONS

OVERALL DIMENSIONS

Width - 17.50 in (444 mm)

Depth - 19.37 in (492 mm)

Height - 8.74 in (222 mm)

WEIGHT

Gross Weight - 116.4 lbs (52.8 kg)

Net Weight - 102.3 lbs (46.4 kg)

GENERAL

Frequency Response (-3dB, 50Ω source impedance) - 1Hz – 650kHz

Continuous Output Power (at 1kHz, 0.1% THD+N) -

5W / 8Ω delivered in pure class A operation
250W / 8Ω
500W / 4Ω (with AC line held constant)
350W / 2Ω (with AC line held constant)

Harmonic Distortion (measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8 Ω)

<0.0016% at 1kHz
<0.002% at 10kHz
<0.003% at 20kHz

Harmonic Distortion (measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8 Ω)

<0.0007% at 1kHz
<0.001% at 10kHz
<0.0025% at 20kHz

Peak Output Voltage (nominal AC line) -

129Vp-p into 8Ω
138Vp-p no load

Input Impedance (at 1kHz, BAL / SE) - 82kΩ

Voltage Gain (at 1kHz, BAL / SE) -29dB

Intermodulation Distortion (SMPTE 4:1) (8Ω or 4Ω, BAL / SE) - <0.0018%

Intermodulation Distortion (CCIF) (8Ω or 4Ω, BAL / SE) - <0.004%

Signal-to-Noise Ratio (A wtd in parenthesis) (22kHz BW) - 118dB (120dBA)

Crosstalk (one channel driven to 250W / 8Ω)

124dB (100Hz), 107dB (1kHz),
90dB (10kHz)

Slew Rate - 75V / μs

Output Impedance -

009Ω (100Hz), 0.009Ω (1kHz),
012Ω (10kHz)

Damping Factor (at 1kHz, ref 8Ω) - 850

CLASSE DELTA STEREO POWER AMP

CLASSE Delta Stereo Power Amplifier (Each)

R 360,000.00

The Delta STEREO distills all of Classé’s innovation and knowledge into a compact high-performance stereo amplifier.

In situations where dual mono amplifiers can’t be accommodated, Delta STEREO offers uncompromizing performance in a single component.
