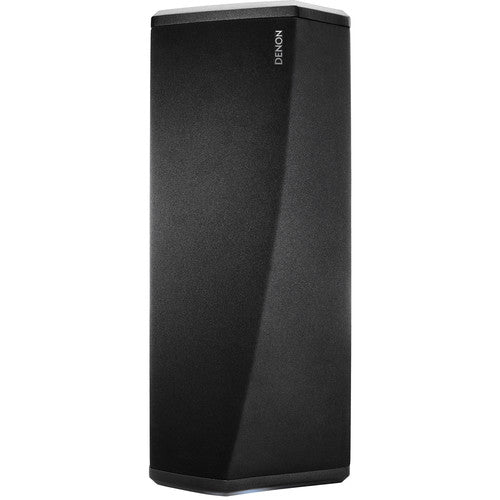

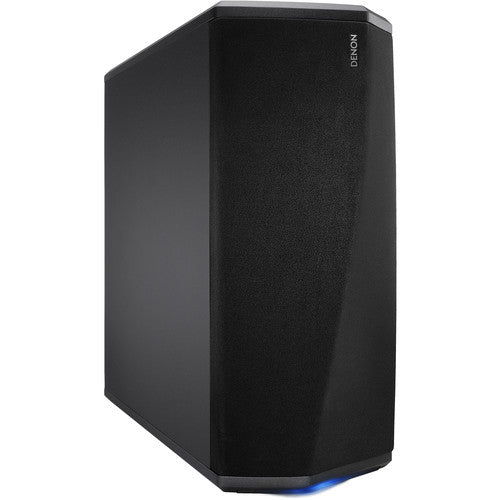

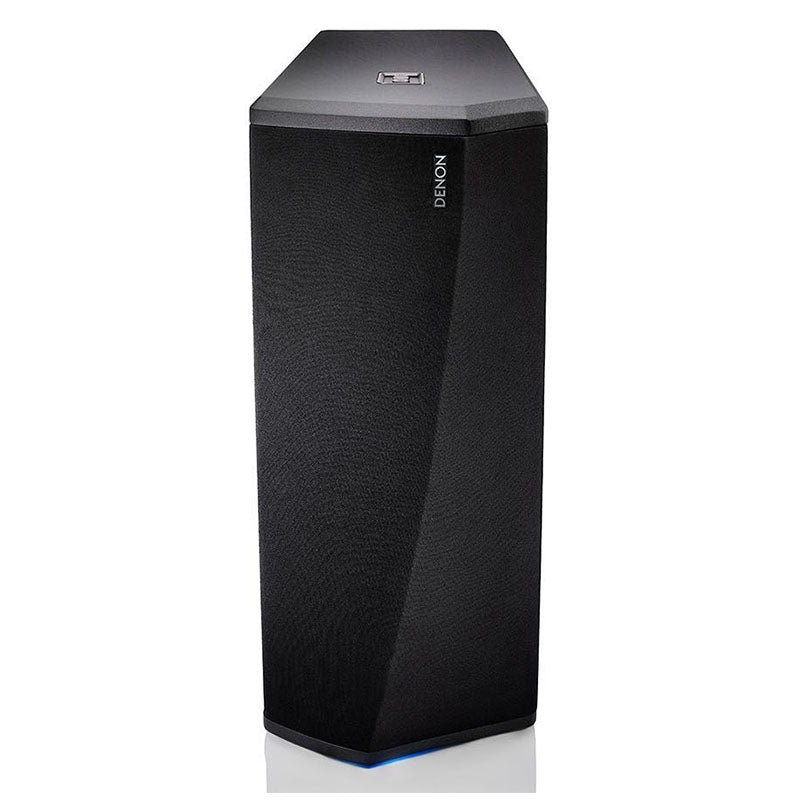

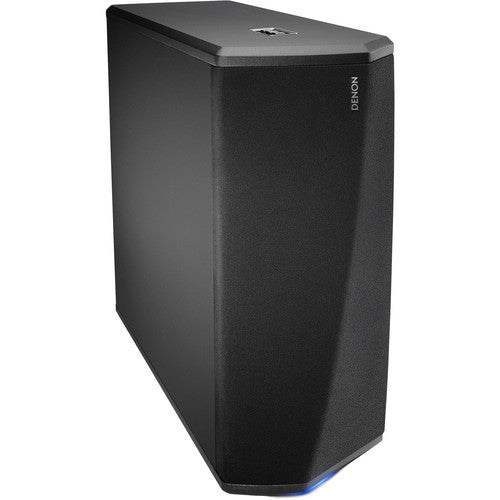

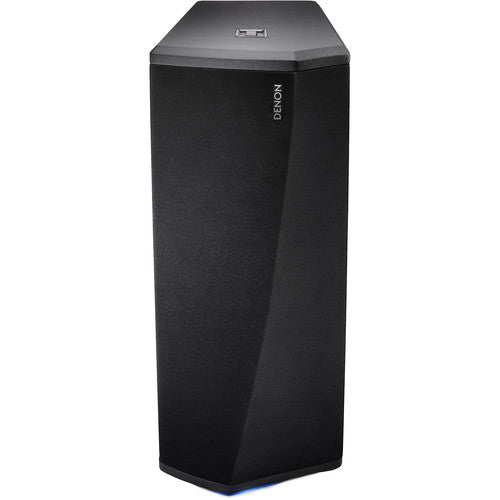

The Denon DSW-1H wireless subwoofer connects via Wi-Fi to the Denon DHT-S716H soundbar to add deep, powerful bass you can feel and hear. Dual custom 5.25” drivers are fed by sophisticated high-power Class-D amplification while proprietary DSP algorithms give you optimized low-frequency response across the entire dynamic range. Place it anywhere in the room, horizontally or vertically, then simply plug-in to wall power and play. With quick setup, improving your entertainment experience with clear, thunderous bass has never been easier.
FEATURES
- Deep bass subwoofer: Add powerful bass to the Denon DHT-S716H soundbar for a truly complete immersive experience
- Easy setup: Just plug the DSW-1H subwoofer into a wall outlet, then pair with your DHT-S716H soundbar through Wi-Fi; it’s never been quicker or easier to start enjoying more dynamic depth in every entertainment experience
- Custom drivers for better sound: Dual custom 5.25” drivers and sophisticated high-power Class-D amplification work together to deliver a rich, dynamic bass
- Advanced in-app control: Easily set volume, low pass filter, and phase (N/180°)
- Wireless surround sound: The DSW-1H can be combined with the Denon DHT-S716H soundbar and other selected HEOS Built-in products to add more fulfilling bass to your home theatre system. Add the subwoofer to the DHT-S716H to create a 3.1 system. Later add two HEOS speakers for a true 5.1 experience.
- Subwoofer dimensions: 406.4mm H x 174.6mm W x 441.3mm D
SPECIFICATIONS
Subwoofer
Subwoofer Type |
Active |
Enclosure Type |
Bass-Reflex |
Amplifier Power Rating |
70 W |
Drivers |
2 x 5.25" / 13.34 cm |
Ports |
1 |
Amplifier Class |
Class-D |
Connectivity |
1 x RJ45
1 x USB Type-A Input (Audio)
1 x 1/8" / 3.5 mm Input (Service) |
Phase Adjustment |
0 / 180° |
Wireless Connectivity
Wireless Connection Protocols |
Proprietary, Wi-Fi |
Wi-Fi Bands |
2.4 GHz, 5 GHz |
Wi-Fi Standards |
Wi-Fi 5 (802.11ac) |
Power
AC Input Power |
120 VAC, 60 Hz |
Physical
Placement & Mounting Options |
Floorstanding |
Operating Temperature |
41 to 95°F / 5 to 35°C |
Dimensions |
6.8 x 15.9 x 17.3" / 171.5 x 404 x 438.4 mm |
Weight |
22.3 lb / 10.1 kg |
Packaging Info
Package Weight |
30.82 lb |
Box Dimensions (LxWxH) |
20.1 x 19.4 x 11.8" |
