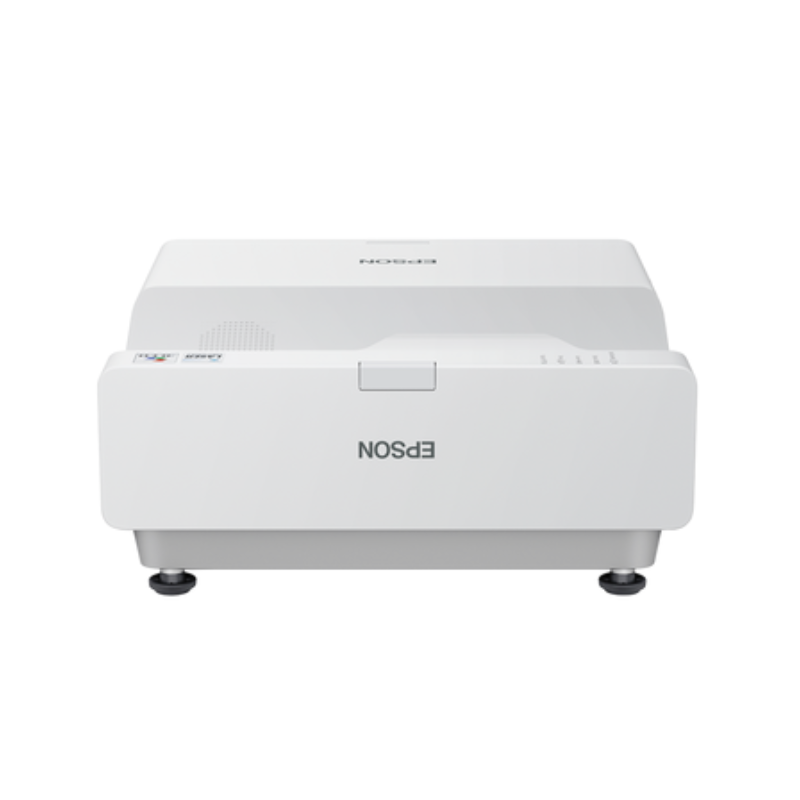

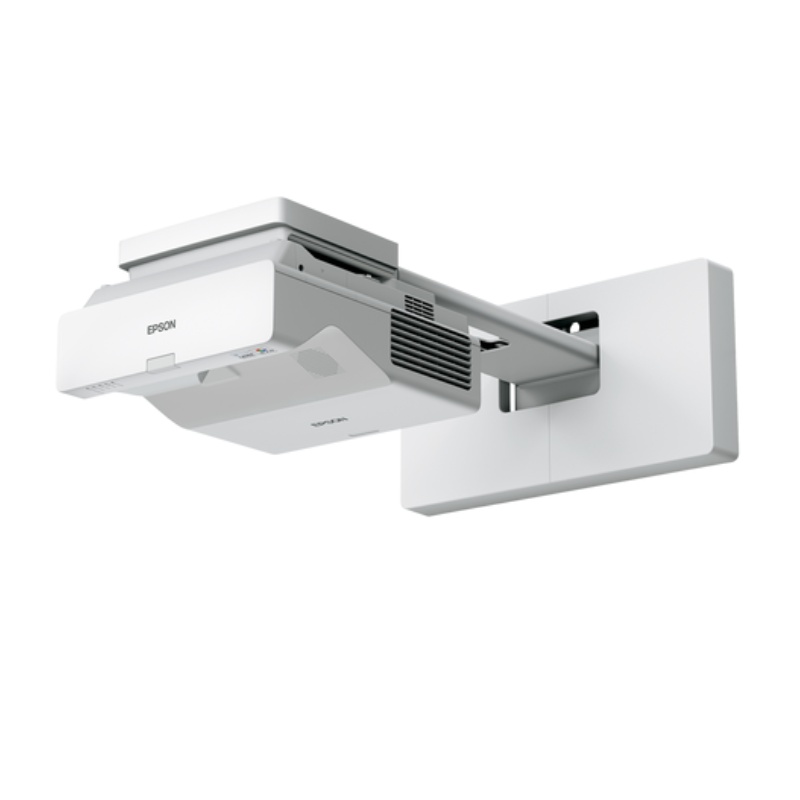

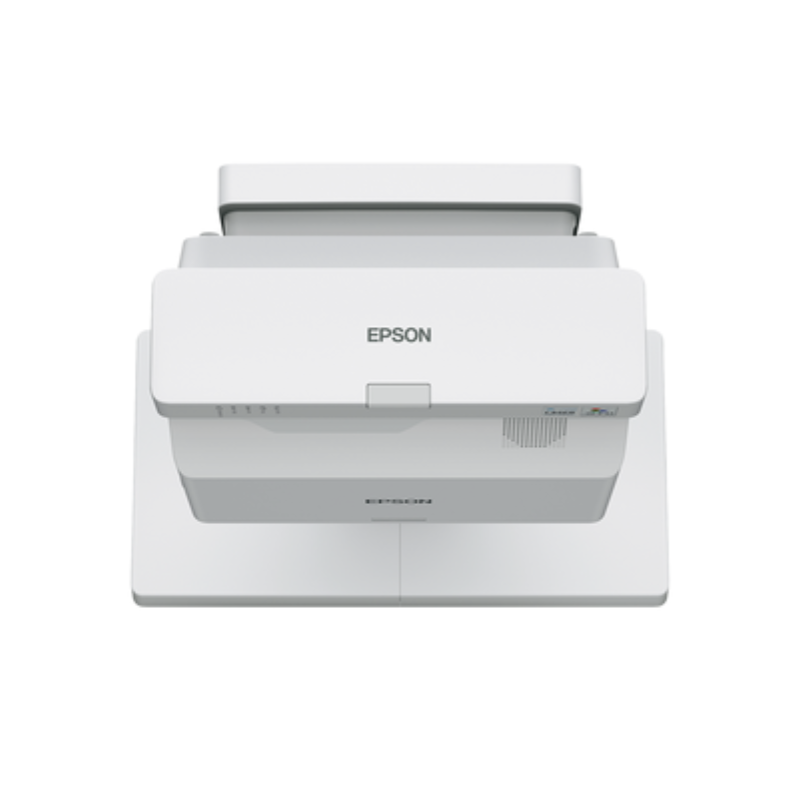

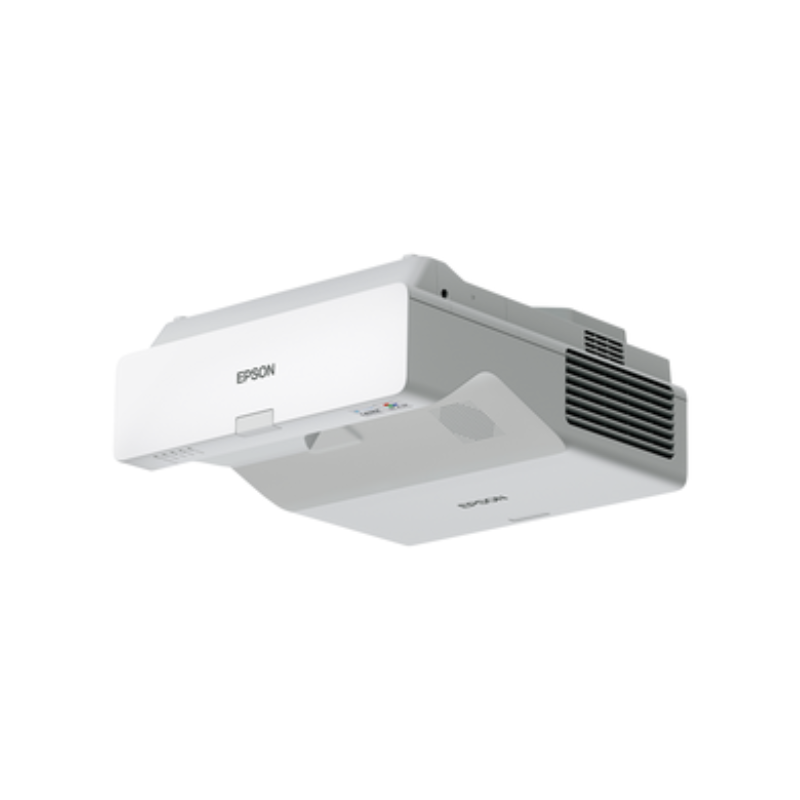

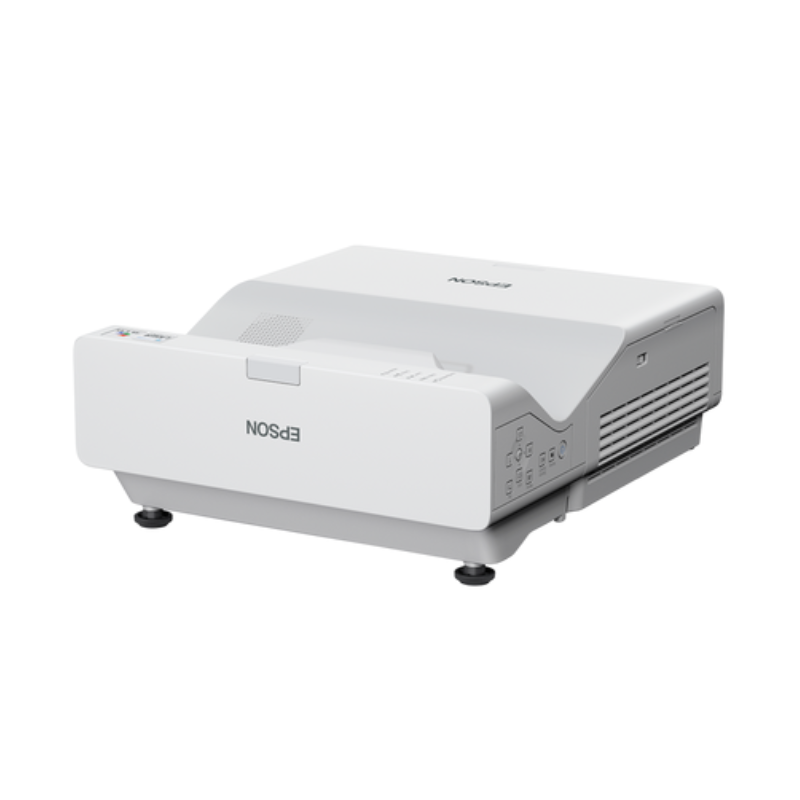

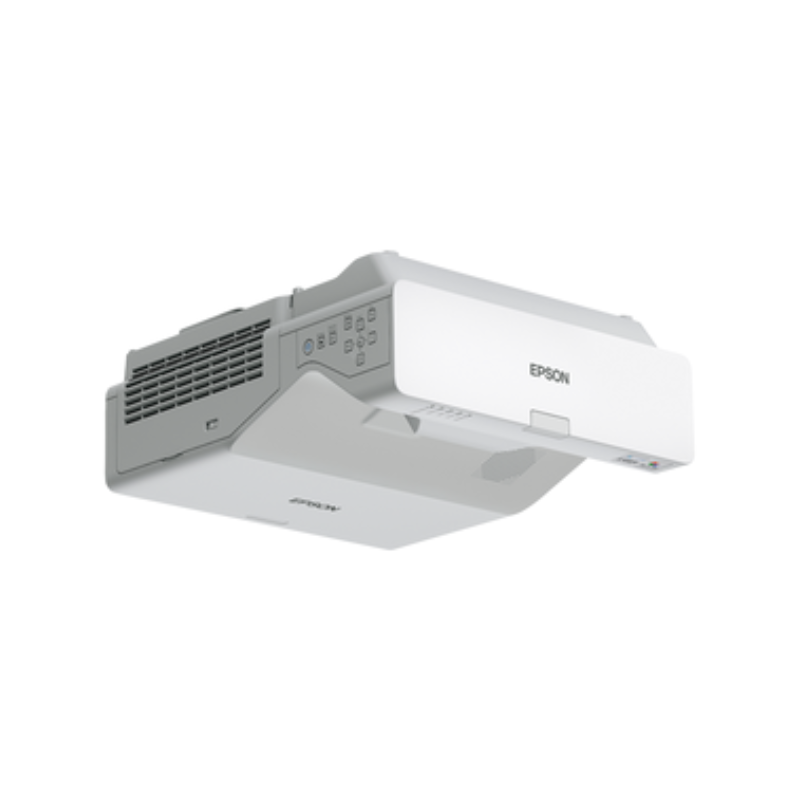

The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.

Scalable from 49-150", display sizes can be optimised for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.

Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygenic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Specifications

Technology:

• Projection System: 3LCD Technology, RGB Liquid Crystal Shutter
• LCD Panel: 0.62 inch with C2 Fine

Image:

• Color Light Output: 4,100 Lumen (2,800 Lumen in Economy Mode) [IDMS15.4]
• White Light Output: 4,100 Lumen (2,800 Lumen in Economy Mode) [ISO 21118:2020]
• Resolution: 1080p
• Resolution Enhancement: Full HD
• Aspect Ratio: 16:9
• Contrast Ratio: Over 5,000,000:1
• Light Source: Laser
  • Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
• Keystone Correction: Manual vertical ± 3°, Manual horizontal ± 3°
• Color Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• Color Reproduction: Up to 1.07 billion colors

Optical:

• Throw Ratio: 0.25 - 0.35:1
• Zoom: Digital, Factor: 1 - 1.35
• Lens Type: Optical
• Screen Size: 60 inches - 150 inches
• Projection Lens F Number: 1.6
• Projection Lens Focal Length: 3.7 mm
• Projection Lens Focus: Manual
• Offset: 5:1

Connectivity:

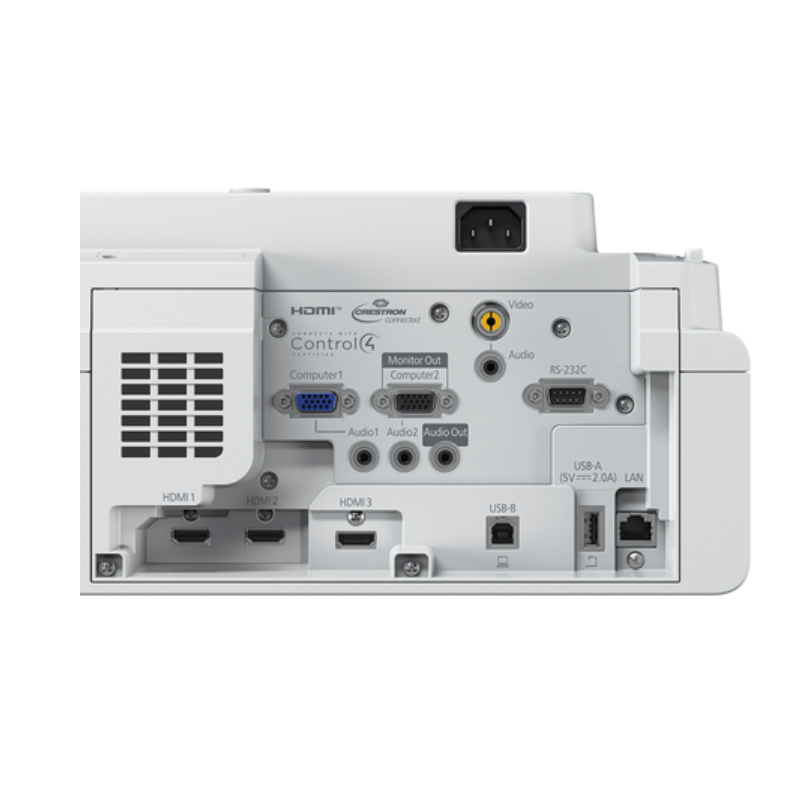

• Interfaces:
  • USB 2.0-A (2x)
  • RS-232C
  • Ethernet Interface (100 Base-TX / 10 Base-T)
  • Wireless LAN IEEE 802.11a/b/g/n/ac
  • VGA In (2x)
  • VGA Out
  • HDMI In (3x)
  • Composite In
  • Miracast
  • Jack Plug Out
  • Jack Plug In (3x)
  • USB 2.0 Type B (Service Only)
  • Wi-Fi Direct
  • Microphone Input
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features:

• Security:
  • Kensington Lock
  • Control Panel Lock
  • Padlock
  • Security Cable Hole
  • Wireless LAN Unit Lock
  • Wireless LAN Security
  • Password Protection
• Other Features:
  • 21:9 Aspect Ratio Support
  • A/V Mute
  • Arc Correction
  • Auto Power On
  • Auto Source Search
  • Built-in Speaker
  • CEC Compatible
  • Customizable User Logo
  • Digital Zoom
  • Direct Power On/Off
  • Document Camera Compatible
  • Edge Blending
  • Email Notification
  • Home Screen
  • Horizontal and Vertical Keystone Correction
  • Image Shift
  • JPEG Viewer
  • Long Light Source Life
  • Network Projection
  • OSD Copy Function
  • PC Free
  • Point Correction
  • Power On Button
  • Quick Corner
  • Schedule Function
  • Screen Mirroring
  • Split-Screen Function
  • Ultra-Wide Display (16:6)
  • Web Control
  • Web Remote
  • Wireless LAN Capable
  • iProjection App
• Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector Control:

• Via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:

• Power Consumption:
  • 197 Watt (Normal On-Mode)
  • 141 Watt (Eco On-Mode)
  • 263 Watt (Normal Peak-Mode)
  • 199 Watt (Eco Peak-Mode)
  • 0.5 Watt (Energy-Saving Standby)
• Heat Dissipation: 895 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 356 x 395 x 133 mm (Width x Depth x Height)
• Product Weight: 5.9 kg
• Noise Level:
  • 37 dB (Normal)
  • 27 dB (Economy)
• Supported Temperature:
  • Storage: -10°C to 60°C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Environmental Caution: In environments with heavy oil smoke, chemicals, or frequent aroma oil burning, parts of the projector may degrade over time, potentially causing it to drop if mounted on a ceiling or wall. Contact support if concerned about the installation environment.

Included Software:

• Epson Creative Projection
• EasyMP Multi PC Projection
• Epson Projector Content Manager
• Epson Projector Management

Options:

• Air Filter
• Ceiling Mount
• Connection and Control Box
• External Speaker
• Safety Wire Set
• Visualiser Camera
• WP System - ELPWP10
• Wall Mount
• Wireless LAN Unit
• Wireless Transmitter - ELPWT01

Loudspeaker:

• 16 Watt

Room Type / Application:

• Boardroom
• Home Office
• Meeting Room / Classroom
• Signage / Retail
• Visitor Attraction

Positioning:

• Ceiling Mounted
• Desktop
• Table Mounted
• Wall Mounted

Color:

• White

Warranty:

• 60 months Carry-in or 12,000 hours
