The ultimate home cinema demands the best in projection. Bring a state-of-the-art cinema experience
to your home with Epson’s EH-LS11000W projector. Featuring revolutionary 3LCD laser projection technology, 4K resolution, and HDR10+ support this high-definition projector delivers phenomenal image quality and colour brightness that elevates any screening to an enthralling cinematic experience. Every inch of this series has been considered -- there’s no wasted space and no exposed cables, leaving an elegant yet bold surface.

Laser projection at home

As part of a manufacturing philosophy aiming to deliver uncompromising brightness, contrast, colour, and the highest image quality, the EH-LS11000W is equipped with a uniquely designed laser optical engine. With a highly
efficient LD package, a newly developed panel, and the optical component optimization that
only Epson can provide, it achieves 2,500lm brightness, high contrast, and superb colour reproduction¹.
The laser engine’s long lifespan of up to 20,000 hours² provides virtually worry-free
operation. And there’s no waiting for the projector to warm up or cool down — the projector reaches maximum brightness and turns off almost immediately.

Experience stunning 4K

Make your home center stage for all the action with advanced pixel-shifting technology that works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K (8.3million pixels) picture without sacrificing picture brightness.
Optimum performance with up to 2,500,000:1 dynamic contrast ratio, 4K-enhancement technology, 3LCD technology, 4K frame interpolation, 4K super-resolution, and HDR10+ support.
Powered by the Epson ZX Picture Processor, Scene Adaptive Gamma allows the user to automatically adjust the picture quality based upon the scene information itself. This provides a simple way to get impressive colour and contrast, regardless of the content being displayed.

The evolution of HDR tonal representation

HDR is a key technology emphasized by filmmakers that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.

Bring images to life

Super-resolution defines and sharpens blurred images for standard and 4K content bringing incredible detail for true-to-life images.

Fast-moving 4K video that's clear and smooth

As well as current frame interpolation technology, blurring reduction is now improved. Even watching fast-moving sports or when gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.

Designed for extraordinary installation flexibility

The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS11000W can be installed in living rooms as well as dedicated home cinemas.
Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.
In addition to the same quietness (25dB/Light output 75%) as previous models, a reduction in high-frequency noise levels creates less distraction for a more immersive experience.

Practical functionality, convenient connectivity

eARC/ARC support
Thanks to ARC, audio can be carried via the projector using an HDMI cable. In addition, eARC supports high-quality sound3, allowing you to enjoy a beautifully cohesive mix of video and sound in an easier installation.
4K/120fps input support
Optimized support for fast-moving game video output.

Calman ready

Professional quality colour calibration, trusted by colour professionals and filmmakers.

Specifications

Image and Display:

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0.74 inch with C2 Fine
• Color Light Output: 2,500 Lumen (IDMS15.4)
• White Light Output: 2,500 Lumen (ISO 21118:2020)
• Resolution: 4K (3840 x 2160), 8.3 million pixels
• Aspect Ratio: 16:9
• Contrast Ratio: 2,500,000:1
• Colour Reproduction: Up to 1.07 billion colours
• Colour Video Processing: 10 Bits
• 2D/3D Frequency Image: 384 Hz / 480 Hz
• 2D Vertical Refresh Rate: 384 Hz - 480 Hz
• HDR Support: HLG, HDR10+

Lens and Optical:

• Light Source: Laser
• Laser Light Source Life:
  • 20,000 hours (High Durability)
  • 20,000 hours (Medium Durability)
  • 20,000 hours (Eco Durability)
• Throw Ratio: 1.35 - 2.84:1
• Zoom: Motorized, Factor: 1 - 2.1
• Lens Shift: Motorized - Vertical ± 96.3%, Horizontal ± 47.1%
• Lens Position Memory: 10 positions
• Screen Size: 50 inches - 300 inches
• Projection Distance (100 inch screen): 3 m - 6.4 m
• Projection Lens F Number: 2 - 3
• Projection Lens Focal Length: 22.5 mm - 46.7 mm
• Projection Lens Focus: Motorized

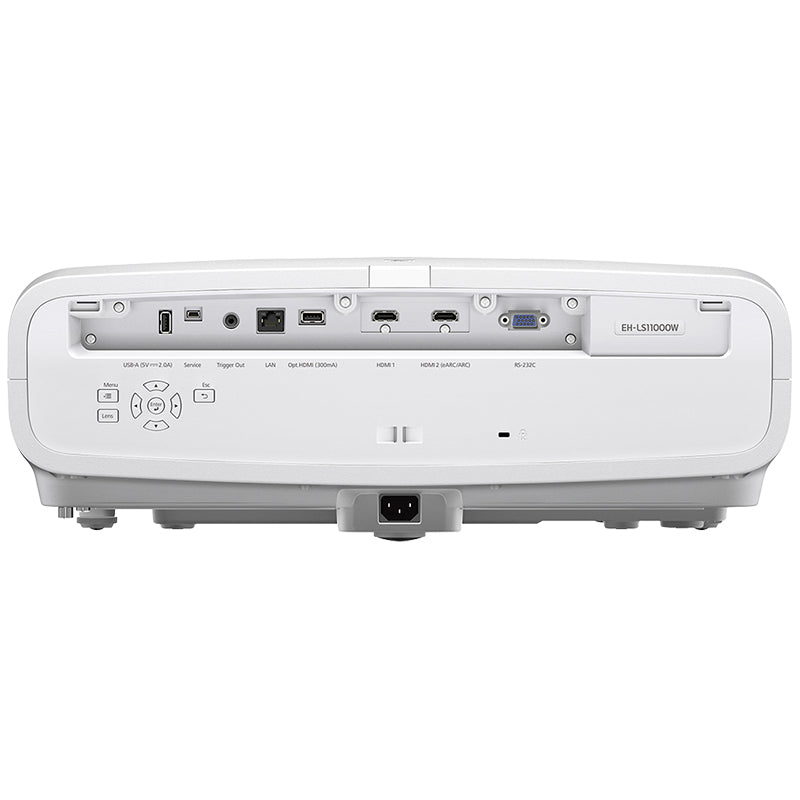

Connectivity and Features:

• Interfaces:
  • USB 1.0-A (2x)
  • USB 2.0 Mini-B
  • RS-232C
  • Ethernet Interface (100 Base-TX / 10 Base-T)
  • Trigger out
  • HDMI ARC
  • HDMI (HDCP 2.3) (2x)
• Advanced Features:
  • Security: Kensington lock
• 3D Support: No
• 2D Colour Modes: Dynamic, Natural, Cinema, Bright Cinema, Vivid
• Other Features:
  • 4K enhancement
  • A/V mute
  • Digital zoom
  • Frame interpolation
  • Horizontal and vertical keystone correction
  • Instant on/off
  • Lens position memory
  • Long light source life
  • Super resolution
• Video Color Modes: Cinema, Dynamic, Natural, Bright Cinema, Vivid
• Projector Control: Crestron Integrated Partner, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Build and General Specifications:

• Power Consumption:
  • Normal Peak-Mode: 302 Watt
  • Eco Peak-Mode: 198 Watt
  • Energy Saving Standby: 0.4 Watt
• Heat Dissipation: 1,026.8 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 520 mm x 447 mm x 193 mm (WxDxH)
• Product Weight: 12.7 kg
• Noise Level:
  • Normal: 30 dB (A)
  • Economy: 22 dB (A)
• Supported Temperature:
  • Operation: 5° C - 35° C
  • Storage: -10° C - 60° C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Room Type / Application: 4K Gaming, Home Cinema, Sports
• Positioning: Ceiling Mounted, Desktop
• Colour: White
• Warranty: 60 months Carry in or 12,000 hours
