Prepare to be amazed
The ultimate home cinema demands the best in
projection. Bring a state-of-the-art cinema experience

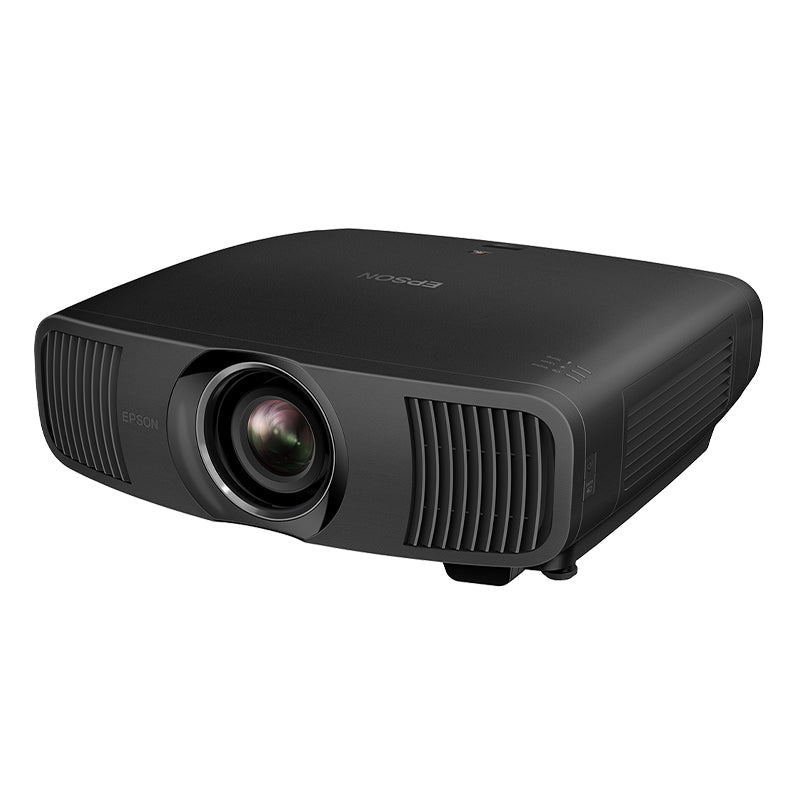

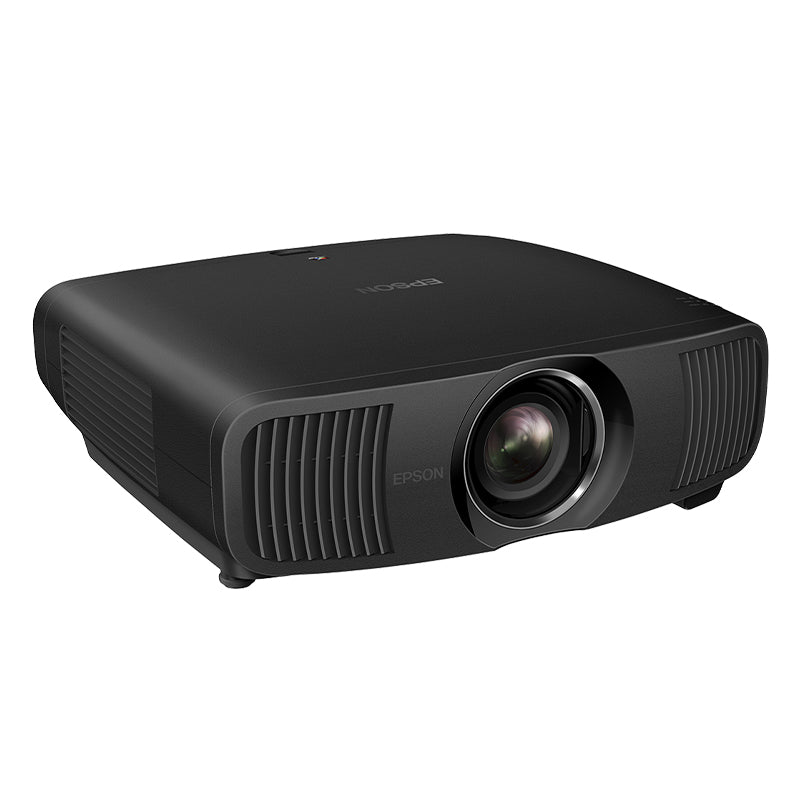

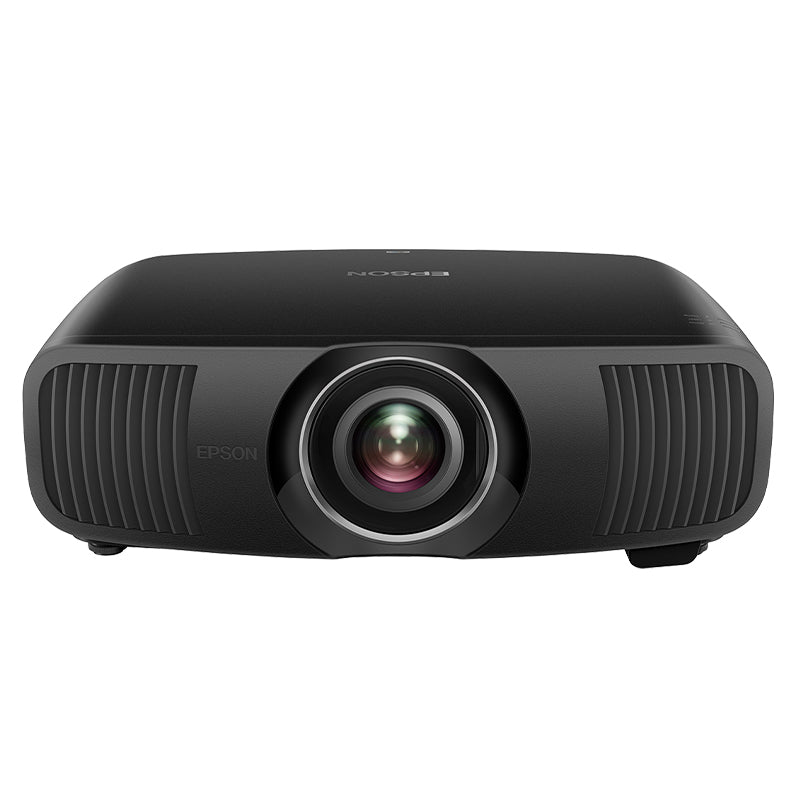

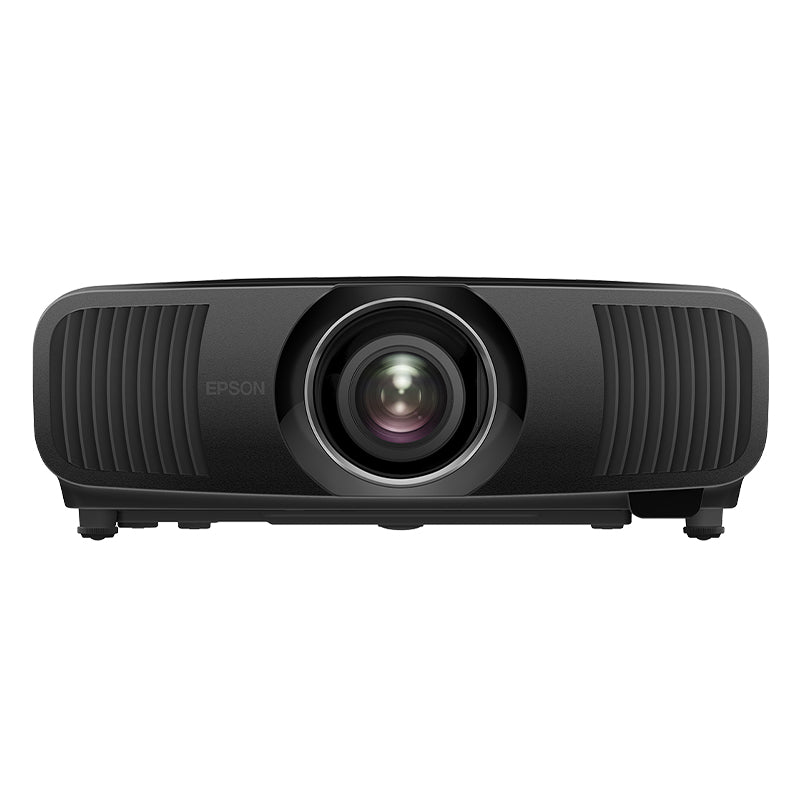

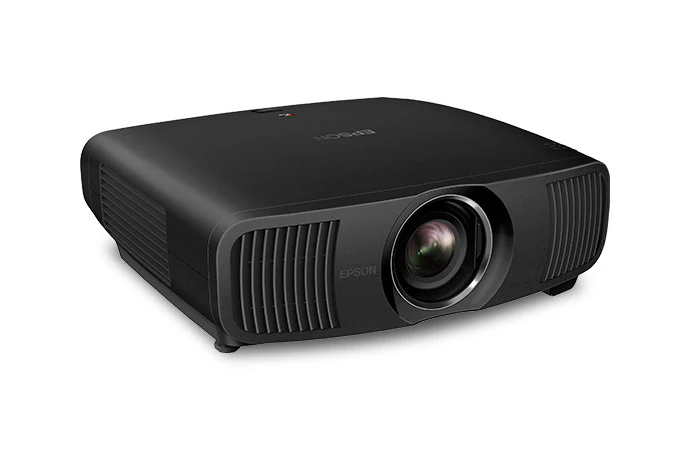

to your home with Epson’s EH-LS12000B
projector. Featuring revolutionary 3LCD laser
projection technology, 4K resolution and HDR10+ support
this high-definition projector delivers phenomenal image
quality and colour brightness that elevates any screening
to an enthralling cinematic experience. Every inch
of this series has been considered -- there’s no
wasted space and no exposed cables, leaving
an elegant yet bold surface.
Laser projection at home
As part of a manufacturing philosophy aiming to deliver uncompromising brightness, contrast, colour, and the highest image quality, the EH-LS12000B is equipped with a uniquely designed laser optical engine. With a highly efficient LD package, a newly developed panel, and the optical component optimization that only Epson can provide, it achieves 2,700lm brightness, high contrast, and superb colour reproduction¹. The laser engine’s long lifespan of up to 20,000 hours² provides virtually worry-free operation. And there’s no waiting for the projector to warm-up or cool down — the projector reaches maximum brightness and turns off almost immediately.
Experience stunning 4K
Make your home centre stage for all the action with advanced pixel-shifting technology that works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K (8.3million pixels) picture without sacrificing picture brightness.
Optimum performance with up to 2,500,000:1 dynamic contrast ratio, 4K-enhancement technology, 3LCD technology, 4K frame interpolation, 4K super-resolution and HDR10+ support.
Powered by the Epson ZX Picture Processor, Scene Adaptive Gamma allows the user to automatically adjust the picture quality based upon the scene information itself. This provides a simple way to get impressive colour and contrast, regardless of the content being displayed.
The evolution of HDR tonal representation
HDR is a key technology emphasized by filmmakers that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.
Bring images to life
Super resolution defines and sharpens blurred images
for standard and 4K content bringing incredible detail
for true to life images.
Fast-moving 4K video that's clear and smooth
As well as current frame interpolation technology, blurring reduction is now improved. Even watching fast-moving sports or when gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.
Designed for
extraordinary
installation flexibility
The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS12000B can be installed in living rooms as well as dedicated home cinemas.
Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.
In addition to the same quietness (25dB/Light output 75%) as previous models, a reduction in high-frequency noise levels creates less distraction for a more immersive experience.
Practical functionality,
convenient connectivity
eARC/ARC support
Thanks to ARC, audio can be carried via the
projector using an HDMI cable. In addition,
eARC supports high-quality sound3, allowing
you to enjoy a beautifully cohesive mix of video
and sound in an easier installation.
4K/120fps input support
Optimised support for fast-moving game video output.
Calman ready
Professional quality colour calibration, trusted by colour professionals and filmmakers.
Key Features
- Impressive sharp display: 4K resolution (8.3mil pixels) and HDR10+ support
- Smooth, fast-moving action: 4K Frame Interpolation and 4K Super Resolution
- Long-lasting solution: Enjoy up to 10 years of entertainment¹ thanks to laser light-source
- Fully motorised optics: Powered zoom, focus and lens shift
- Wide lens shift: Vertical ±96.3% and horizontal ±47.1%
Tech Specs
Product features and specifications are subject to change without prior notice.
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
SKU: V11HA47040
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0.74 inch with C2 Fine
Color Light Output
2,700 Lumen
White Light Output
2,700 Lumen
Resolution
4K PRO-UHD, 16:9
High Definition
4K enhancement
Aspect Ratio
16:9
Contrast Ratio
2,500,000 : 1
Light source
Laser
Laser Light source
80 mW 20,000 hours Durability High, 20,000 hours Durability Medium, 20,000 hours Durability Eco
Keystone Correction
Manual vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
2D/3D Frequency Image
384 Hz / 480 Hz
2D Vertical Refresh Rate
384 Hz - 480 Hz
Colour Reproduction
Upto 1.07 billion colours
Throw Ratio
1.35 - 2.84:1
Zoom
Motorized, Factor: 1 - 2.1
Lens Shift
Motorized - Vertical ± 96.3 %, horizontal ± 47.1 %
Lens position memory
10 positions
Screen Size
50 inches - 300 inches
Projection Distance Wide/Tele
3 m - 6.4 m ( 100 inch screen)
Projection Lens F Number
2 - 3
Projection Lens Focal Length
22.5 mm - 46.7 mm
Projection Lens Focus
Motorized

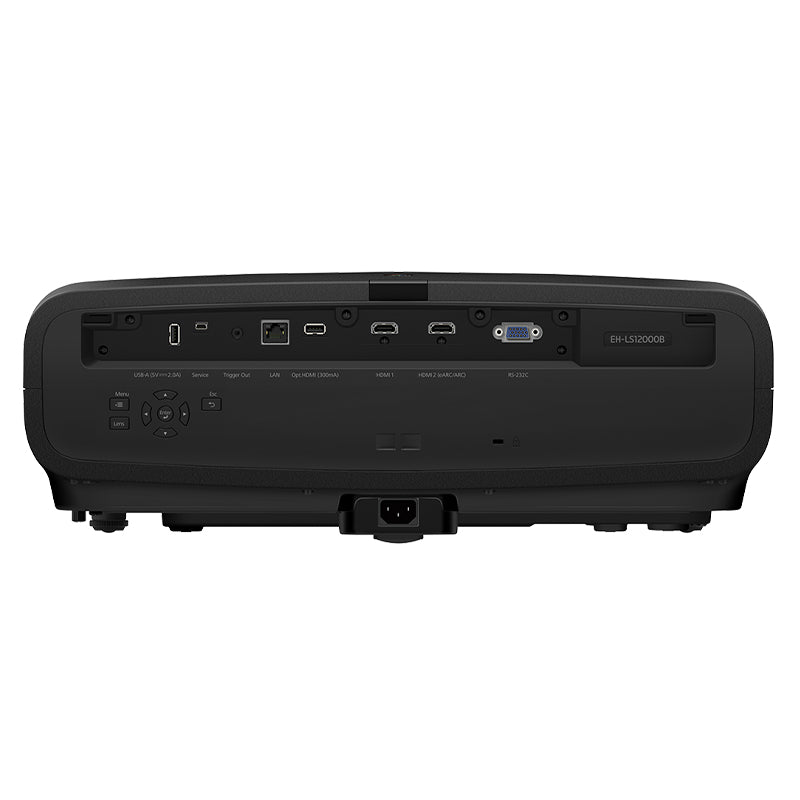

Interfaces
USB 1.1 Type A (2x), USB 2.0 Type Mini-B, RS-232C, Wired Network, Trigger out, HDMI ARC, HDMI (HDCP 2.3) (2x)
