The complete picture

Experience bright, vivid colors with this affordable 4K PRO-UHD1 projector. By delivering an equally high White and Colour Light Output of 3,000 lumens, it achieves both high brightness and intense colors. The high contrast ratio of 40,000:1 delivers deep blacks and clearly defined shadows, and the frame interpolation gives sharper fast-moving images.

The big-screen experience

Feel immersed in your home entertainment with an engaging big-screen experience. This projector can create a display size of up to 500″, can play 2D and 3D content, and boasts noise-canceling technology. Lens shift, zoom, and keystone correction ensure that your picture is exactly where you want it to be.

Stream content easily

Plug and play 4K1 content simply by inserting a streaming device into the back of the projector so it’s ready to go at a moment’s notice. You can also display 4K1 content from a games console, set-top box, Blu-ray player, tablet or another device via the two HDMI ports. Connect soundbars wirelessly via Bluetooth.

Enjoy up to seven years of movies

Watch a movie every day on the big screen for the next seven years2 thanks to its incredibly long lamp life that minimizes replacements. Epson projectors are known for their reliability, so you don’t have to worry about missing a minute of your favorite film, game or program.

See beyond resolution

With Epson’s 4K PRO-UHD1 projectors, you get a holistic approach to image performance over and above the ability to receive, process, and project 4K1 content. Great images are the result of a combination of technologies coming together, including equal color and white brightness, 3LCD technology, contrast control, HDR10 and color processing.

Brighter, vivid projection

White brightness alone cannot bring the true colors you see everyday to life. The 3LCD technology found in Epson’s projectors delivers an equally high White and Colour Light Output (CLO), so that you can experience vivid and lifelike images.

Innovations that matter

Epson projectors have a significantly higher color brightness than 1-chip DLP projectors thanks to 3LCD technology. As such, Epson’s projectors offer up to three times brighter colours3, resulting in more vivid and colorful images.

Flicker-free images

1-chip and LED projectors can be subject to the ‘rainbow effect’, which describes how some people can see a disruptive flicker in fast-moving images. Ensuring smooth images, Epson’s projectors use 3LCD technology, which means that the ‘rainbow effect’ can never occur.

Specifications

Technology:

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0.61 inch with C2 Fine

Image:

• Color Light Output: 3,000 Lumen (In accordance with IDMS15.4)
• White Light Output: 3,000 Lumen (In accordance with ISO 21118:2020)
• Resolution: 4K PRO-UHD
• Resolution Enhancement: 4K enhancement
• Aspect Ratio: 16:9
• Contrast Ratio: 40,000:1
• Light Source: Lamp
  • Lamp Type: UHE, 250W, 3,500h (durability), 5,000h (economy mode)
• Keystone Correction:
  • Manual Vertical: ±30°
  • Manual Horizontal: ±30°
• Colour Video Processing: 10 Bits
• 2D/3D Frequency: 240 Hz (2D) / 480 Hz (3D)
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• 3D Vertical Refresh Rate: 400 Hz - 480 Hz
• Colour Reproduction: Up to 1.07 billion colours
• HDR Support: HDR10, HLG

Optical:

• Throw Ratio: 1.32 - 2.15:1
• Zoom: Manual, Factor: 1 - 1.62
• Lens: Optical
• Lens Shift: Manual (Vertical: ±60%, Horizontal: ±24%)
• Screen Size: 40 inches - 500 inches
• Projection Distance (Wide): 1.2 m - 14.9 m
• Projection Distance (Tele): 1.9 m - 24 m
• Projection Distance (Wide/Tele): 2.95 m - 4.77 m (100 inch screen)
• Projection Lens F Number: 1.49 - 1.77
• Projection Lens Focal Length: 18.2 mm - 29.2 mm
• Projection Lens Focus: Manual

Connectivity:

• Interfaces:
  • USB 2.0-A (2x)
  • USB 2.0 Mini-B
  • HDMI in (2x)
  • Jack plug out
  • Bluetooth
• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features:

• Security: Kensington lock
• 3D: Active
• 2D Colour Modes: Dynamic, Natural, Cinema, Bright Cinema
• 3D Supported Formats: Side-by-side, Top-and-bottom
• Other Features:
  • 3D depth adjustment, 4K enhancement
  • Frame interpolation, Horizontal and vertical keystone correction
  • Quick Corner, Wireless LAN capable
• Video Color Modes: Automatic, Cinema, Dynamic, Natural, Bright Cinema

General:

• Power Consumption:
  • 323W (Normal On-Mode)
  • 368W (Normal Peak-mode)
  • 280W (Eco Peak-Mode)
  • 0.5W (Energy-saving standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz

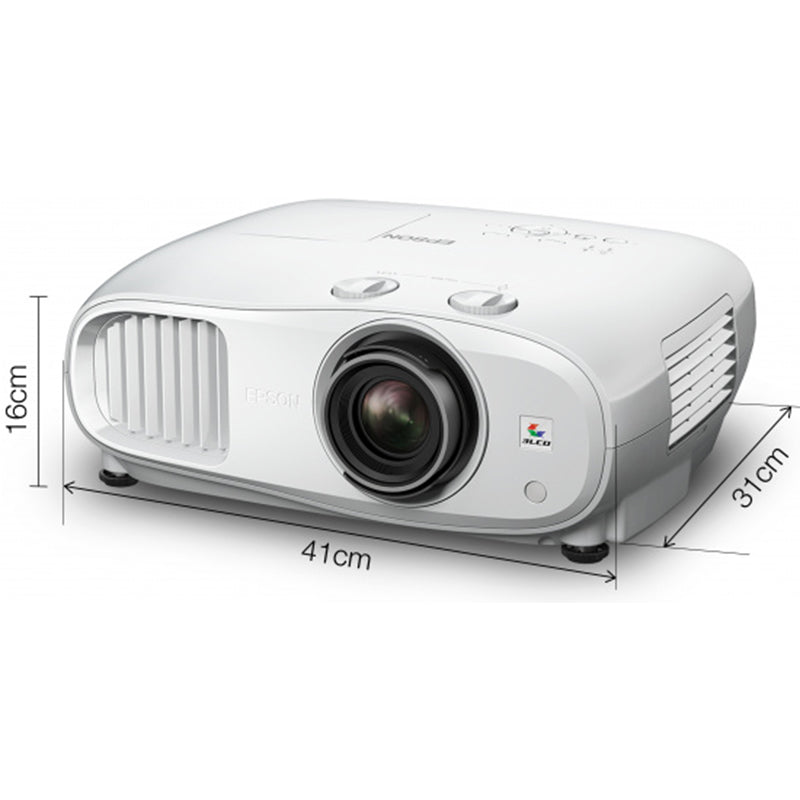

• Product Dimensions: 410 x 310 x 157 mm (Width x Depth x Height)
• Product Weight: 6.6 kg
• Noise Level:
  • Normal: 32 dB (A)
  • Economy: 24 dB (A)
• Supported Temperature:
  • Operation: 5°C - 30°C
  • Storage: -10°C - 60°C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%

Installation Warning:

If the projector is installed in environments with heavy oil smoke, chemicals, or places where smoke, bubbles, or aroma oils are used, it may lead to material degradation, which could cause the projector to detach from ceiling mounts over time. Contact support if concerned about the installation environment.

Options:

• Air Filter: ELPAF38
• Ceiling Mount: MB22
• Wireless LAN Unit

Applications:

• Room Type: 4K Gaming, Home Cinema, Sports, TV & Box sets
• Positioning: Ceiling Mounted, Desktop
• Colour: White

Warranty:

• Warranty: 24 months Carry-in, Lamp: 36 months or 3,000 hours
