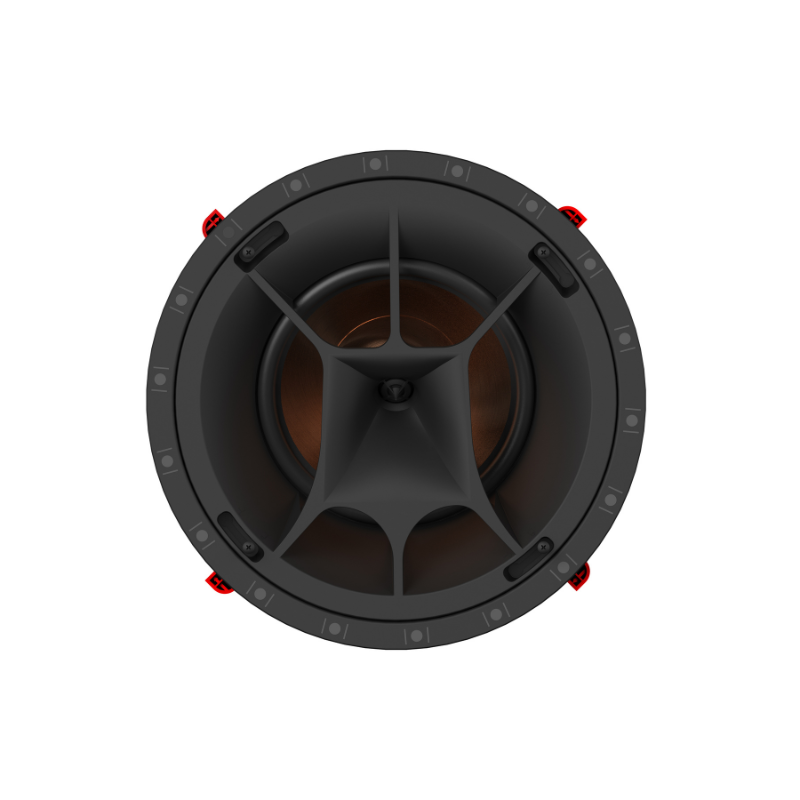

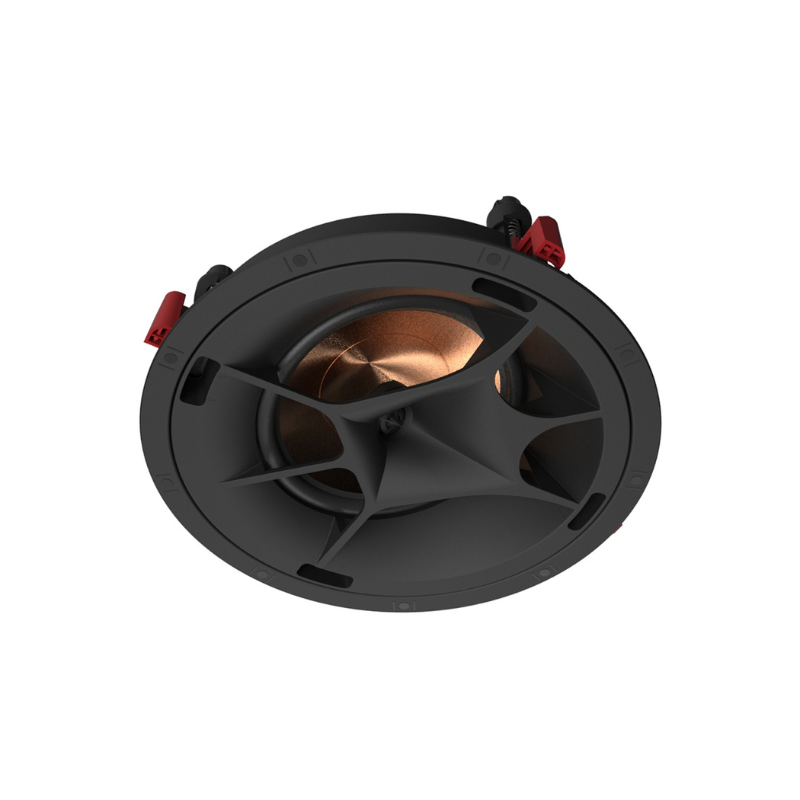

Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With a 45°angled 8” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to an FEA optimized Tractrix® horn, the Pro-180RPC LCR brings incredible versatility and dynamic, powerful Reference Premiere sound to your home theater system.
SPECIFICATIONS
Frequency Range 52Hz - 23kHz +/- 3dB
High Frequency Driver 1" (2.54cm) Titanium Dome Tweeter mated to a FEA optimized square Tractrix® Horn, Angled 45°
Low Frequency Driver 8" (16.51cm) Cerametallic Woofer, Angled 45°
Sensitivity 96 dB @ 2.83V / 1m
Coverage Angle 90° x 90°
Power Handling 50W RMS / 200W Peak
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 15.25” W x 15.25” H x 5.45” D (38.7cm H x 38.7cm W x 13.8cm D)
Mounting 5.68" (14.4cm)
Cutout Dimensions 11.57" (29.4cm)
Product Weight 8.4lbs (3.8kg)

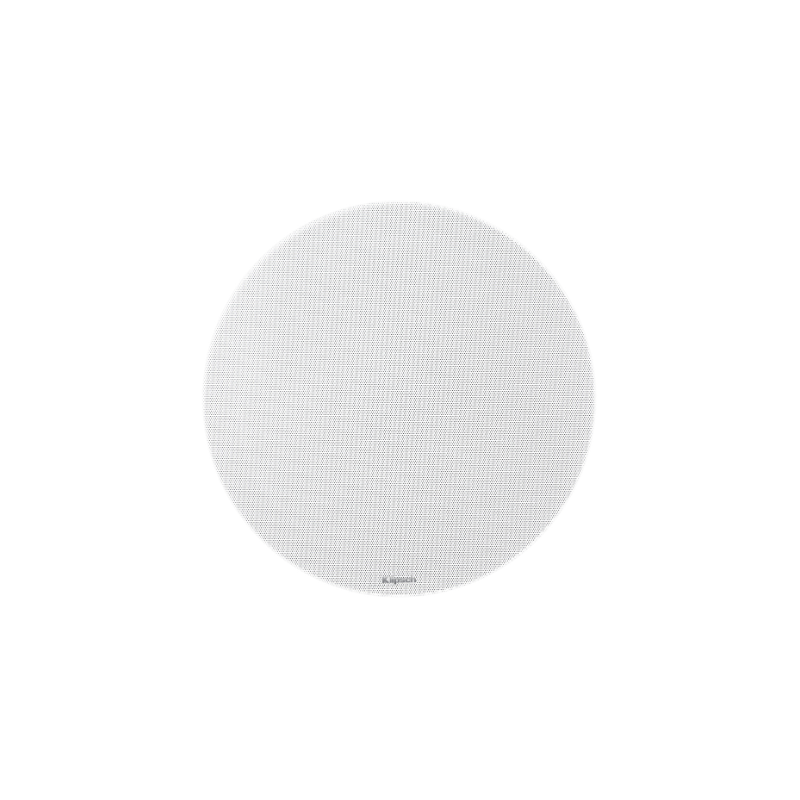

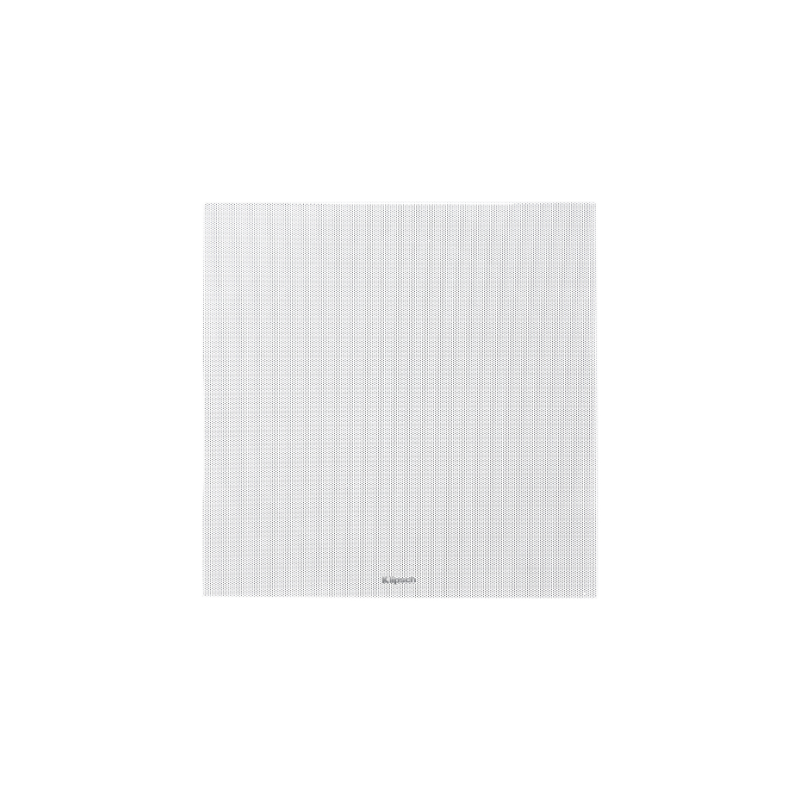

Included Round Grille, Square Grille, Paint Shield
Installation Kit IK-810-C (Sold Separately)
Built From 2017
