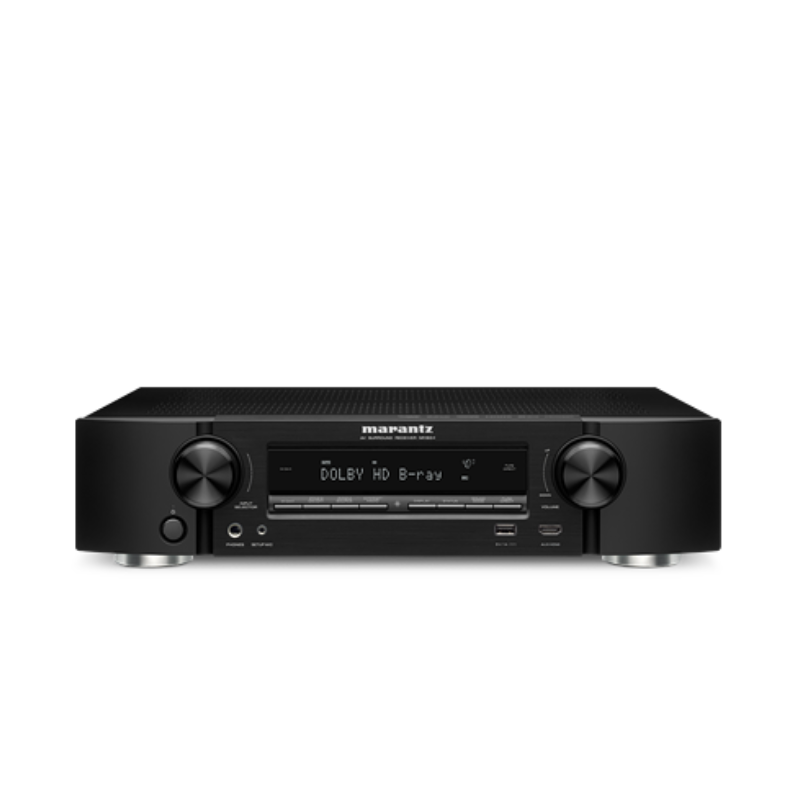

Marantz NR-1604 AV Receiver

Gallery
Description

Description

Number of Channels	7.1 Channels
Audyssey	Audyssey MultEQ, Dynamic EQ, Dynamic Volume
DTS	DTS HD Master Audio, HD High Resolution, ES Discrete/Matrix, Neo:6, 96/24
Dolby	Dolby TrueHD, Digital, Digital Plus, Pro Logic IIz, EX
DSD (SA-CD)/Neural	No / No
SRS	No
Current Feedback Topology	No
Discrete Amplification	Yes
Power Transformer	EI Core
D/A Conversion	192kHz/24-Bit
Digital Signal Processing	Analog Devices ADSP21487
Video Off (Pure Direct)	Yes
Source Direct	Yes
Chassis	Slim Line
Variable X-over	Yes
Video Up-conversion	Yes (Analog Composite/Component Video to HDMI)
Display Off
Auto Calibration by MIC	Audyssey MultEQ
Satellite Radio Ready	No
AM/FM Tuner	AM/FM
Bass Redirection	Yes
Lip-sync (digital audio delay)	Yes
Software Upgradable	Yes (via Internet)

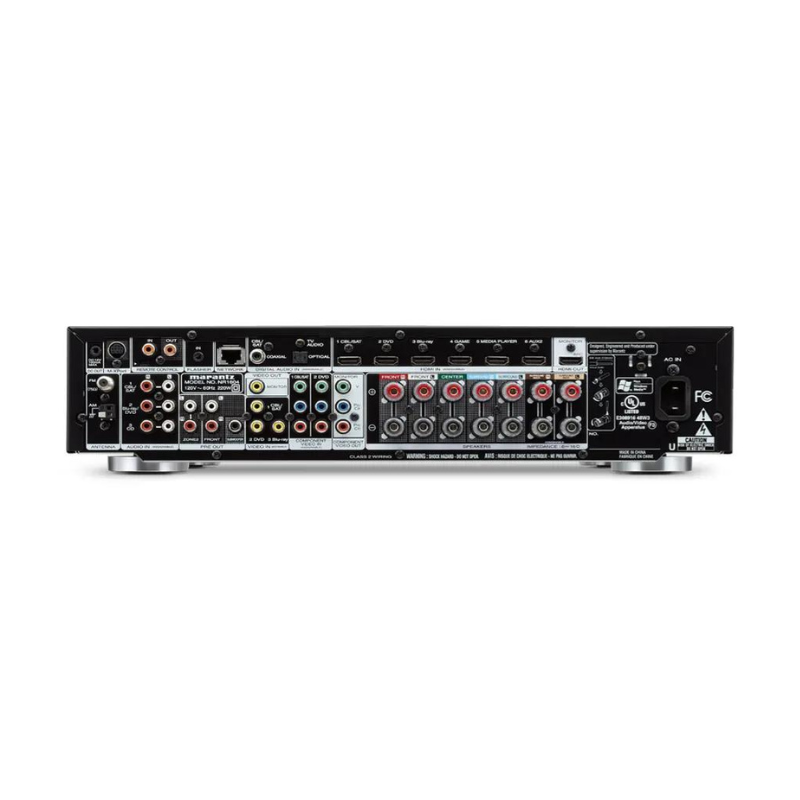

Inputs/Outputs

HDMI In	7 (including front HDMI input)
Component In	2
S-Video In	No
Composite In	3
HDMI Out	1
Component Out	1
S-Video Out	No
Composite Out	1
Analog L&R In	3
Analog L&R Out	No
Digital Optical In	1
Digital Coaxial In	1
Digital Optical Out	No
Digital Coaxial Out	No
Other	No
Pre-Amplifier Out	2.1
Main Amplifier In	No
Multi-Channel In	No
Multi-Room Audio Out	No
Multi-Room Video Out	No
Multi-Room Speaker Out	Yes (Selectable)
Speaker A B	No
Networking	AirPlay, DLNA 1.5 certified Audio/Photo Streaming, Internet Radio, Streaming service capability (Pandora/Spotify/SiriusXM/flickr)
SetUp Wizard	Yes (Setup Assistant)
External control	IP
DC Triggers	1
D-Bus Remote (RC-5) In/Out	Yes
Flasher In/IR Receiver In/Emitter out	1 / No / No
Front Panel A/V Inputs	Front HDMI, USB
Headphone Out	1
AC Outlets (Switched/Unswitched)	No / No

Specifications

Power Output	50W (0.08% @ 8 Ohm), 70W (0.7% @ 6 Ohm)
S/N Ratio	98dB
Freq. Response (Analog In)	10Hz - 100kHz (+/- 3 dB)
Freq. Response (Dig In)	No
Frequency Range	87.5 - 107.9MHz
S/N Ratio (Mono/Stereo)	70/67 dB
Frequency Range	520 - 1710kHz
S/N Ratio	No
Video Freq. Response (Component)	5Hz - 60MHz
Video Freq. Response (Composit, S-Video)	5Hz - 10MHz
Signal to Noise	No

General

Color	Black
Front Panel	Glass-resinforced resin
Remote Control	Simple
Power Requirement	AC120V 60Hz
Dimensions W x H x D (Inchs)	17-21/64" x 4-9/64" x 14-29/64"
Weight (lbs)	18 lbs, 8 oz

MARANTZ NR-1604 - PO

Marantz NR-1604 AV Receiver | Pre-Owned

R 4,999.00

R 17,990.00R 12,991.00 OFF

Select quantity

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

Number of Channels	7.1 Channels
Audyssey	Audyssey MultEQ, Dynamic EQ, Dynamic Volume
DTS	DTS HD Master Audio, HD High Resolution, ES Discrete/Matrix, Neo:6, 96/24
Dolby	Dolby TrueHD, Digital, Digital Plus, Pro Logic IIz, EX
DSD (SA-CD)/Neural	No / No
SRS	No
Current Feedback Topology	No
Discrete Amplification	Yes
Power Transformer	EI Core
D/A Conversion	192kHz/24-Bit
Digital Signal Processing	Analog Devices ADSP21487
Video Off (Pure Direct)	Yes
Source Direct	Yes
Chassis	Slim Line
Variable X-over	Yes
Video Up-conversion	Yes (Analog Composite/Component Video to HDMI)
Display Off
Auto Calibration by MIC	Audyssey MultEQ
Satellite Radio Ready	No
AM/FM Tuner	AM/FM
Bass Redirection	Yes
Lip-sync (digital audio delay)	Yes
Software Upgradable	Yes (via Internet)

Inputs/Outputs

HDMI In	7 (including front HDMI input)
Component In	2
S-Video In	No
Composite In	3
HDMI Out	1
Component Out	1
S-Video Out	No
Composite Out	1
Analog L&R In	3
Analog L&R Out	No
Digital Optical In	1
Digital Coaxial In	1
Digital Optical Out	No
Digital Coaxial Out	No
Other	No
Pre-Amplifier Out	2.1
Main Amplifier In	No
Multi-Channel In	No
Multi-Room Audio Out	No
Multi-Room Video Out	No
Multi-Room Speaker Out	Yes (Selectable)
Speaker A B	No
Networking	AirPlay, DLNA 1.5 certified Audio/Photo Streaming, Internet Radio, Streaming service capability (Pandora/Spotify/SiriusXM/flickr)
SetUp Wizard	Yes (Setup Assistant)
External control	IP
DC Triggers	1
D-Bus Remote (RC-5) In/Out	Yes
Flasher In/IR Receiver In/Emitter out	1 / No / No
Front Panel A/V Inputs	Front HDMI, USB
Headphone Out	1
AC Outlets (Switched/Unswitched)	No / No

Specifications

Power Output	50W (0.08% @ 8 Ohm), 70W (0.7% @ 6 Ohm)
S/N Ratio	98dB
Freq. Response (Analog In)	10Hz - 100kHz (+/- 3 dB)
Freq. Response (Dig In)	No
Frequency Range	87.5 - 107.9MHz
S/N Ratio (Mono/Stereo)	70/67 dB
Frequency Range	520 - 1710kHz
S/N Ratio	No
Video Freq. Response (Component)	5Hz - 60MHz
Video Freq. Response (Composit, S-Video)	5Hz - 10MHz
Signal to Noise	No

General

Color	Black
Front Panel	Glass-resinforced resin
Remote Control	Simple
Power Requirement	AC120V 60Hz
Dimensions W x H x D (Inchs)	17-21/64" x 4-9/64" x 14-29/64"
Weight (lbs)	18 lbs, 8 oz
