Key Features
- Engineered and extensively tuned by a team drawing on more than 35 years of Marantz expertise in CD players
- Innovative Marantz Musical Mastering “MMM-Stream” up-sampling to DSD and filtering
- Custom-designed 1-bit direct “MMM–Conversion” from DSD to analogue
- High-quality analogue output stage with Marantz HDAM-SA3 technology and low impedance output
- In-house developed Marantz SACD/CD mechanism “SACDM-3” designed purely for audio
- Playback of SACD/CD playback and of compilations on CD-ROM and DVD-ROM (audio)
- Asynchronous USB input for hi-res audio up to PCM/DXD 384kHz/32bit and DSD11.2MHz
- Isolation of USB and digital inputs to block noise from connected sources
- Power supply using toroidal transformer
- Dedicated headphone amplifier with all-discrete construction featuring HDAM-SA2
| Extensive and painstaking tuning by sound masters is what powers the exquisite sonic signature of any Marantz product. No component leaves the hands of Marantz Sound Masters until it passes rigorous testing. Only the finest products, thoroughly tested and tenderly handled, make it to your home. Marantz Special Editions are the Marantz way to celebrate the love of music that runs deep in the veins of Marantz sound masters and engineers, exhibited in the artistry and craftsmanship of those special components. Sound Masters will occasionally identify a product with a higher potential than expected and master it with extra unwavering attention to detail, component selection, and listening sessions. The original SA-12 was solely created for the Japanese market and quickly proved to be the next chosen one. European sound engineers combined it with achievements made developing the famous SA-KI Ruby, and thus the SA-12 Special Edition was born. |
 |
At the heart of the SA-12SE is an innovative SACDM-3 transport mechanism, engineered solely for the best possible performance when playing SA-CDs, CDs, and music stored on data discs. This new mechanism promises exceptional sound quality from conventional CD and SA-CD discs and allows listeners to create their own high-resolution audio compilation discs using a computer DVD burner. The SA-12SE supports FLAC files from 44.1kHz to 192kHz and up to 24-bit resolution, DSD2.8MHz, and DSD 5.6MHz, ALAC (Apple Lossless), AIFF, and MP3 files. Creating and playing hi-res disc compilations is as simple as it is enjoyable.
|
CDs, SA-CDs and Beyond

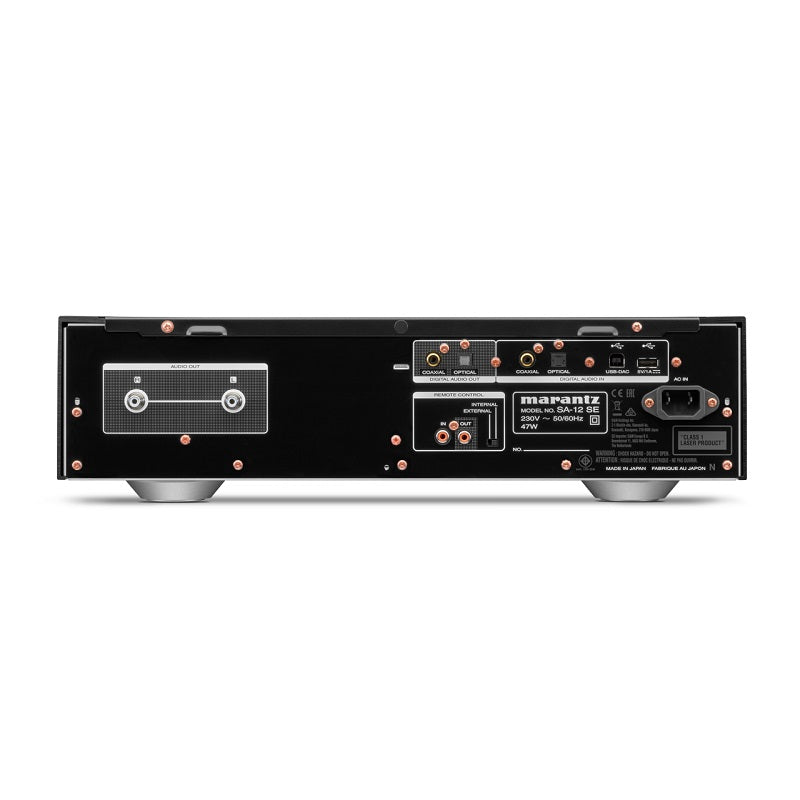

The SA-12SE is a fully functional digital-to-analouge converter for music stored on a home computer via USB-B and features optical and coaxial digital inputs for existing source components. These inputs support files up to 192kHz/24bit. The USB-B asynchronous input for direct connection with a computer is compatible with PCM and DXD music files at up to 384kHz/32bit, as well as DSD2.8MHz, DSD5.6MHz, and DSD11.2MHz.
|
Marantz HDAM Technology
Marantz developed its own discrete circuit boards called Hyper-Dynamic Amplifier Modules, or HDAMs, to replace the chip-based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, HDAMs outperform the regular integrated Op-amps dramatically in Slew Rate and noise level. The result is a much more dynamic, accurate, and detailed sound. Over the years, Marantz has developed different HDAMs to fit the requirements of players and amplifiers. The SA-12SE uses the latest high-grade SA3 version. Combined with optimized circuit design layout and carefully selected components, the SA-12SE provides exceptional sound quality and performance.
|
Marantz Musical Mastering is at the heart of digital audio in the SA-12SE lies DSD. PCM signals are up-converted to DSD at 11.2MHz using the proprietary MMM-Stream converter within the player. The high-frequency signal produced is processed by the unique MMM-Conversion stage, used in place of a conventional DAC, to produce the analogue output. The MMM-Stream section of the process replaces the oversampling filters normally used in digital to analogue conversion and allows the implementation of the Marantz Musical Mastering filtering. Two system clocks of 44.1kHz and 48kHz ensure the most accurate up-conversion of the incoming signal, whether it is from disc or the digital inputs. All available digital signal formats are a multiple of either 44.1 or 48, hence any processing is done without rounding, preventing the loss of important information or creating failures. Sigma Delta Modulation allows a pure DSD-standard signal, a 1-bit stream, to be passed to the conversion section in the form of a very high-frequency stream of pulses. The design of the DSD-to-analogue filter feeds the audio signal into the familiar Marantz HDAM (Hyper Dynamic Amplifier Modules) in the output stage for optimal sound quality.
The power supply of the SA-12SE features a large high current toroidal power transformer with OFC (oxygen-free copper) secondary wires, along with high speed, high current Schottky Barrier Diodes in the rectifier stage for the purest DC voltage output. There are independent power supplies for the analogue and digital circuitry to reduce interference to a minimum.

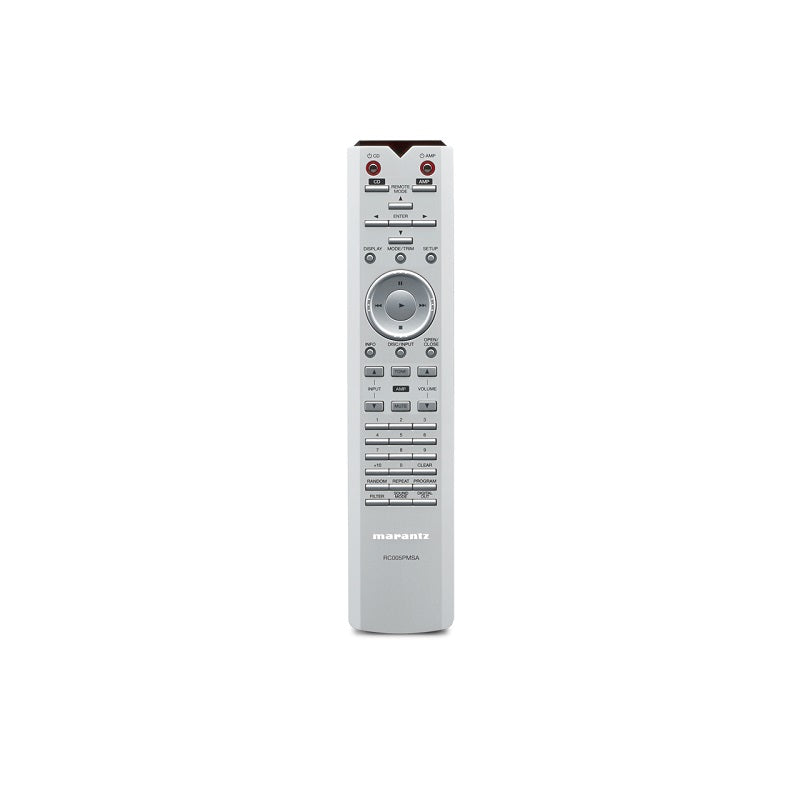

The elegant aluminum top remote control features an intuitive ergonomic layout and is equipped with amplifier control functions to operate both the SA-12SE and the complementary PM-12SE reference class integrated stereo amplifier. Use the integrated remote control input and output jacks to connect the SA-12SE to other compatible Marantz components. An internal/external switch on the rear panel provides additional system control flexibility.
|
Low Noise Fluorescent Display
The deluxe low noise LC display features clear, easy to read alpha-numeric characters and is compatible with CD-Text encoded music discs. The display can be turned off via the display control button on the remote. For enhanced user experience, a bit depth of the input signal is now available on the front display of the SA-12SE. |
Dedicated Headphone Output
Connect your favorite headphones directly to the SA-12SE via the convenient front-panel headphone jack, which also features its own selectable gain control. The headphone circuit is compatible with the widest range of headphone types and lower impedance headphones. |
Like the complementary PM-12SE integrated amplifier, the SA-12SE Super Audio CD player is constructed to the highest standards, with a front panel made from thick, heavy, non-magnetic aluminum to eliminate interference. Single-layer nickel-plated matching copper RCA terminals in the SA-12SE outperform the terminals of competitors and offer an exemplary listening experience.
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the SA-12SE carries on the tradition of delivering a best-in-class listening experience for music and cinema.
SPECIFICATIONS
General
| Metal Front Panel |  |
| Remote Control | RC005PMSA |
| Power Consumption in W | 47 |
| Standby Consumption in W | 0.3 |
| Auto power off | |
| Detachable Power Cable | |
| Maximum Dimensions (W x D x H) in mm | 440 x 419 x 123 |
| Weight in kg | 16.4 |
| Carton Maximum Dimensions (W x D x H) in mm | 557 x 536 x 243 |
| Carton Weight (inc. product) in kg | 19.6 |
| Mechanism | SACD-M3 (METAL) |
| D/A Conversion | Marantz Musical Mastering Conversion + Stream |
| DAC IC | Marantz Musical Mastering Conversion + Stream |
| Digital Filter | DSP (Marantz) |
| Noise Shaper | DSP (Marantz) |
| Low Pass Filter stage | HDAM-SA2, SA3 current feedback |
| Output buffer | HDAM SA3 |
| Headphone amp | HDAM-SA2 current feedback |
| Frequency Response (Cust.) | 2 Hz  50 kHz |
| Dynamic Range (SA) | 109dB |
| Signal to Noise Ratio (SA) | 112dB |
| Total Harmonic Distortion (SA) | 0.0008% |
| Channel Separation (SA) | |
| Frequency Response | 2 Hz 20 kHz |
| Dynamic Range | 98 dB |
| Signal to Noise Ratio | 104 dB |
| Total Harmonic Distortion | 0.000015 |
| Channel Separation | |
Inputs/Outputs
| Analogue Out (Cinch) | 2ch |
| Balanced Out | |
| Digital Optical In / Out | 1 / 1 |
| Digital Coaxial In / Out | 1 / 1 |
| Sample Rate digital In | 192 kHz / 24-bit |
| Gold Plated Cinch | silver/nickel |
| USB Audio (Front) / Made for iPod / Made for iPhone | rear / /
|
| USB-A: FLAC / WAV / AIFF / ALAC / DSD |
/ / / /
|
| USB type B input for PC (rear) Sample Rate USB type B In | |
| Asynchronous mode rear USB | |
| USB type B input for PC (rear) | 384 kHz / 32-bit |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | -> DSD11.2 |
| D-Bus | |
| Headphone Out | |
| Headphone Volume Control | |
Playback
| Program Play (CD / SA-CD) |
/
|
| Repeat | |
| Random Play | |
| Start Sound Mode for SA-CD | |
Other
| Selectable filter: CD / SA-CD / DAC-Mode |
/ /
|
| Marantz Musical Mastering |
(HD) |
| Marantz Musical Mastering Stream | |
| Marantz Musical Mastering Conversion | |
| Separated rectifier circuit for analogue and digital circuitry | |
| Display: Dimmer / Off |
/
|
| Low noise LCD display | |
| 5mm Aluminum top cover | |
Features
| CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC |
/ / / / /
|
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data |
/ / / /
|
| Data Disc Compatibility: DSD / WAV / ALAC | <=5.6 / 192 / 96 |
| DAC operation mode: USB-B / Coax / Optical |
/ /
|
| Asynchronous mode rear USB | |
| Bit-perfect transmission | |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | <=DSD11.2 |
| Signal isolator for DAC Mode operation | |
| HDAM version | HDAM SA2 + HDAM SA3 |
| Power Transformer: Toroidal / El |
/
|
| High-Grade Audio Components | |
| Customised Components | |
| Symmetric circuit layout | |
| Copper plated chassis | |
| Extra metal plate for chassis strengthing | |
| Digital out off / Audio EX Mode |
/
|
| Headphone: Standard / Buffer / Current feedback |
/ / |
