McIntosh MC2301 - 300 Watt Quad Balanced Monoblock Vacuum Tube Amplifi

Description

Description

OVERVIEW

From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier. With an output of 300 Watts, it provides enough high power to drive even the most demanding loudspeaker. And thanks to our patented Unity Coupled Circuit output transformer, this full 300 Watts is available to 2, 4 or 8 Ohm speakers.

The MC2301 is the first McIntosh vacuum tube amplifier to use our Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. As a result, even when amplified to high levels the signal is effectively free of any distortion. Our fuse-less short-circuit protection circuit Sentry Monitor™ disengages the output stage before current exceeds safe operating levels and then resets automatically. Inputs for balanced and unbalanced cables are available to provide flexibility in connecting the rest of your audio system.

The attractive blue meter is flanked by two rows of output vacuum tubes that bring even more visual appeal to the front panel to go along with the knobs and brushed aluminum handles that all effortlessly blend with the polished stainless steel chassis. The MC2301 is well suited for stereo music systems.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS

Power Output per Channel – 300W @ 2, 4 or 8 Ohms

Number of Channels –

Total Harmonic Distortion – 0.5%

S/N below rated output – 117dB

Dynamic Headroom – 1.2dB

Damping Factor – >15 Wideband

Rated Power Band – 20Hz to 20kHz

Frequency Response

+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz

CONTROL

Remote Power Control – Yes

Multi-Channel DB25 Cable – N/A

General Specifications

Circuit Configuration – Quad Balanced, Unity Coupled

Circuit Design – Vacuum Tube

Mono Bridge – No

Mono Parallel – No

Output Type – Unity Coupled Output Transformer

Meters – Yes

Meter Light Switch – Yes

Balanced Input – Yes

Front Panel – 1/2" Glass with handles

Illumination – LED Fiber Optic

Chassis Style – Open Stainless Steel

CONNECTIVITY

Speaker Binding Post Type – Yes, 200 amp, 3-way

Weights & Dimensions

Dimensions W x H x D – 17-3/4" 45.09cm x 12-5/16" 31.27cm including feet x 23" 58.42cm including front panel and cables

Weight – 116 lbs 52.6 kg

Shipping Weight – 141 lbs 63.9 kg

MCINTOSH-MC2301

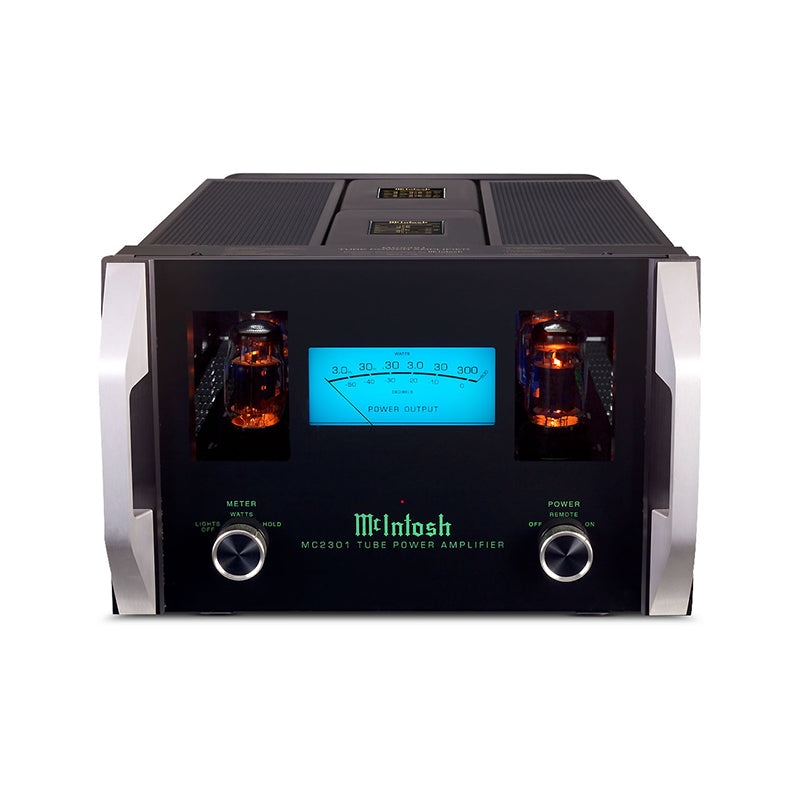

McIntosh MC2301 - 300 Watt Quad Balanced Monoblock Vacuum Tube Amplifier

R 323,990.00

Select quantity

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

OVERVIEW

From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier. With an output of 300 Watts, it provides enough high power to drive even the most demanding loudspeaker. And thanks to our patented Unity Coupled Circuit output transformer, this full 300 Watts is available to 2, 4 or 8 Ohm speakers.

The MC2301 is the first McIntosh vacuum tube amplifier to use our Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. As a result, even when amplified to high levels the signal is effectively free of any distortion. Our fuse-less short-circuit protection circuit Sentry Monitor™ disengages the output stage before current exceeds safe operating levels and then resets automatically. Inputs for balanced and unbalanced cables are available to provide flexibility in connecting the rest of your audio system.

The attractive blue meter is flanked by two rows of output vacuum tubes that bring even more visual appeal to the front panel to go along with the knobs and brushed aluminum handles that all effortlessly blend with the polished stainless steel chassis. The MC2301 is well suited for stereo music systems.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS

Power Output per Channel – 300W @ 2, 4 or 8 Ohms

Number of Channels –

Total Harmonic Distortion – 0.5%

S/N below rated output – 117dB

Dynamic Headroom – 1.2dB

Damping Factor – >15 Wideband

Rated Power Band – 20Hz to 20kHz

Frequency Response

+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz

CONTROL

Remote Power Control – Yes

Multi-Channel DB25 Cable – N/A

General Specifications

Circuit Configuration – Quad Balanced, Unity Coupled

Circuit Design – Vacuum Tube

Mono Bridge – No

Mono Parallel – No

Output Type – Unity Coupled Output Transformer

Meters – Yes

Meter Light Switch – Yes

Balanced Input – Yes

Front Panel – 1/2" Glass with handles

Illumination – LED Fiber Optic

Chassis Style – Open Stainless Steel

CONNECTIVITY

Speaker Binding Post Type – Yes, 200 amp, 3-way

Weights & Dimensions

Dimensions W x H x D – 17-3/4" 45.09cm x 12-5/16" 31.27cm including feet x 23" 58.42cm including front panel and cables

Weight – 116 lbs 52.6 kg

Shipping Weight – 141 lbs 63.9 kg
