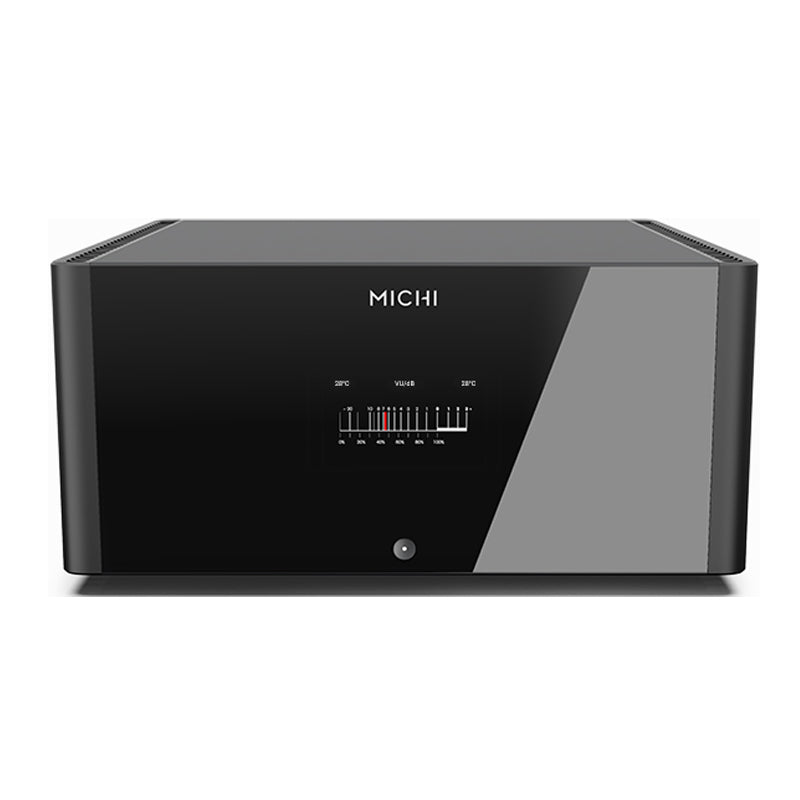

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4-ohm loudspeakers. The M8 is powered by a pair of custom-engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.
To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm, and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and balanced circuit design.
A high-resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control, and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.
SPECIFICATIONS
Dimensions W × H × D -
485 × 238 × 465mm
19" × 9.375" × 18.25"
Front Panel Height - 220mm 8.625"
Power Requirements - 120V, 60Hz
Power Consumption - 1200W
Standby Power Consumption -
Normal: <0.5W
Network Wakeup: <2W
Net Weight - 59.1kg 130.3lbs.
BTU Rating 4Ω, 1/8th power - 3200 BTU/h
Continuous Power Output -
1080W/Ch 8Ω
1800W/Ch 4Ω
Total Harmonic Distortion THD - <0.018%
Frequency Response -
20Hz - 20kHz +0dB, -0.15dB
10Hz - 100kHz +0dB, -0.5dB
Gain - Unbalanced RCA: 34dB
Balanced XLR: 30dB
