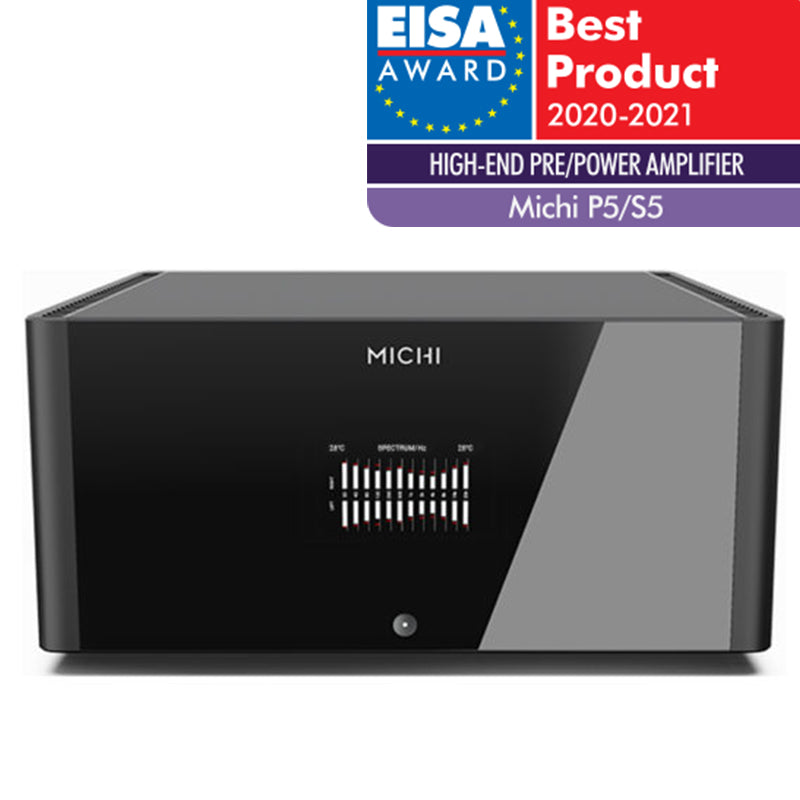

Rotel Michi S5 Stereo Amplifier (Each)
The Michi S5 Stereo Power Amplifier is a best in class linear amplifier delivering 500 watts of Class AB power in 8 ohms and over 800 watts to 4-ohm loads. The dual monoblock architecture is equipped with twin, custom-engineered oversized, in-house manufactured 2,200 Volt Amp toroidal transformers in individual epoxy filled enclosures eliminating noise and vibration. A bank of 4 British patented bulk storage capacitors totaling 188,000uF delivers exceptional bass energy while maintaining precise detail and control to 32 high current output transistors ensuring effortless accuracy of the timing and rhythm under even the most difficult of load conditions.
Audio performance must be engineered from product concept through production. This is evidenced in the S5 as the result of countless hours of engineering design reviews, critical component evaluation, and sonic tuning. Accuracy at its best while delivering on a promise to ensure the audio provides entertainment deserving of the Michi logo.
An elegant industrial design puts the finishing touch on this amplifier with a font panel color display and Michi exclusive custom high current 5-way rhodium-plated binding posts. The included remote control provides easy setup and operation with RS232 and Ethernet connections supporting all popular control systems.
SPECIFICATIONS
Dimensions W x H x D -
485 × 238 × 465mm
19" × 9.375" × 18.25"
Front Panel Height - 220mm 8.625"
Power Requirements - 120V, 60Hz
Power Consumption - 1200W
Standby Power Consumption -
Normal: <0.5W
Network Wakeup: <2W
Net Weight - 59.9kg 132.1lbs.
BTU 4 Ω, 1/8th Power - 3450 BTU/h
Continuous Power Output -
500 W/CH 8Ω
800 W/CH 4Ω
Total Harmonic Distortion - <0.008%
Frequency Response –
20Hz - 20kHz +0dB, -0.15dB
10Hz - 100kHz +0dB, -0.4dB
Signal to Noise Ratio IHF “A” weighted - 120dB
Gain - Unbalance: 28dB
Balance: 24dB
Rotel Michi P5 Control Amplifier (Each)
The Michi P5 Control Amplifier delivers the ultimate performance in audio processing with a full complement of analog and digital source inputs. Over 3 years in the making, every aspect of the P5 has been carefully crafted including the power supply, circuit design and critical component selection to ensure the highest integrity of the audio signal eliminating unwanted noise and distortion.
The Dual AKM 32-bit DACs feed the Class-A preamplifier circuit ensuring detail, accuracy and the highest musical fidelity while maintaining crucial rhythm and timing for all musical genre regardless of your listening style. These circuits are supported by an array of 17 independent voltage regulators driven from 2 custom designed and factory-built toroidal transformers with low ESR smoothing capacitors to deliver ripple-free current to all critical circuits.
Accuracy and detail are essential in reproducing audio and equality important is delivering music that is enjoyable and entertaining. The P5 excels in all aspects building on over 55 years of audio design experience. The bespoke in-house manufacturing facility ensures this preamplifier is built to highest of quality standards allowing it to proudly wear the Michi logo.
Automation and control system integration is easily supported with RS232 and Ethernet connections.
The Michi P5 includes MQA Master Quality Authenticated technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.
SPECIFICATIONS
Dimensions W × H × D -
485 × 150 × 452mm
19" × 6" × 17.75"
Front Panel Height - 132mm 5.25"
Power Requirements - 120V, 60Hz
Power Consumption - 40W
Standby Power Consumption -
Normal: <0.5W
Network Wakeup: <2W
Net Weight - 22.9kg 50.5lbs.
BTU Rating 4Ω, 1/8th power - 87 BTU/h
Total Harmonic Distortion THD - 20Hz–20kHz <0.002%
Frequency Response -
Line Level Inputs: 10Hz - 100kHz ±0.3dB
Digital Inputs: 20Hz - 20kHz ±0.3dB
Phono Input: 20Hz - 20kHz ±0.3dB
S/N Ratio IHF "A" Weighted -
Line Level Inputs: 116dB
Digital Inputs: 100dB
Phono Input: 80dB
