SVS SB-1000 12" Sealed Box 300W Subwoofer (Each)
Small subwoofer cabinets are not conducive to big bass, which presented a challenge for SVS engineers when designing the SB-1000 and its compact 13x13x13-inch enclosure. Refusing to sacrifice performance for size, SVS engineers threw out preconceived notions and designed a subwoofer with massive output and remarkable low-frequency extension, especially relative to its size and price. All without sacrificing accuracy, detail, and musicality.
At first glance, it’s easy to underestimate the impact of the SB-1000 subwoofer based on size alone. But when it erupts to life with deep and hard-hitting bass, there’s no mistaking it’s a bona fide, high-performance subwoofer.
Commanding 12-inch SVS High-Excursion Driver
SVS packed the compact SB-1000 subwoofer with a front-firing 12-inch driver, massive dual ferrite magnets, and FEA-optimized internal motor technology for high output with extremely low distortion. The lightweight cone material of the long-stroke driver reproduces subtle audio tones and massive low-frequency impact with lifelike realism. Durable rubber surrounds ensure long-lasting performance, even when the subwoofer is pushed to its performance limits for extended periods of time. Authoritative and musical, the SB-1000 a perfect option for serious music or home theater lovers.
Powerful and Sophisticated Sledge STA-300D Amplifier
Conservatively rated at 300 watts RMS, 700+ watts peak power, the Sledge STA-300D amplifier maintains precise control of the subwoofer at all drive levels so you can push to reference volumes without distortion. A sophisticated DSP is perfectly tuned to the unique driver and cabinet configuration and its equalization curve is optimized for enhanced transient response and room gain, making the subwoofer sound much bigger than its size. The SB-1000’s ability to start and stop on a dime and stay true to the source material is a performance hallmark normally reserved for much more expensive subwoofers. The advanced DSP engine also allows for fine-tuning of audio playback and easy set-up and integration into any home theater or stereo system.
Sonically Inert and Rigidly Braced Cabinet
Thermal management is critical when dealing with such a powerful amplifier and motor in a compact sealed cabinet, so SVS implemented a unique vented pole piece and efficient high-power voice coil to keep the SB-1000 subwoofer cool without impacting performance or adding noise. The cabinet is rigidly braced and sonically inert so the bass you hear is always effortless and pure, even at the highest drive levels.
Weighing in at an easily movable 27 lbs, the SB-1000 is SVS’s lightest and smallest subwoofer, making its 24Hz to 260Hz (+/- 3dB) frequency response all the more impressive.
SPECIFICATIONS
Subwoofer Specs:
- Premium black ash, piano gloss black, and piano gloss white finish options
- Front-firing 12" driver
- Rigid and strong cabinet construction
- Cloth grille with pin/cup retention system
- Detachable power cord
- Cabinet Dimensions: 13.5" (H) x 13" (W) x 14"(D) (without grille)
- Overall Dimensions: 13.5" (H) x 13" (W) x 14.6"(D) (with grille)
- Weight (unboxed): 27 pounds
- Shipped Dimensions: 19" (H) x 18" (W) x 18" (D)
- Shipped Weight: 34 pounds
Driver Specs:
- SVS 12” high-performance driver
- FEA-optimized motor technology for low distortion
- High-power voice coil for excellent thermal management
- Lightweight Treated Fiber Composite cone for enhanced sensitivity and transient response
- Rubber surround for durability and long-life
- Dual high-grade ferrite magnets
- Vented pole piece for greater cooling and low noise
Amplifier Specs:
- Sledge STA-300D with 300 watts RMS continuous power (720 watts peak dynamic power)
- Efficient and cool-running Class D topology
- 300 watts (720 watts peak dynamic)
- Green standby mode with less than 0.5 watts consumption
- Detachable power cord with main power switch
- RoHS compliant, lead-free construction and world-wide safety certifications
- Auto-On / On switch
- DSP control for accurate response and refined behavior under all operating conditions
- Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections
- Stereo speaker level 5-way binding post input connections
- Continuously variable low pass filter frequency with disable/LFE setting
- Continuously variable volume and phase controls./li>
- Input impedance - 47 kΩ (unbalanced RCA) / 2 kΩ (speaker level)

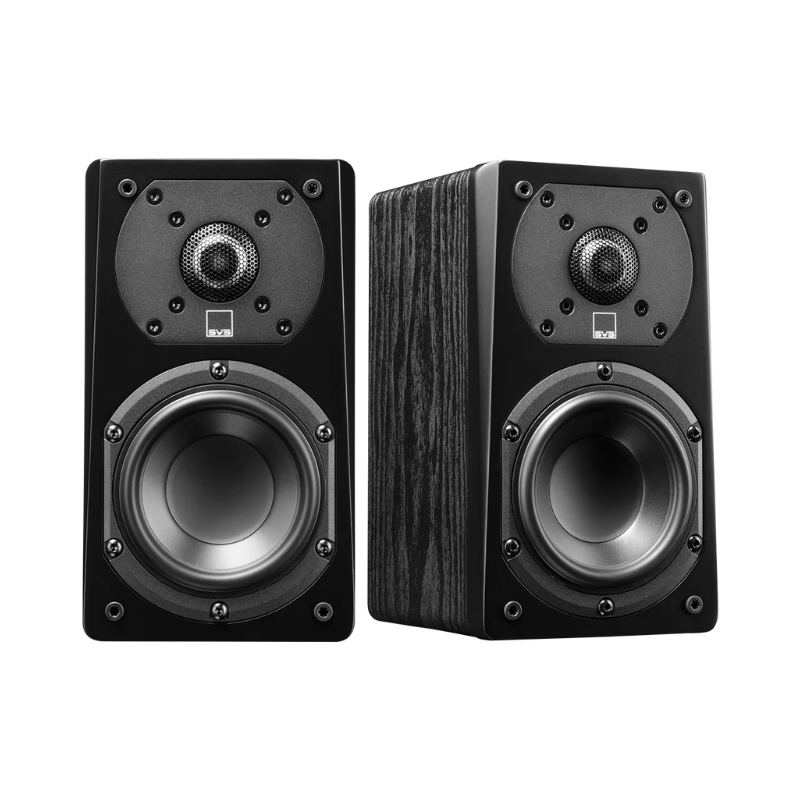

SVS Prime Satellite Bookshelf Speakers (Pair)
From the moment you feel the heft of the Prime Satellite speakers, you understand they’re not the typical compact satellite speaker designed primarily for lifestyle or visual appeal. The Prime Satellite is a bona fide small bookshelf speaker that deftly plays any role in a home theater or audio system, and shatters expectations while doing it.
No satellite speakers have ever offered the level of rigorous design, high-end components and precise build quality in a such a super compact cabinet. The Prime Satellite conveys stunning dynamic impact and convincing detail and refinement well beyond what’s expected from such a small speaker. It easily mounts on any wall or ceiling, or sits on any surface, and is painstakingly voiced to blend with all speakers from the SVS Prime and Ultra Series lines. It’s also neutral sounding enough to integrate seamlessly with speakers from other brands in multi-channel home theater surround sound systems. These factors give the Prime Satellite incredible flexibility to serve in many different roles depending on the layout of your room and the specific needs of your system.
Prime Driver & Tweeter Design
Thoughtfully designed for acoustic excellence, the 4.5-inch mid-woofer is mounted in its own dedicated and completely sealed compartment to ensure smooth, precise and clear midrange and bass output that’s free from coloration. The cone material is extremely light and rigid and maintains a flat frequency response with excellent handling across the foundational mid-range frequencies.
The Prime Satellite speaker’s 1-inch aluminum dome tweeter is light, efficient, and rigid, and plays crystal clear at high volumes. The clarity offers a sense of utter transparency, while offering an ‘airy’ presentation and incredibly unveiled highs so female vocals and dialogue always sound natural, crisp and smooth.
Innovative SoundMatch Crossover Design
Since premium drivers require an equally capable crossover, no expense was spared with the innovative SVS SoundMatch 2-way crossover. Its tapered array is designed to minimize the potential for beaming. This creates an expansive, yet focused and precise soundstage, with accurate frequency response at all listening positions in the room. The precise tuning of the SoundMatch Crossover also ensures pinpoint accuracy of highs, mids, and lows, while maintaining pristine signal purity.
Performance Driven Cabinet Design and Geometry
Tapered edges on the Prime Satellite speaker’s front baffle, known as chamfers, minimize edge diffraction for clear and precise soundstaging. The cabinet’s presence offers a modern industrial feel with acoustic enhancements like shorting rings and a tweeter diffuser which add performance-driven style. All of these advancements are packed into a compact but attractive small bookshelf speaker cabinet, that’s easily mountable anywhere. Available in stunning piano gloss black, piano gloss white or premium black ash finish.
Frequency Response / Acoustic Data:
- Rated bandwidth: 69 Hz - 25 kHz (±3 dB)
- Nominal impedance: 8 ohms
- Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts
Speaker Specs:
- Available finishes: Premium Black Ash, Piano Gloss Black, and Piano Gloss White
- Single set of 5-way binding posts
- 1” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Keyway bracket for easy wall mounting (includes extra bumper pads for wall stand-off)
- Cabinet Dimensions: 8.75" (H) x 4.9" (W) x 6" (D)
- Overall Dimensions: 8.85" (H) x 4.9" (W) x 6.3" (D) (includes grille and bumper feet)
- Shipped Dimensions (2 Pack): 11.7" (H) x 13.9" (W) x 8.9" (D)
- Shipped Dimensions (3 Pack): 11.7" (H) x 20.3" (W) x 8.9" (D)
- Weight Unboxed: 6.5 pounds
- Shipped Weight (2 Pack): 14.7 pounds
- Shipped Weight (3 Pack): 21.7 pounds
Driver Specs:
- 1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy presentation
- Aluminum dome for transient response
- 4.5” Midrange Driver:
- Polypropylene cone for stiffness/mass ratio
- Aluminum shorting ring for low distortion
- Cast ABS-fiberglass composite basket for precision alignment and thermal transfer
- Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
- Crossover:
- 2-way with premium-grade components
- Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
- Outstanding phase coherency and time domain behavior
- Cabinet:
- Acoustically transparent and FEA optimized grilles minimize diffraction
- FEA-optimized cabinet and bracing eliminates resonances
- Chamfered front baffle and flush-mounted drivers reduce diffraction and improve on-axis high frequency response

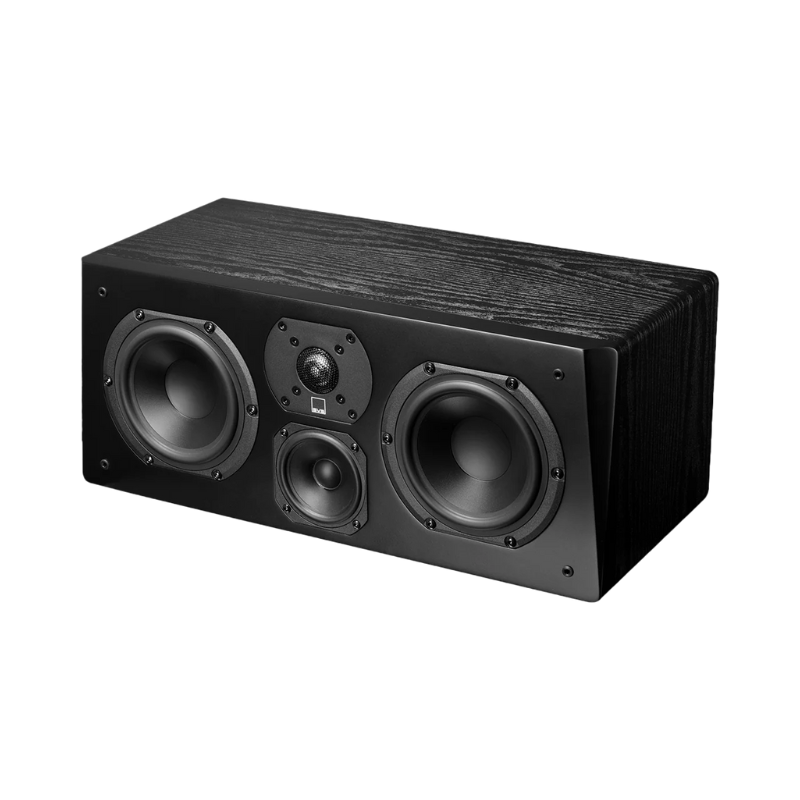

SVS Prime Centre Speaker (Each)
It's rare, if not impossible to find a true 3-way center channel speaker at even close to what the Prime Center costs. Leveraging design elements and technology from the SVS Ultra Center, the Prime Center speaker features premium drivers and crossover components and sophisticated engineering that put it in a class by itself when compared to other center speakers in its class.
Center channel speakers are often considered the most underrated speakers in a home theater because they handle so much of the content yet are designed as afterthoughts by many audio brands. The SVS Prime Center accepts no compromises and anchors the front soundstage of a 5.1 home theater surround sound system or other set-ups with precision and power that complements even the most high-end multi-channel systems.
Prime Driver & Tweeter Design
Since center channel speakers handle a large percentage of the audio content, including dialogue and vocals, and much of that sound falls within the mid-range, SVS engineered an incredibly light and rigid polypropylene cone for the Prime Center speaker’s mid-range driver to provide a flat frequency response and to generate the SPL necessary for stunning in-room dynamics and an expansive front soundstage. The mid-range driver is also housed in its own sub-enclosure within the cabinet to ensure there’s no modulation from the robust woofers.
The 1-inch aluminum dome tweeter is light, efficient, and rigid, playing crystal clear at high volumes for a sense of utter transparency, while offering an ‘airy’ presentation and incredibly unveiled highs so female vocals and dialogue always sound crisp, smooth and clear. The potent 5.25-inch woofers are built on an all-new cast ABS-fiberglass composite basket for precise component alignment and an inert frame without resonances or added harmonics. The light and rigid cone material render a flat frequency response and deliver deep and authoritative low frequency playback. For optimized bass extension the cabinet is rear ported and optimally tuned for dual woofers.
Innovative SoundMatch Crossover Design
Providing the perfectly balanced voicing for the Prime Center speaker is a proprietary SVS SoundMatch crossover that sports premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards. This combination of high-quality components yields lower distortion, tighter tolerances and all around better sound for the critical, dialogue and action-focused front soundstage. The 3-way crossover is uniquely tuned so each driver blends perfectly with each other while offering excellent on and off-axis response and pinpoint spatial imaging for the most convincing audio experience possible.
Performance Driven Cabinet Design and Geometry
Tapered edges on the Prime Center speaker’s front baffle, known as chamfers, minimize edge diffraction for clear and precise soundstaging. The cabinet’s presence is substantial but it does not take over a room visually and offers a modern industrial feel with acoustic enhancements like shorting rings and a tweeter diffuser. All of these advancements are packed into an attractively styled cabinet available in stunning piano gloss black or premium black ash finish.
Frequency Response / Acoustic Data:
- Rated bandwidth: 48 Hz - 25 kHz (±3 dB)
- Nominal impedance: 8 ohms
- Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-200 watts
Speaker Specs:
- Available finishes: Black ash and piano gloss black
- Single set of 5-way binding posts
- Dual 1” wide-flared rear-firing ports
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Cabinet Dimensions: 7.6" (H) x 18.6" (W) x 8.6" (D)
- Overall Dimensions: 7.7" (H) x 18.6" (W) x 9.2" (D) (includes grille and bumper feet)
- Shipped Dimensions: 12.2" (H) x 23" (W) x 13.4" (D)
- Weight Unboxed: 20.2 pounds
- Shipped Weight: 23.3 pounds
Driver Specs:
- 1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy presentation
- Aluminum dome for transient response
- 3.5” Midrange Driver:
- Polypropylene cone for stiffness/mass ratio
- Cast ABS-fiberglass composite basket for precision alignment and thermal transfer
- Vented voice coil former minimizes air compression artifacts
- Dual 5.25” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for stiffness/mass ratio
- Aluminum shorting ring for low distortion
- Cast ABS-fiberglass composite basket for precision alignment and thermal transfer
- Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
- Crossover:
- 3-way with premium-grade components
- Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
- Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)
- Cabinet:
- Separate sealed midrange enclosure improves sound quality
- Chamfered front baffle and flush-mounted drivers reduce diffraction
- FEA-optimized cabinet and bracing eliminates resonances

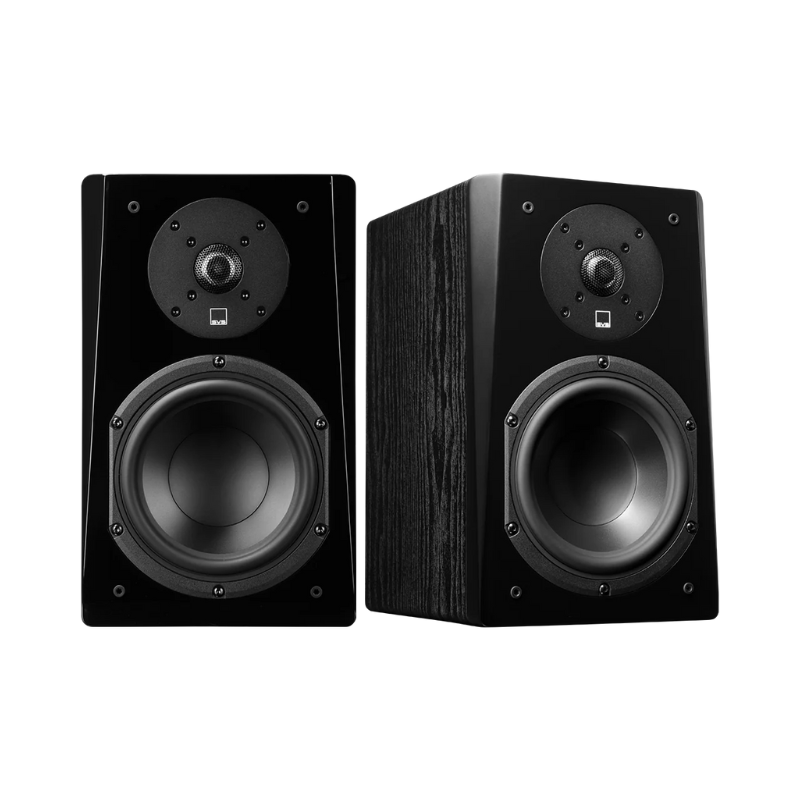

SVS Prime Bookshelf Speakers (Pair)
The Prime Bookshelf speakers are sonic overachievers on all levels. Stunningly dynamic, pinpoint accurate and utterly transparent, they deftly serve as reference monitor loudspeakers in a two-channel system, or as high performance front, center, or side/rear surround speakers in a multi-channel home theater.
Borrowing engineering and design cues from the acclaimed Ultra Series and embodying all the traits of a truly high-end speaker, the Prime Bookshelf speakers convey accurate spatial imaging, throw an expansive soundstage and deliver uncompromising fidelity throughout the frequency spectrum. The effortless low frequency extension, commanding but detailed midrange and airy, unveiled highs far exceed expectations of other speakers in its class. Even the cabinet geometry and internal bracing are optimized for uncompromised audio playback and complemented by stunning piano gloss and black ash finishes.
Prime Driver & Tweeter Design
Thoughtfully designed for acoustic excellence, the Prime Bookshelf speaker’s 6.5-inch woofer is mounted in its own dedicated and completely sealed compartment to ensure smooth, precise and clear midrange and bass output that’s free from coloration. The cone material is extremely light and rigid and maintains a flat frequency response with excellent handling across the foundational mid-range frequencies. Low frequency extension is shockingly deep and effortless considering the cabinet size and the Prime Bookshelf speaker can hit reference volume with amazing clarity, no distortion and headroom to spare.
The Prime Bookshelf speaker’s 1-inch aluminum dome tweeter is light, efficient, and rigid, and plays crystal clear at high volumes. The clarity offers a sense of utter transparency, while offering an ‘airy’ presentation and incredibly unveiled highs so female vocals and dialogue and high pitched sound effects and musical content always sound crisp, smooth and natural.
Innovative SoundMatch Crossover Design
Since premium drivers require an equally capable crossover, no expense was spared with the innovative SVS SoundMatch 2-way crossover. Its tapered array is designed to minimize the potential for beaming. This creates an expansive, yet focused and precise soundstage, with accurate frequency response at all listening positions in the room. The precise tuning of the SoundMatch Crossover also ensures pinpoint accuracy of highs, mids, and lows, while maintaining pristine signal purity.
Performance Driven Cabinet Design and Geometry
Tapered edges on the Prime Bookshelf speaker’s front baffle, known as chamfers, minimize edge diffraction for clear and precise soundstaging. The cabinet’s presence offers a modern industrial feel with acoustic enhancements like shorting rings and a tweeter diffuser which add performance-driven style. All advancements are packed into a compact but attractive cabinet, that’s easily mountable anywhere, and available in stunning piano gloss black or premium black ash finish.
Frequency Response / Acoustic Data:
- Rated bandwidth: 48 Hz - 25 kHz (±3 dB)
- Nominal impedance: 8 ohms
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts
Speaker Specs:
- Available finishes: Black ash and piano gloss black
- Single set of 5-way binding posts
- 1.7” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Cabinet Dimensions: 13.2" (H) x 8" (W) x 9.4" (D)
- Overall Dimensions: 13.3" (H) x 8" (W) x 10.3" (D) (includes grille and bumper feet)
- Shipped Dimensions (2 Pack): 17.6" (H) x 22.4" (W) x 14.4” (D)
- Weight: 15.5 pounds
- Shipped Weight (2 Pack): 34.7 pounds
Driver Specs:
- 1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy presentation
- Aluminum dome for transient response
- 6.5” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for stiffness/mass ratio
- Aluminum shorting ring for low distortion
- Cast ABS-fiberglass composite basket for precision alignment and thermal transfer
- Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
- Crossover:
- 2-way with premium-grade components
- Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
- Outstanding phase coherency and time domain behavior
- Cabinet:
- Acoustically transparent and FEA optimized grilles minimize diffraction
- FEA-optimized cabinet and bracing eliminates resonances
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis high frequency response
