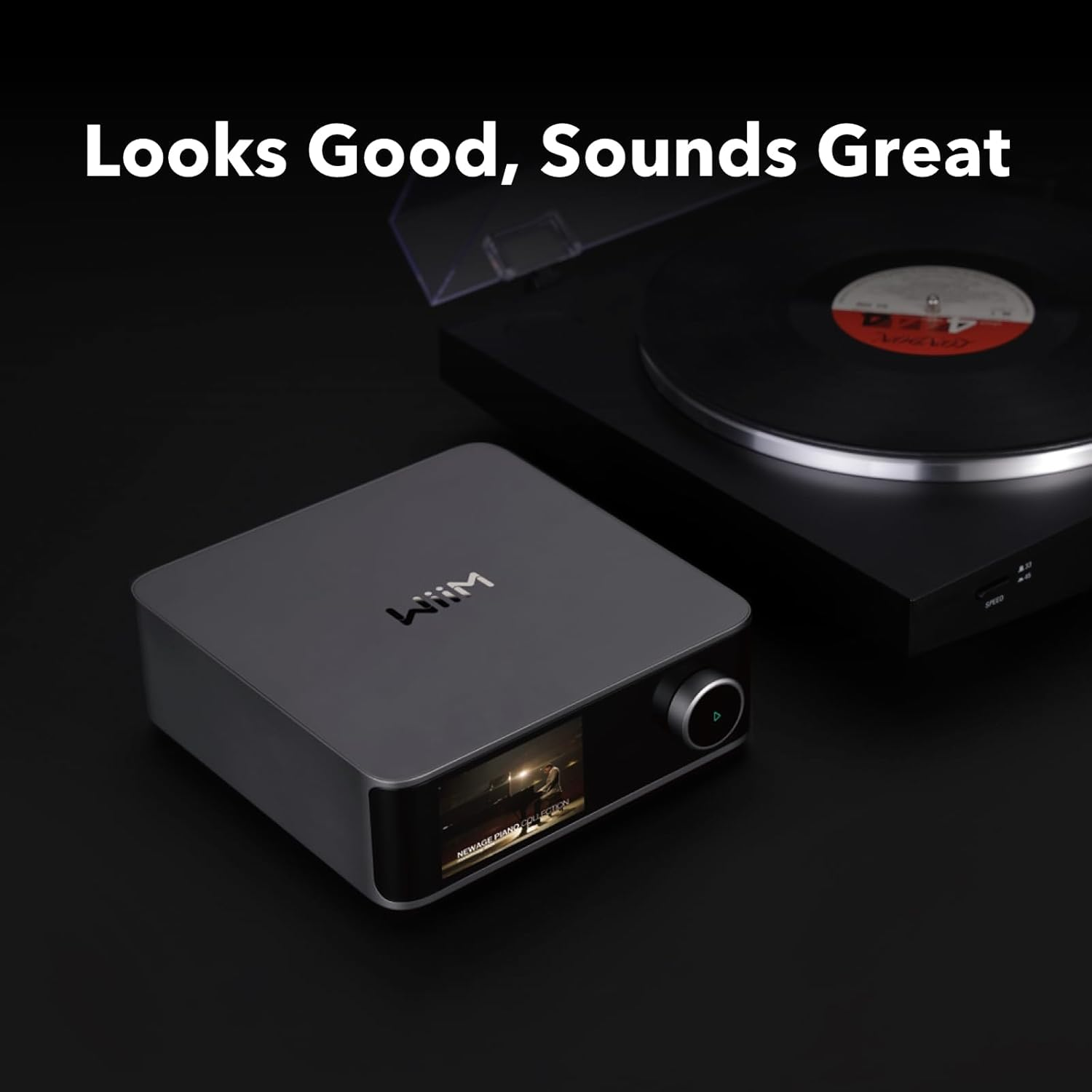

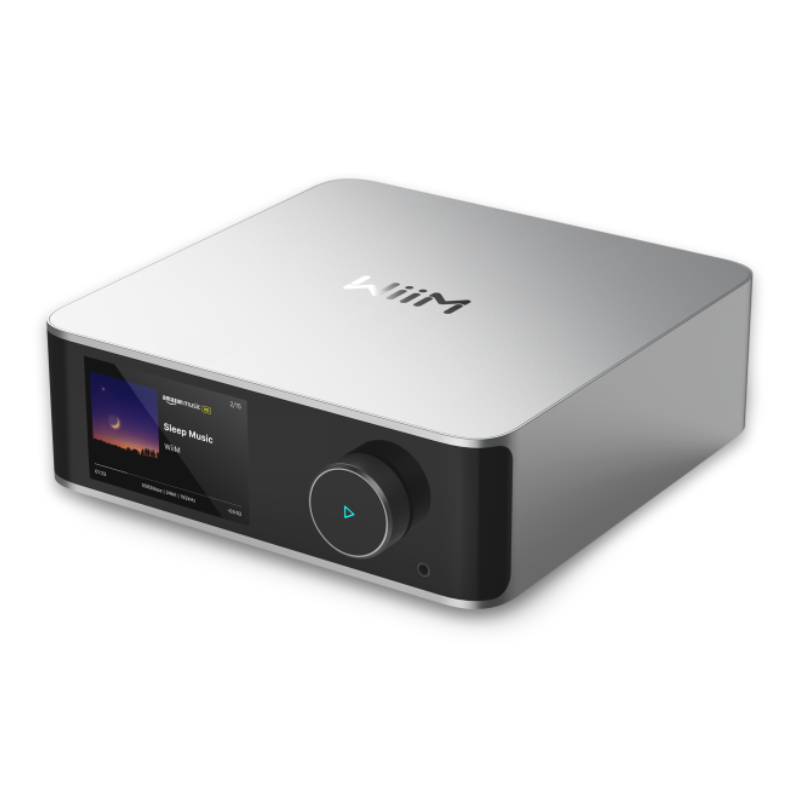

Looks Good, Sounds Great: The WiiM Ultra redefines your audio experience with its sleek aluminum design and premium components. This all-in-one music streamer boasts a ESS ES9038 Q2M DAC, a vibrant 3.5” touchscreen, state-of-the-art Wi-Fi 6E, and Bluetooth 5.3 connectivity. Engineered for excellence, it delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121dB, making it a perfect addition to any sound system.

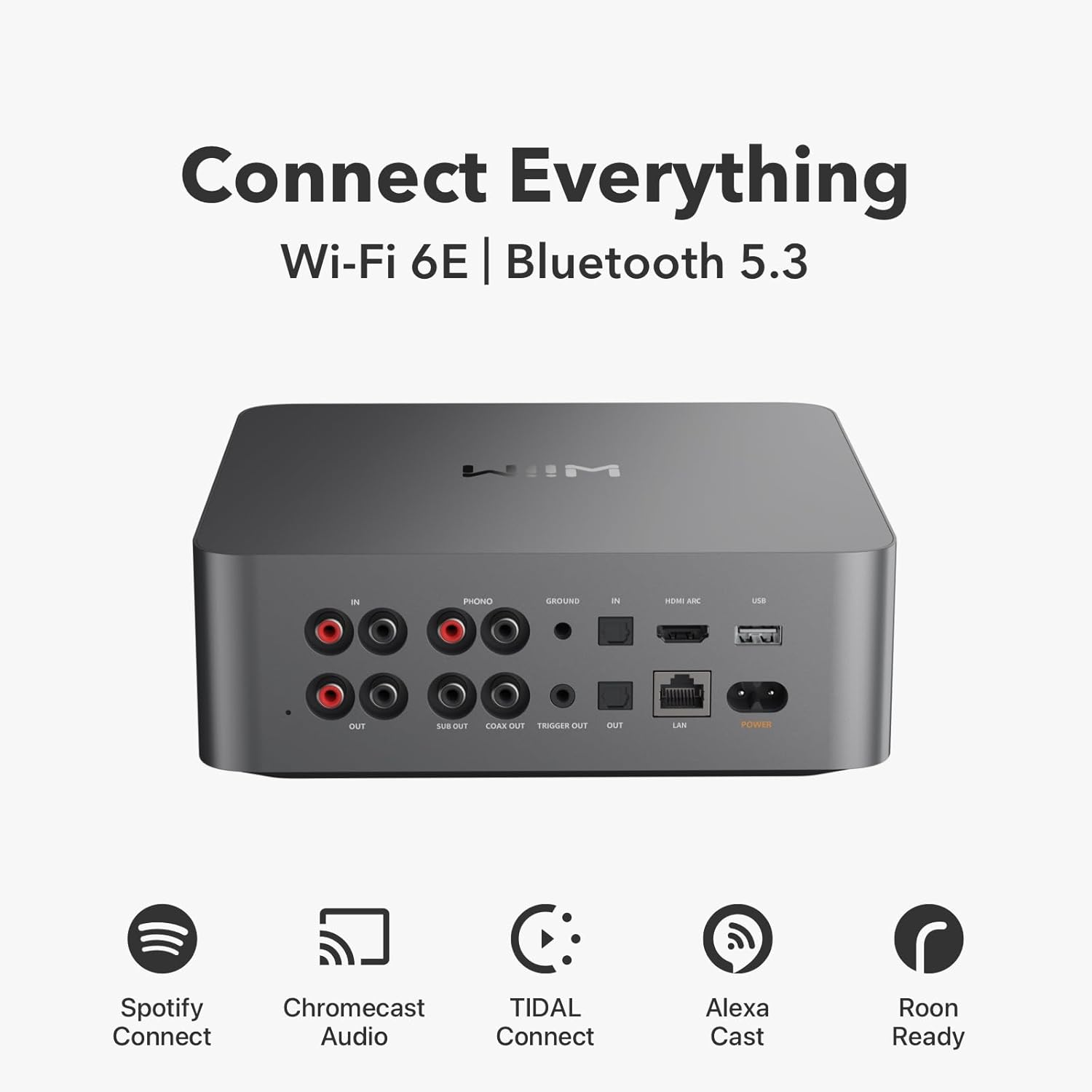

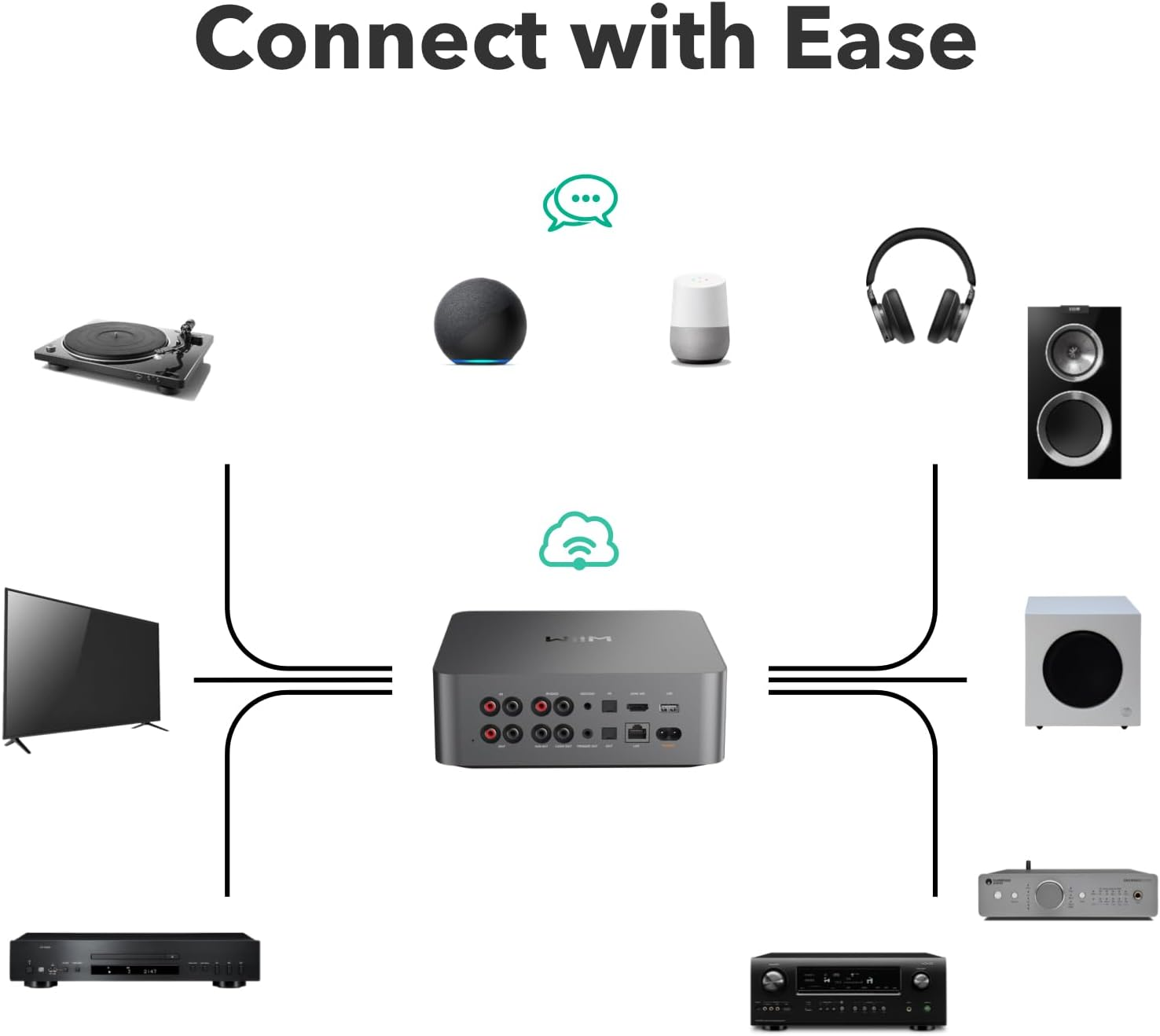

Versatile Connectivity Options: The WiiM Ultra offers versatile audio integration with its wide array of connection options. It features USB, Optical, Coaxial, RCA, a dedicated headphone output; HDMI ARC, and inputs for RCA, Phono, and Optical. It seamlessly integrates with both digital and analog sources, offering unparalleled flexibility for any audio setup.

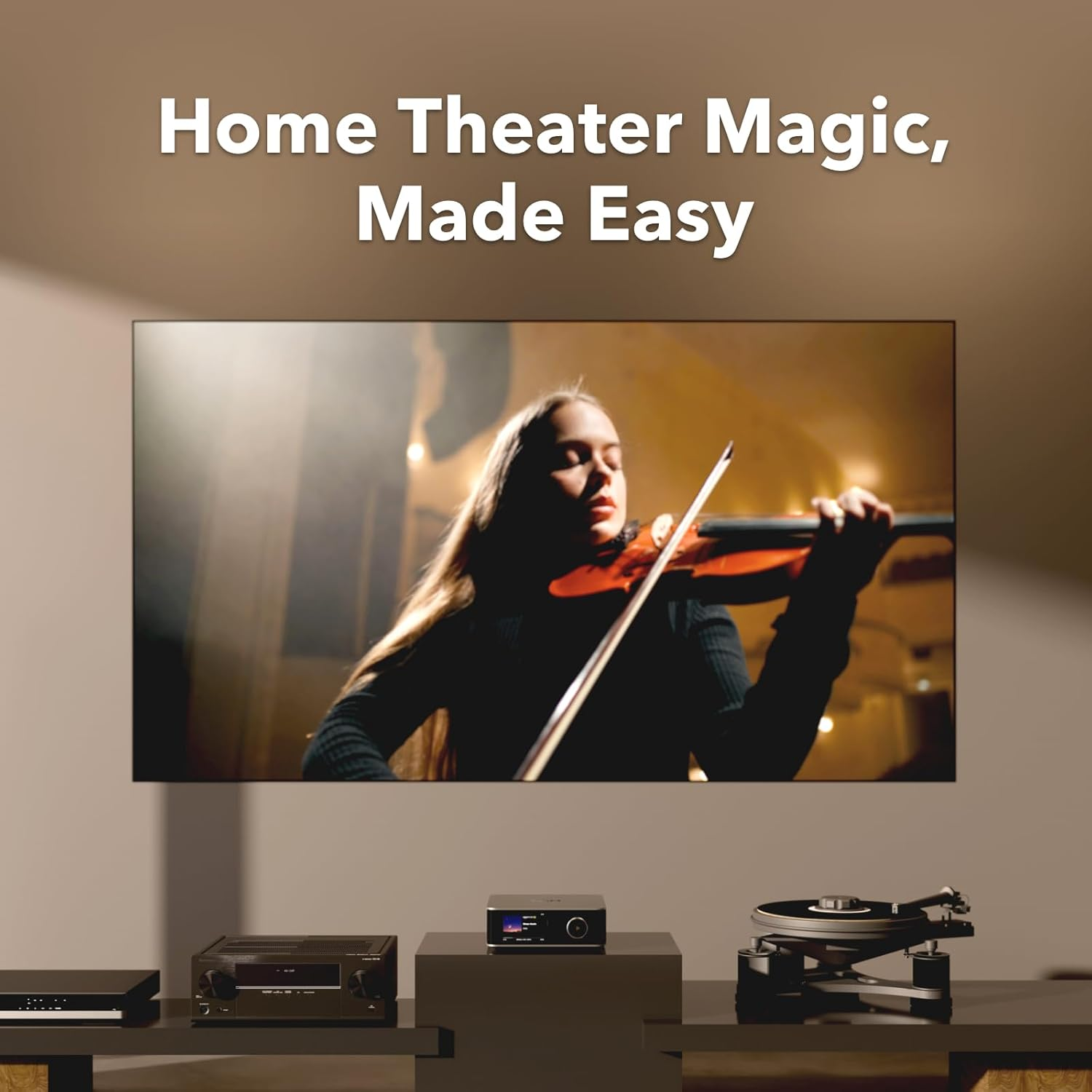

Home Theater Magic, Made Easy: Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.

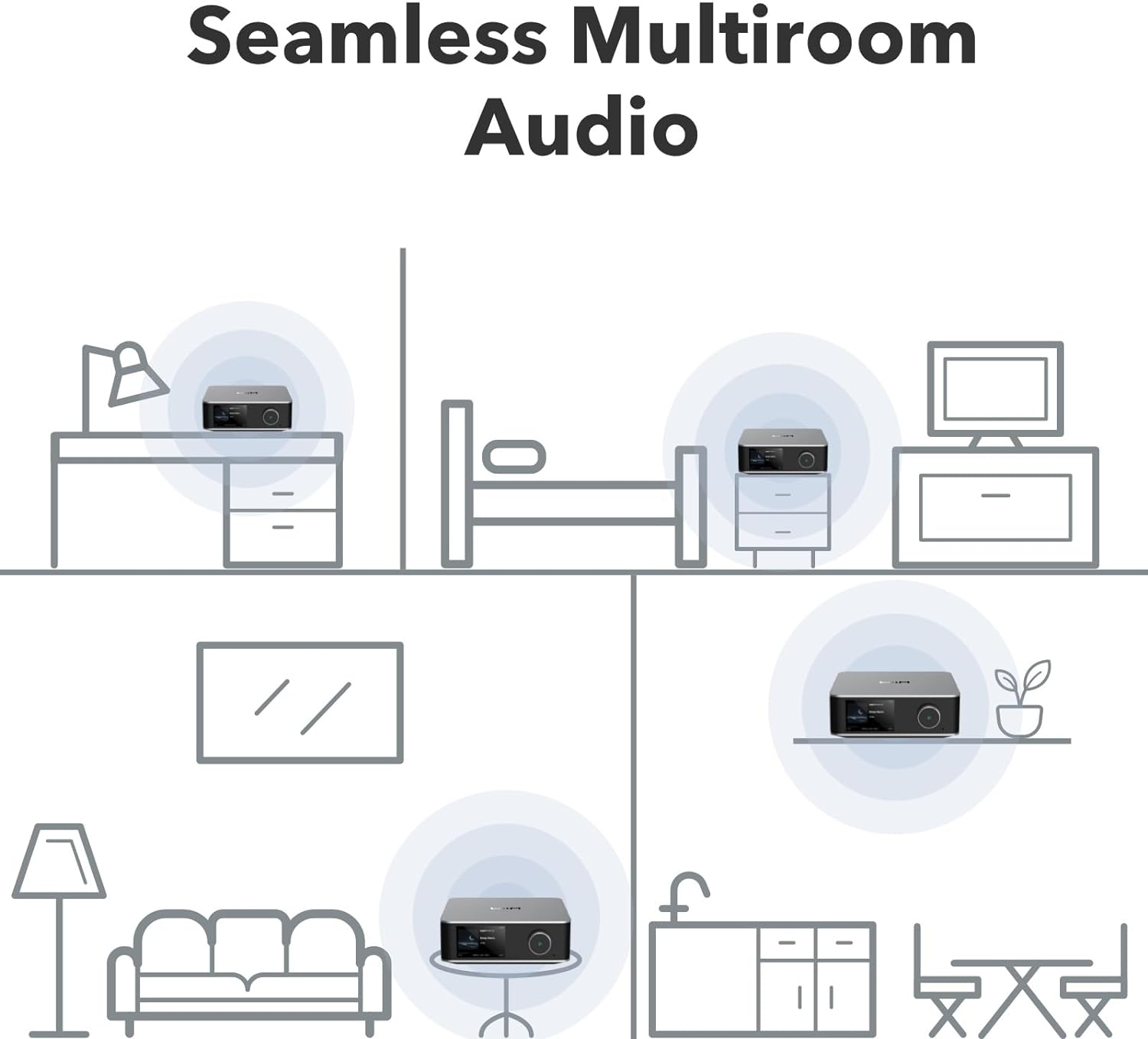

Seamless Multiroom Audio: Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favourite tunes, set alarms, and customize settings, all from one central hub.
Hi-Res Sound Shaped by You: Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.
Specifications
Dimensions and Weight
Dimensions：8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm)
Weight：(3.13 lbs) 1.42 kg
Glass-covered 3.5" vibrant touchscreen display:
Displays App widgets, large album pictures, playback control, playing queue presets, EO, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode

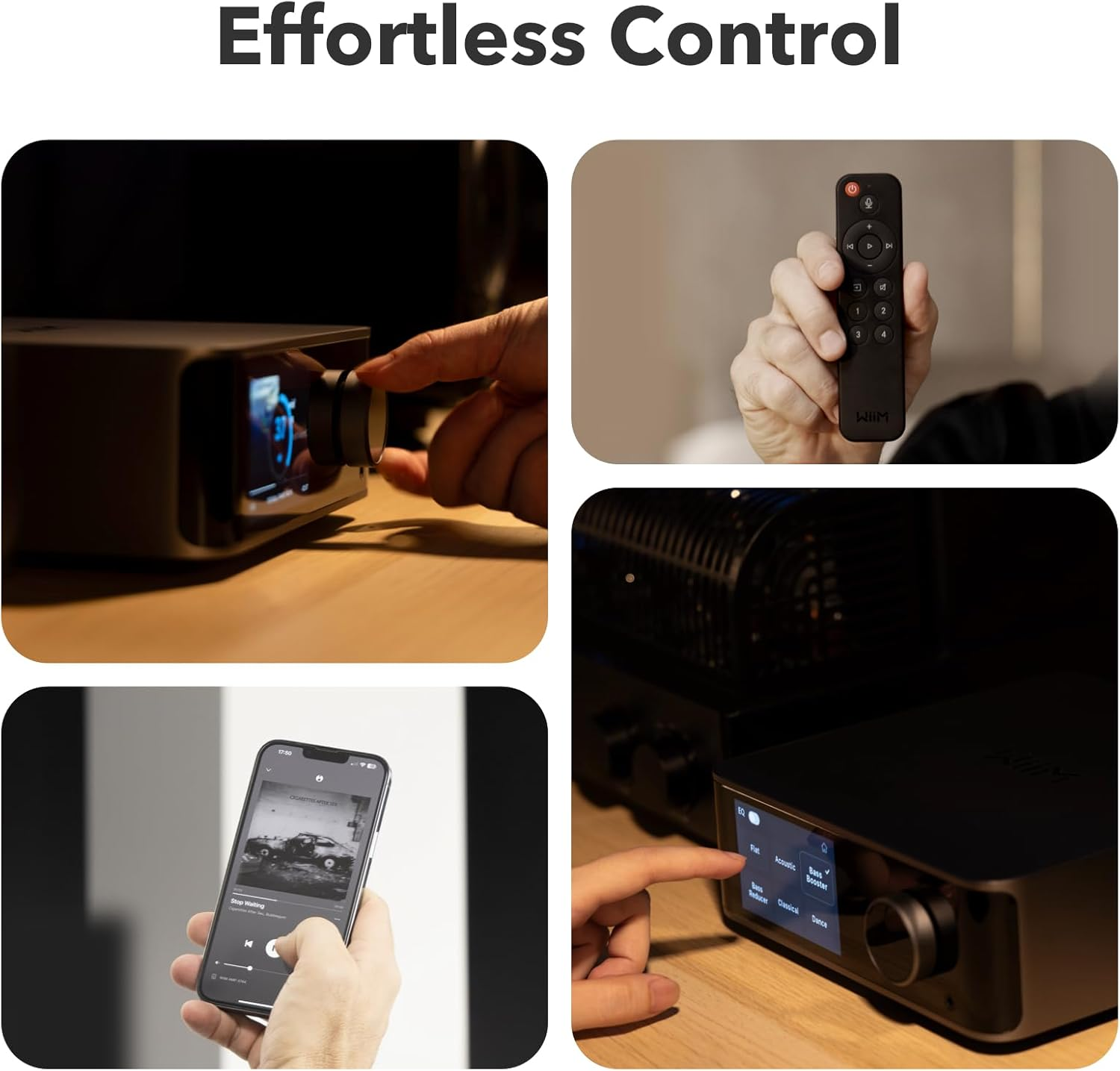

Controls
Volume knob, play/pause, setup, and more
4 Color RGBW LED indicates the device status
HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz
RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bit
Wireless to another BT, DLNA receiver
Performance
Line out：
Maximum output: 2.1V RMS
SNR: 121 dB (A-wt)
THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
FR curve:+/-0.05 dB
Headphone out：
300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)
24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ
Subwoofer Output
Comprehensive bass management
Adjustable crossover frequency, level, phase, and latency.
Power Supply
100-240V AC input, 50/60 Hz, 0.5A Max
Network
Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
10M/100 Mbps LAN
Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.
Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.
Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Squeezelite
