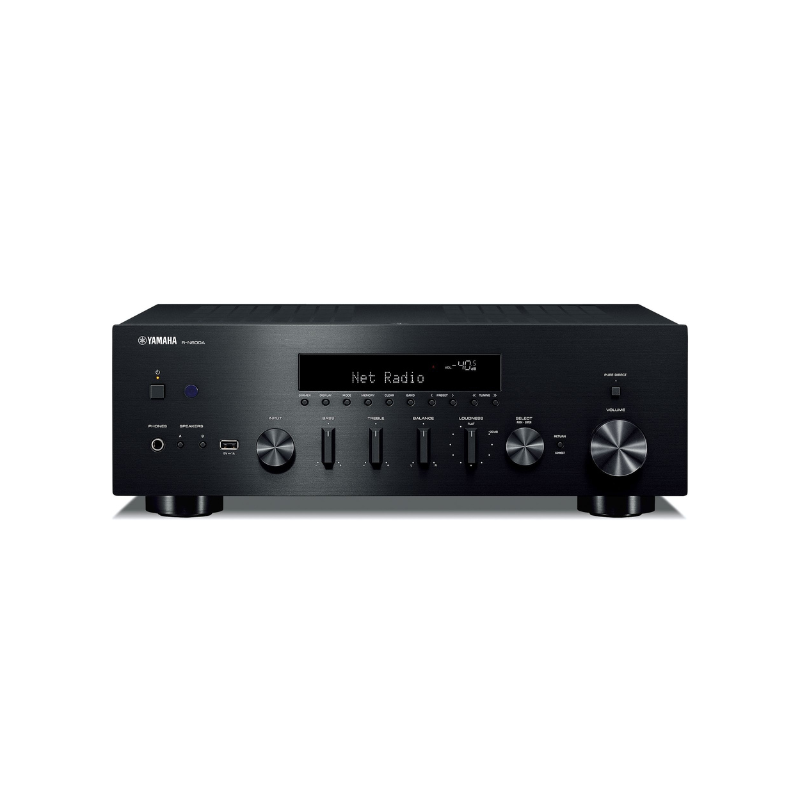

Yamaha R-N600A Network Receiver (Each)
ENJOY HI-FI SOUND WITH ALL YOUR MUSIC
The R-N600A Network Receiver gives you full listening enjoyment of an exceptionally wide variety of music content, including your favorite streaming services, high-resolution sound sources, and even vinyl records—all with Hi-Fi sound. The Yamaha high-quality sound reproduction and design is inherited from a long technological expertise in Hi-Fi. This receiver delivers sophisticated sound and appearance for a total listening experience that's a step above the rest.
TRUE SOUND
Yamaha is the only audio brand in the world that manages every facet of sound, from its creation to the moment it graces your ears. Simply close your eyes, and you won't just hear the music - you'll experience the unparalleled sensation of being genuinely closer to the artist.
OUTSTANDING AUDIO REPRODUCTION
Yamaha boasts over 60 years of history as an audio brand. The technology in the R-N600A comes directly from our legendary Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology). This faithfully maintains the integrity of the audio by combining a meticulously symmetrical left / right circuit layout, signal directness and a chassis equipped with the special resin frame “Art Base” that absorbs and blocks unnecessary vibration.
HIGH-PRECISION, HIGH-PERFORMANCE
The R-N600A uses the renowned SABRE ES9010K2M 384kHz, 32-bit DAC (from ESS technology) to deliver superior S/N performance. Combined with our original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.
MAXIMUM SOUND PURITY
Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.
R-N600A
Receiver / Integrated Amplifier
Network section File Format MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
Wi-Fi Yes
Bluetooth Yes (SBC / AAC)
AirPlay Yes
Rated Output Power [20 Hz-20 kHz 0.07 % THD] 80 W+80 W (8 ohms) 60 W + 60 W (4 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms) 105 / 125 / 150 / 175 W
Frequency Response 10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ 0±0.5 (Pure Direct ON)
Signal-to-Noise Ratio (CD) 100 dB (Pure Direct ON)
Audio In / Out Phono, CD, line1, line2, line3
Digital Input Optical1, Optical2, Coaxial1, Coaxial2
HDMI(ARC) No
Phono Input Yes
USB Input Yes (For USB storage device)
Ethernet Yes
Headphone Out Yes
Subwoofer Out Yes
Control (Trigger) Out No
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) 3 µV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo) 65 dB / 64 dB
Pure Direct Yes
ToP-ART Yes
Standby Power Consumption 0.2 W (Network standby on/ Wi-Fi connection 2.0 W)
Dimensions (W x H x D) 17-1/8" x 6" x 15-3/8" (with antenna up: 17-1/8" x 8-7/8" x 15-3/8")
Weight 21.6 lbs
SVS Ultra Evolution Nano Bookshelf Speaker (Pair)
The Culmination of Sonic Obsession.
SVS Ultra Evolution Nano represents the culmination of SVS breakthroughs in driver design, component materials, and cabinet architecture, married with a relentless passion for audio excellence. The science of sonic perfection in harmony with a love of convincing and immersive sound.
Capable of highly engaging and detailed sound with bold dynamics and bass you would expect from a much larger speaker, Ultra Evolution Nano delivers audiophile sound and versatile placement options. Perfect as a stereo pair in a small to medium sized room or as front LCR or surround speaker in a home theater.
Never has this fusion of design elements existed in a single speaker. Time aligned cabinet geometry, diamond coated aluminum dome tweeters, organic cellular lattice diffuser, and other advancements embody an uncompromising approach to speaker design.
These innovations are brought to life with painstaking anechoic and real-world measurement and voicing. This final bit of artistry places Ultra Evolution Nano among the highest fidelity compact speakers ever created.
Our mission has always been to ignite a passion for transcendent music and home theater experiences by rendering the truest sonic playback.
The joy of pristine clarity, absolute transparency, stunning dynamics, and effortless bass for more people than ever. SVS Ultra Evolution Nano deeply connects you to the emotion of sound.
Inspired Design, Reference Performance.
Time Aligned Cabinet Geometry
Curved front baffle aligns the acoustic center ofthe tweeter and wooferon a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.
Maximizes phase coherence for more convincing and immersive soundstage with pinpoint accuracy and imaging.
Diamond Coated Aluminum Dome Tweeter
Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.
This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.
The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.
Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize the listening “sweet spot.”
5.25" Glass Fiber Composite Mid-Woofer
Superb stiffness to mass ratio conveys stunning dynamics with flawless tonal accuracy, and deep, accurate bass.
------
Specifications:
Frequency Response / Acoustic Data:
- Frequency Response: 44Hz to 40kHz (+/-3 dB)
- Nominal impedance: 6 ohms.
- Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
- Recommended amplifier power: 20 – 150 watts
Speaker Specs:
- Bookshelf Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Gold-plated 5-way binding posts
- 1.6” wide-flared rear-firing port
- Cloth grille with magnetic retention system
- Elastomer stick-on bumper feet
- Cabinet Dimensions: 12.2” (H) x 7.48” (W) x 9.21” (D) / 310mm (H) x 190mm (W) x 223.9mm (D)
- Overall Dimensions: 12.36” (H) x 7.48” (W) x 9.57” (D) / 314mm (H) x 190mm (W) x 243mm (D)
- Shipped Dimensions (Pair): 12.2” (H) x 25.4” (W) x 16.9” (D) / 310mm (H) x 646mm (W) x 429mm (D)
- Weight Unboxed: 13.5 pounds / 6.1 kgs
- Shipped Weight: 31.0 pounds / 14.1 kgs
Driver Specs:
1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.
5.25” Woofer:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
- Tweeter-to-Woofer crossover: 1.9 kHz
Cabinet:
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage..
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
- Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
